Accelerator Pedal Module Removal/Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the APP sensor connector (A).

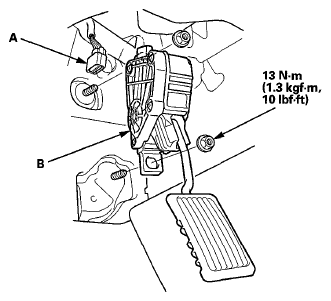

    Fig 1: APP Sensor Connector And Accelerator Pedal Module With Torque Specifications
    G06422718Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the accelerator pedal module (B).
    NOTE: The APP sensor is not available separately. Do not disassemble the accelerator pedal module.
  3. Install the parts in the reverse order of removal.
