Interface Dial Removal/Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Put on gloves to protect your hands.
  • Take care not to scratch the dashboard and related parts.
  • Lay a shop towel under the parts when working on them to protect the face panel from scratches or other damage.
  1. Remove the audio unit (see AUDIO UNIT REMOVAL/INSTALLATION ).
  2. Remove the self-tapping screw and harness cover (A).
    Fig 1: Identifying Self-Tapping Screw And Harness Cover
    G06420745Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the screws, and disconnect the interface dial 13P connector (A).

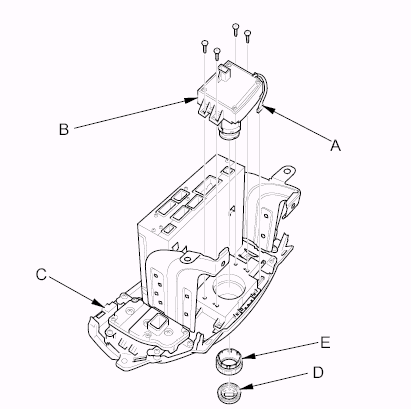

    Fig 2: Identifying Interface Dial 13P Connector
    G06420746Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the interface dial (B) from the audio-navigation switch panel (C).
    NOTE: Apply pressure slowly and steady until the knob (D) and dial (E) pops off.
  5. Install the interface dial in the reverse order of removal.
