Front HFL-Navigation-ANC/Active Sound Control Microphone

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.

Receives voice commands and transmits them to the navigation unit or HandsFreeLink control unit. The microphone unit consist of two microphones. One microphone is combined with the front ANC/active sound control microphone. The microphones detects each of the driver's voice and passenger's voice separately.

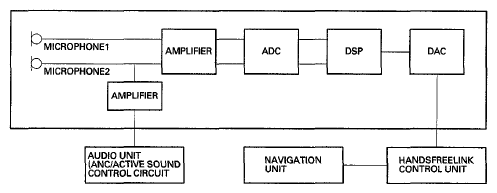

Fig 1: Front HFL-Navigation-ANC/Active Sound Control Microphone Communication Diagram
G06420621Courtesy of AMERICAN HONDA MOTOR CO., INC.
