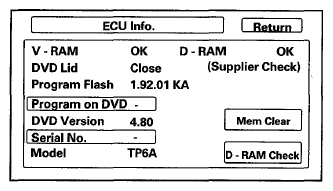

ECU Info
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
The diagnosis checks for problems in the naviagation unit. When you initiate this diagnosis, the navigation unit may freeze or delay up to a minute while the diagnosis runs.
NOTE:
Do not try to end this diagnosis by pressing OK or Mem clear before it finishes, otherwise the system may reboot.
- If V-RAM or D-RAM is NG, replace the navigation unit (see NAVIGATION UNIT REMOVAL/INSTALLATION ).
- DVD lid displays the state of DVD Lid of navigation unit.
- Program Flash: Displays the version of the navi software in memory.
- Program on DVD: If displayed, this value represents the version of the navigation software on the navigation DVD.
- DVD version represents the database version on the DVD. You can find this information in either the Setup Screen Version, or in the Diagnostic Screen Version.
- Serial No. should be the same as the serial number found on the underside of the navigation unit. You need this number to obtain the security code from the Interactive Network (iN) system.
- Mem Clear is used to initialize the memory in the navigation ECU, and to delete the old data program completely. Do not select Mem Clear except when using the DownLoad procedure in Version. Selecting this will clear the customer's settings, personal information, GPS orbital data, and anything else stored in memory.
