Voice Control Switch Test
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the voice control switch (see REARVIEW CAMERA REMOVAL/INSTALLATION ).

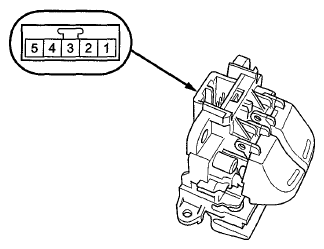

- Measure the resistance between terminals No. 2 and No. 4 in each switch position according to the table.RESISTANCE REFERENCE
Position Resistance No button pressed About 10 kΩ Navigation TALK button pressed About 2.2 kΩ Navigation BACK button pressed About 652 Ω - If the resistance is not as specified, replace the voice control switch (see REARVIEW CAMERA REMOVAL/INSTALLATION ).
