XM Receiver Removal/Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the passenger's rear side trim panel (see REAR FLOOR COVER HANDLE ).
  2. Remove the bolt (A) and loosen the bolts (B), then pull out the XM receiver (C).

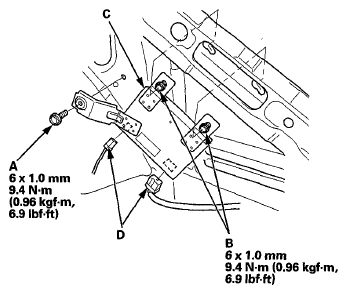

    Fig 1: XM Receiver And Bolt With Torque Specifications
    G06424419Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the connectors (D), and remove the XM receiver.
  4. Install the XM receiver in the reverse order of removal.
  5. If you are replacing the XM reciever, register the new XM reciever I.D number with XM Radio by calling 800-852-9696.
