HandsFreeLink Control Unit Removal/Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Tell the customer they need to write down all phone numbers stored in the HFL and the navigation imported phone book as there is no way to transfer the information in the original HandsFreeLink control unit to a new HandsFreeLink control unit.

Remove the driver's dashboard lower cover (see DRIVER'S DASHBOARD LOWER COVER REMOVAL/INSTALLATION ).
Remove the mounting screws, then disconnect the connector (A) from the HandsFreeLink control unit (B) and remove it.

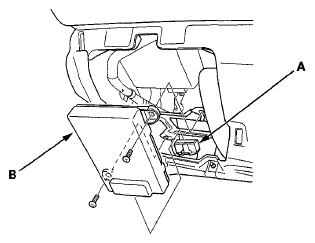

Fig 1: Identifying HandsFreeLink Control Unit, Connector And Mounting Screws
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the HandsFreeLink control unit in the reverse order of removal.
After replacing the HandsFreeLink control unit, tell the customer:
- They need to pair their phones to the system.
- They need to set up their system preferences.
