Exploded View

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.

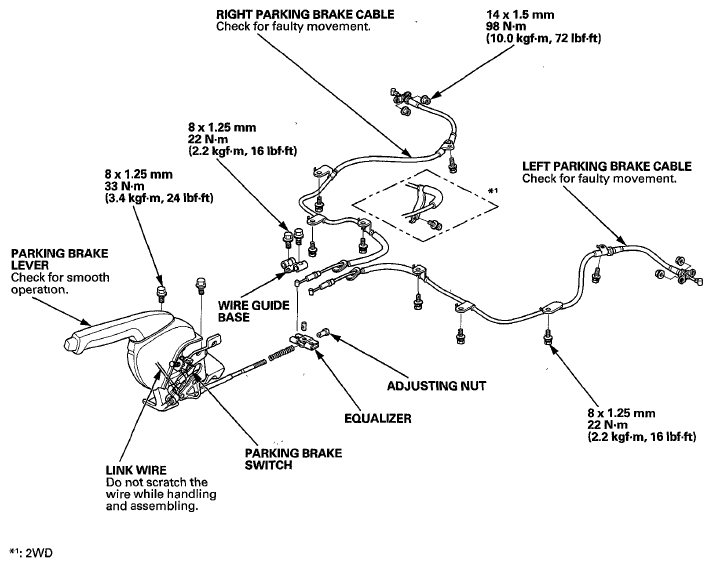

Fig 1: Exploded View Of Parking Brake Cable With Torque Specification

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE:

The parking brake cables must not be bent or distorted. This will lead to stiff operation and premature cable failure.
Refer to the EXPLODED VIEW as needed during this procedure.

Release the parking brake lever fully.
Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
Remove the wire guide base (A), then disconnect the parking brake cables (B) from the equalizer (C).

Fig 2: Wire Guide Base, Parking Brake Cables And Equalizer With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the parking brake cable from the parking brake lever assembly (see PARKING BRAKE SHOE REPLACEMENT ).
Remove the parking brake cable mounting nuts from the backing plate (A), and remove the parking brake cable (B).

Fig 3: Backing Plate And Parking Brake Cable With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
2WD: Remove the heat shield (A).

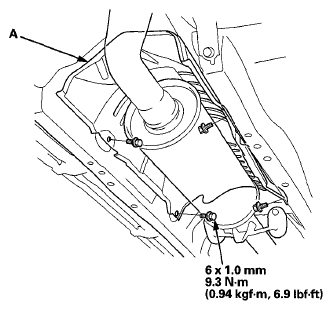

Fig 4: Heat Shield With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the parking brake cable grommets, and pull out the parking brake cable from the body floor.
Remove the parking brake cable mounting hardware, then remove the parking brake cable.
Install the parking brake cable in the reverse order of removal, and note these items:
- Be careful not to bend or distort the cable.
- Adjust the parking brake (see PARKING BRAKE INSPECTION AND ADJUSTMENT ). Apply the parking brake firmly 10 times then adjust it again.
