Power Mirror Switch Test/Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.

Remove the power window master switch (see POWER WINDOW MASTER SWITCH REPLACEMENT ).
Disconnect the 13P connector from the power mirror switch (A).

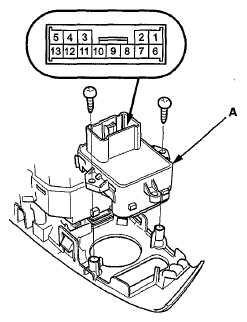

Fig 1: Identifying Power Mirror Switch And 13P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each switch position according to the table.

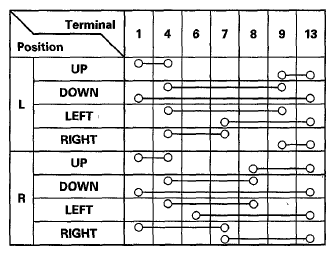

Fig 2: Terminals Continuity Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, remove the screws and replace the power mirror switch.
Install the switch in the reverse order removal.
