P0722: Problem in Output Shaft (Countershaft) Speed Sensor Circuit (No Signal Input); DTC P0723: Output Shaft (Countershaft) Speed Sensor Intermittent Failure

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • Before you troubleshoot, record all freeze data and any on-board snapshot with the HDS, and review General Troubleshooting Information (see GENERAL TROUBLESHOOTING INFORMATION ).
  • This code is caused by an electrical circuit problem and cannot be caused by a mechanical problem in the transmission.
  1. Turn the ignition switch to ON (II).
  2. Clear the DTC with the HDS.
  3. 4WD: Raise the vehicle on a lift, make sure it is securely supported, and allow all four wheels to rotate freely. 2WD: Block the rear wheels, and raise the front of the vehicle, make sure it is securely supported, and allow the front wheels to rotate freely, or raise the vehicle on a lift.
  4. Start the engine. Disable the VSA by pressing the VSA OFF button. Run the vehicle in D at speeds over 12 mph(20 km/h). Compare the Input Shaft (Mainshaft) Speed and the Output Shaft (Countershaft) Speed with the HDS in the A/T Data List. Slow down and stop the wheels.

    Are the speeds about the same?

    YES  -Intermittent failure, the system is OK at this time.

    NO  -Go to step 5.

  5. Turn the ignition switch to LOCK (0).
  6. Disconnect the output shaft (countershaft) speed sensor connector.
  7. Turn the ignition switch to ON (II).
  8. Measure the voltage between output shaft (countershaft) speed sensor connector terminal No. 1 and body ground.
    Fig 1: Measuring Voltage Between Output Shaft Speed Sensor Connector Terminal 1 And Body Ground
    G06266820Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there about 5 V?

    YES  -Go to step 9.

    NO  -Repair open in the wire between PCM connector terminal A21 and the output shaft (countershaft) speed sensor, then go to step  19.

  9. Measure the voltage between output shaft (countershaft) speed sensor connector terminal No. 2 and body ground.
    Fig 2: Measuring Voltage Between Output Shaft
    G06266821Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there about 5 V?

    YES  -Go to step 10.

    NO  -Go to step 15.

  10. Turn the ignition switch to LOCK (0).
  11. Jump the SCS line with the HDS.
  12. Disconnect PCM connector A (31P).
  13. Check for continuity between PCM connector terminal A8 and body ground, and between PCM connector terminal A9 and body ground
    Fig 3: PCM connector terminal A8 and body ground, and between PCM connector terminal A9 and body ground
    G00510123Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there continuity?

    YES  -Go to step 14.

    NO  -Repair an open in the wire between PCM connector terminal (A8, A9) and the body ground (G101), or repair poor body ground G(101).

  14. Check for continuity between output shaft (countershaft) speed sensor connector terminal No. 3 and body ground.

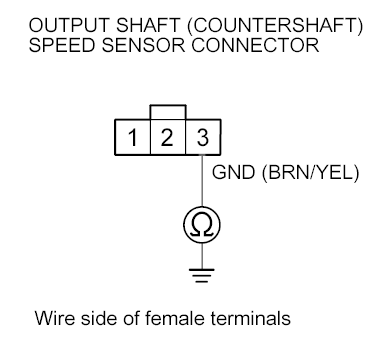

    Fig 4: Check for continuity between output shaft (countershaft) speed sensor connector terminal No. 3 and body ground
    G00510143Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there continuity?

    YES  -Replace the output shaft (countershaft) speed sensor. Refer to Output Shaft (Countershaft) Speed Sensor Replacement , then go to step 19.

    NO  -Repair an open in the wire between the output shaft (countershaft) speed sensor and body ground (G101), or repair poor body ground (G101).

  15. Turn the ignition switch to LOCK (0).
  16. Jump the SCS line with the HDS.
  17. Disconnect PCM connector A (31P).
  18. Check for continuity between output shaft (countershaft) speed sensor connector terminal No. 2 and body ground.

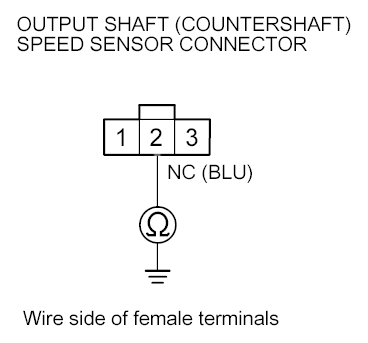

    Fig 5: Check for continuity between output shaft (countershaft) speed sensor connector terminal No. 2 and body ground.
    G00510147Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there continuity?

    YES  -Repair a short to body ground in the wire between PCM connector terminal A18 and the output shaft (countershaft) speed sensor, then go to step 19.

    NO  -Repair an open in the wire between PCM connector terminal A18 and the output shaft (countershaft) speed sensor, then go to step 19.

  19. Reconnect all connectors.
  20. Turn the ignition switch to ON (II).
  21. Clear the DTC with the HDS.
  22. Start the engine. Disable the VSA by pressing the VSA OFF button. Run the vehicle in D at speeds over 12 mph(20 km/h). Compare the Input Shaft (Mainshaft) Speed and the Output Shaft (Countershaft) Speed with the HDS in the A/T Data List. Slow down and stop the wheels.

    Are the speeds about the same?

    YES  -Troubleshooting is complete.

    NO  -Go to step  1, and recheck.
