Gearshift Mechanism Replacement

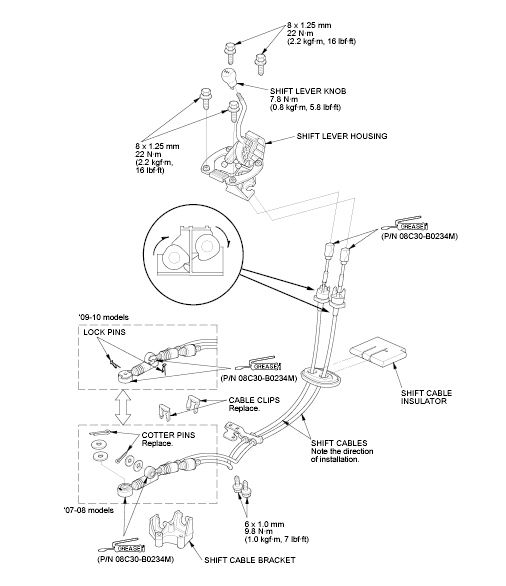

Fig 1: Identifying Gearshift Mechanism Replacement Components With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
