Radio Receiver: Installation

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL NO. 2 RADIO BRACKET
1. Install the No. 2 radio bracket with the 4 bolts.
  Torque: 2.5 N*m (25 kgf*cm, 22 in.*lbf)

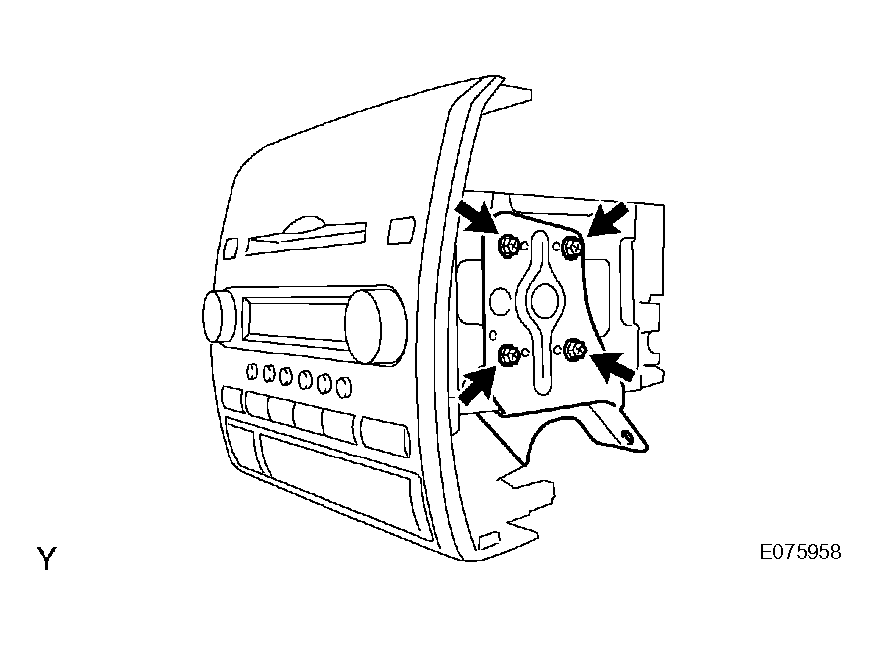

  Fig 1: Installing No. 2 Radio Bracket With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 RADIO BRACKET
1. Install the No. 1 radio bracket with the 4 bolts.
  Torque: 2.5 N*m (25 kgf*cm, 22 in.*lbf)

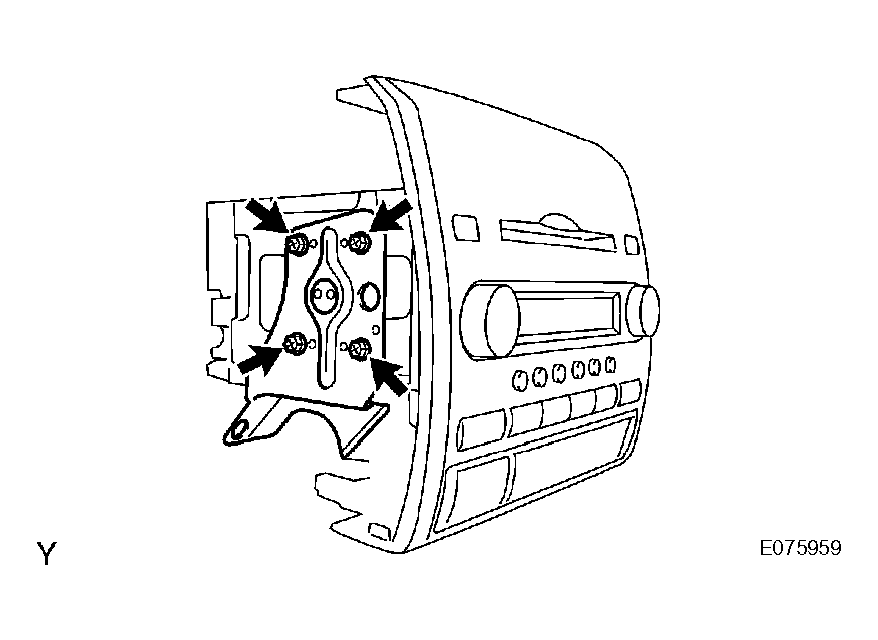

  Fig 2: Installing No. 1 Radio Bracket With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL RADIO RECEIVER ASSEMBLY
1. Connect the connector.
2. Install the radio receiver assembly with bracket with the 4 bolts.
  Torque: 2.5 N*m (25 kgf*cm, 22 in.*lbf)
INSTALL AIR CONDITIONING CONTROL ASSEMBLY (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)

Fig 3: Installing Radio Receiver Assembly With Bracket With Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
