Radio Receiver: Removal

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
REMOVE AIR CONDITIONING CONTROL ASSEMBLY (See REMOVAL )
REMOVE RADIO RECEIVER ASSEMBLY
1. Remove the 4 bolts.
2. Disconnect the connector and remove the radio receiver assembly with bracket.

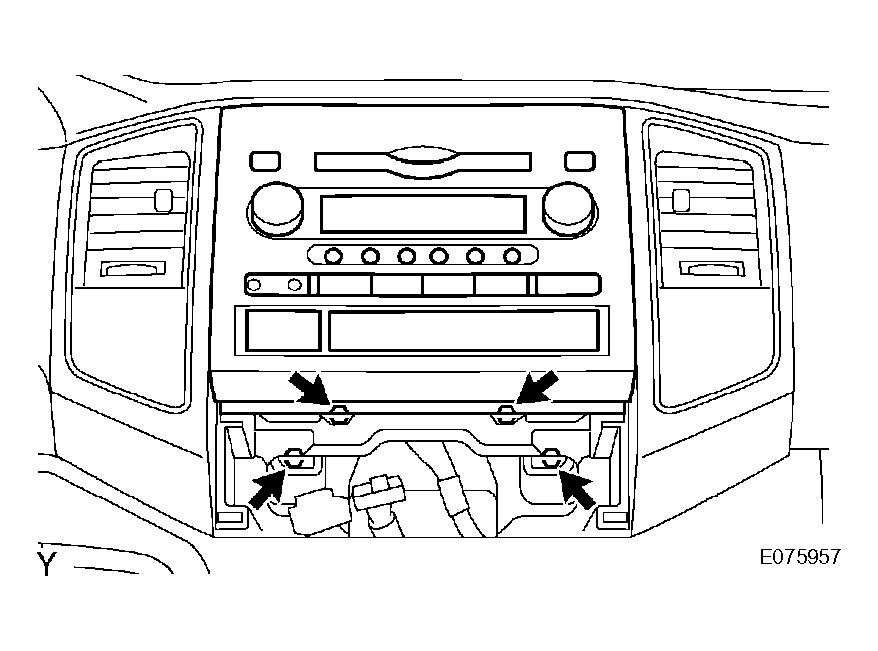

  Fig 1: Removing Radio Receiver Assembly With Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 1 RADIO BRACKET
1. Remove the 4 bolts and the No.1 radio bracket.

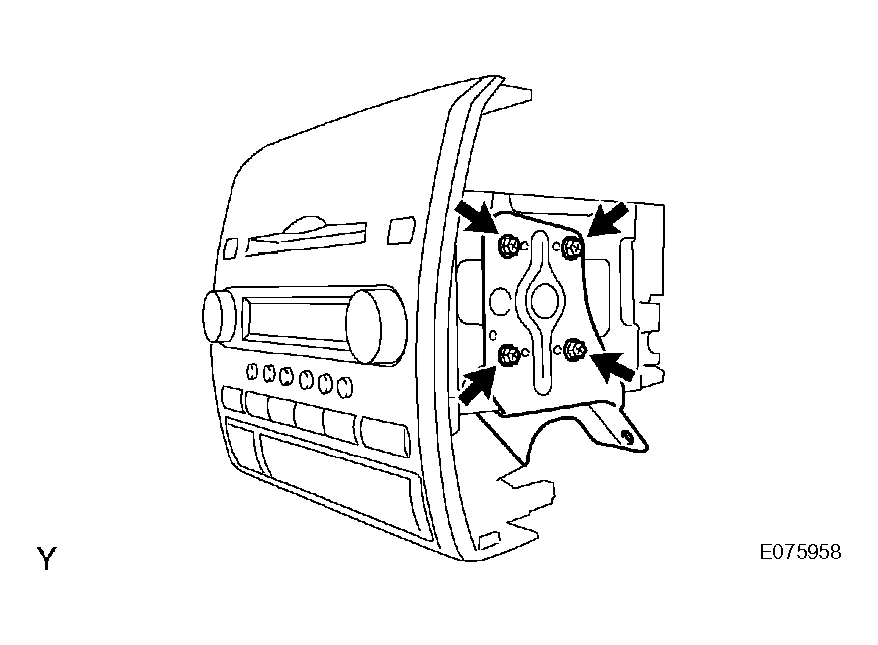

  Fig 2: Removing No. 1 Radio Bracket With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 2 RADIO BRACKET
1. Remove the 4 bolts and the No. 2 radio bracket.

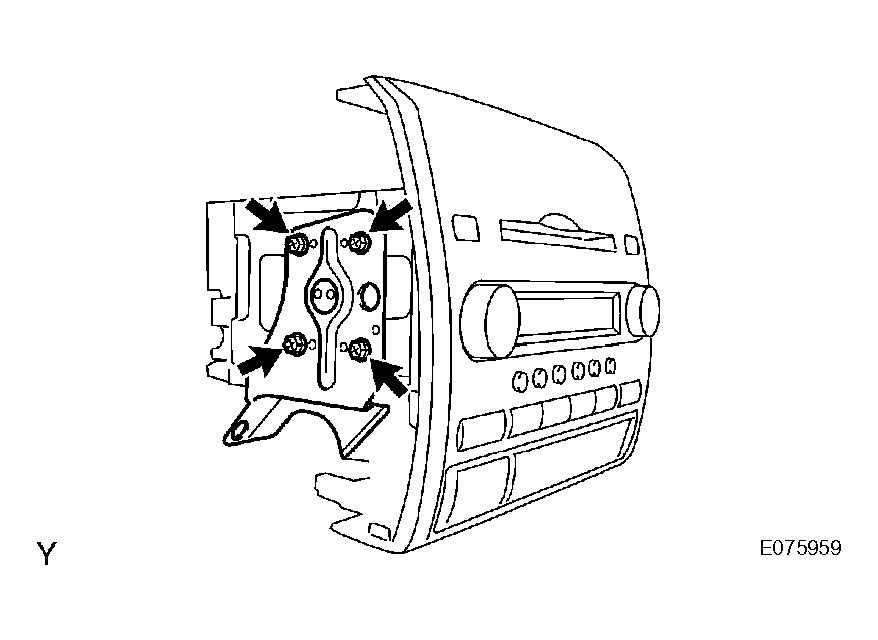

  Fig 3: Removing No. 2 Radio Bracket With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
