DTC P2118 Throttle Actuator Control Motor Current Range / Performance: Wiring Diagram

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.

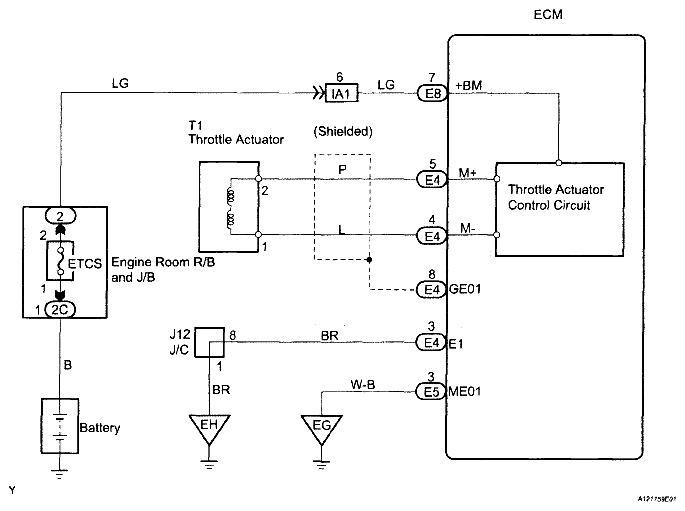

Fig 1: Throttle Actuator Control Motor Wiring Diagram
G05198263Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
