Under-hood Fuse/Relay Box

CONNECTOR TO FUSE/RELAY BOX INDEX - UNDER-HOOD FUSE/RELAY BOX

Socket Ref Terminal Connects to
A/C compressor clutch relay 2 4 Engine compartment wire harness
A/C condenser fan relay 3 4 Engine compartment wire harness
Headlight relay 1 4 Engine compartment wire harness
Horn relay 4 4 Engine compartment wire harness
Radiator fan relay 5 4 Engine compartment wire harness
T104 7   Engine compartment wire harness
T101 8   Engine wire harness
T102 6   EPS wire harness

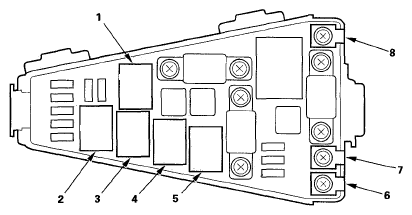

Fig 1: Identifying Under-Hood Fuse/Relay Box
G05456570Courtesy of AMERICAN HONDA MOTOR CO., INC.
