Horn Test/Replacement: Notes

  1. Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION ).
  2. Disconnect the 1P connector (A) from the horn (B).

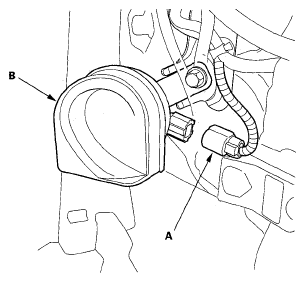

    Fig 1: Identifying 1P Connector And Horn
    G05456606
  3. Remove the mounting bolt and the horn.
  4. Test the horn by connecting battery power to the terminal (A) and grounding to the bracket (B). The horn should sound.
    Fig 2: Identifying Horn Terminal And Bracket
    G05456607
  5. If it fails to sound, replace it.
