Side Engine Mount Replacement: Installation

  1. Install the side engine mount/bracket assembly (A), then tighten the mounting bolts and nuts in the numbered sequence shown.

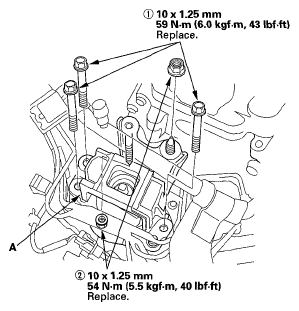

    Fig 1: Tightening Sequence Of Mounting Bolts And Nuts With Torque Specifications
    G05454153Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. With the nut (A) loosened, move the upper bracket (B) to the side engine mount (C) until the upper bracket contacts the stud bolt, then tighten the nut. Check mount-to-bracket clearance. They should be 6 mm (0.2 in.) and more. If the clearance out of tolerance, adjust the clearance.
Fig 2: Upper Bracket Nut With Torque Specification
G05454154Courtesy of AMERICAN HONDA MOTOR CO., INC.
