Crankshaft Position (CKP) Sensor

The CKP sensor detects crankshaft speed and is used by the ECM/PCM to determine ignition timing and timing for fuel injection of each cylinder as well as detecting engine misfire.

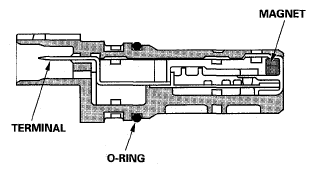

Fig 1: Sectional View Of Crankshaft Position (CKP) Sensor
G05454449Courtesy of AMERICAN HONDA MOTOR CO., INC.
