System Diagram

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.

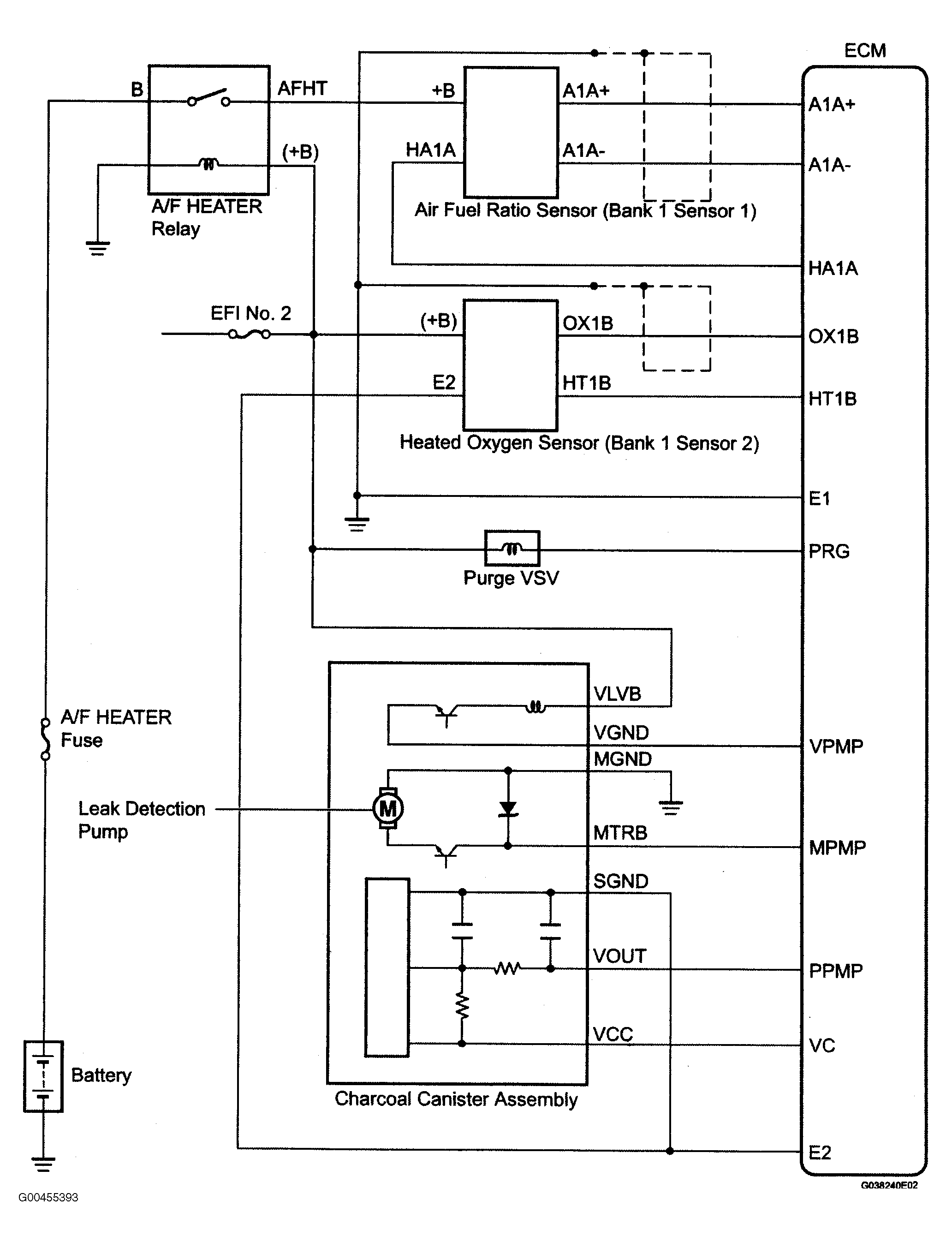

Fig 1: Identifying Emission Control System Diagram (1 Of 2)
G00455393Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

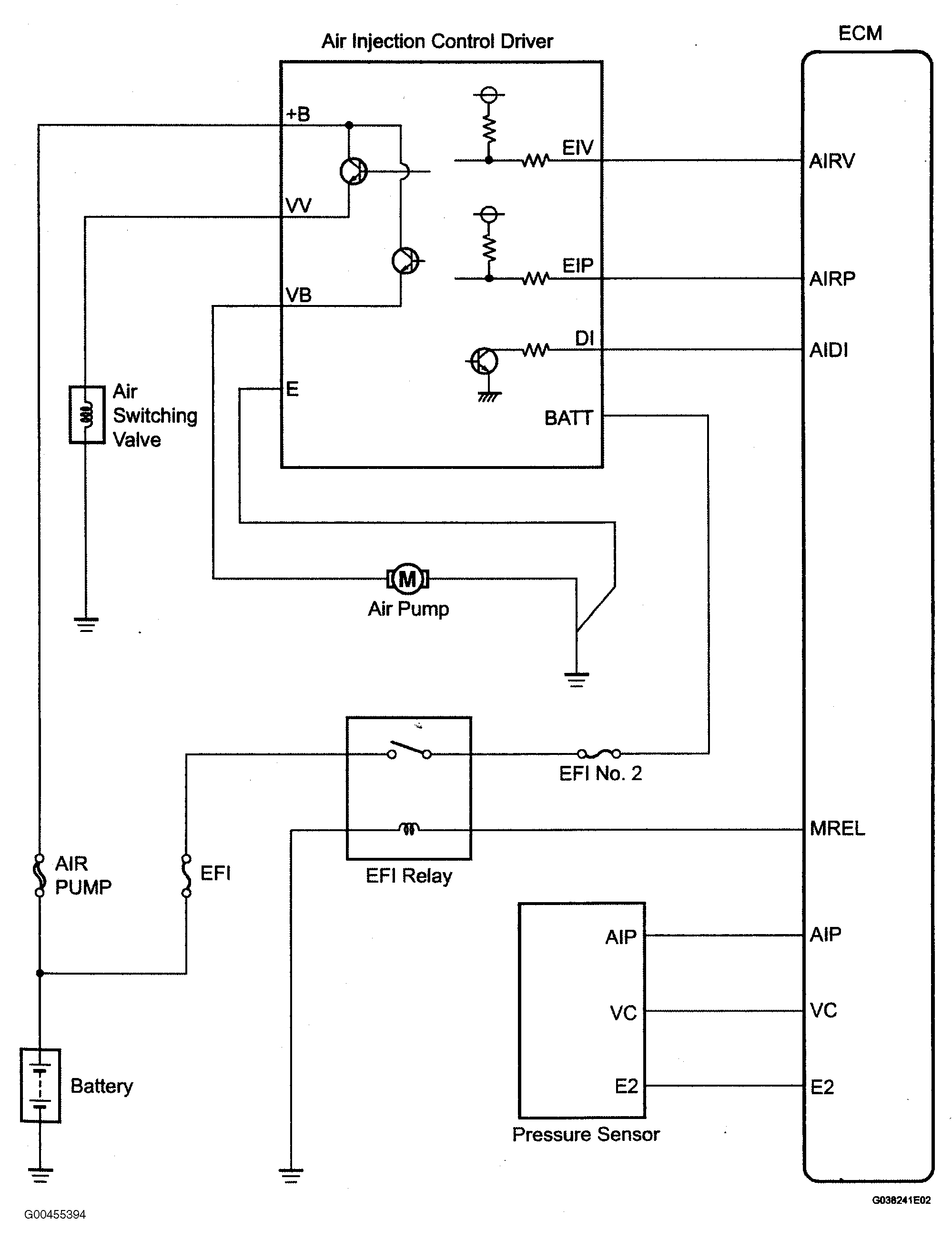

Fig 2: Identifying Emission Control System Diagram (2 Of 2)
G00455394Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
