Steering Column Assembly: Components

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.

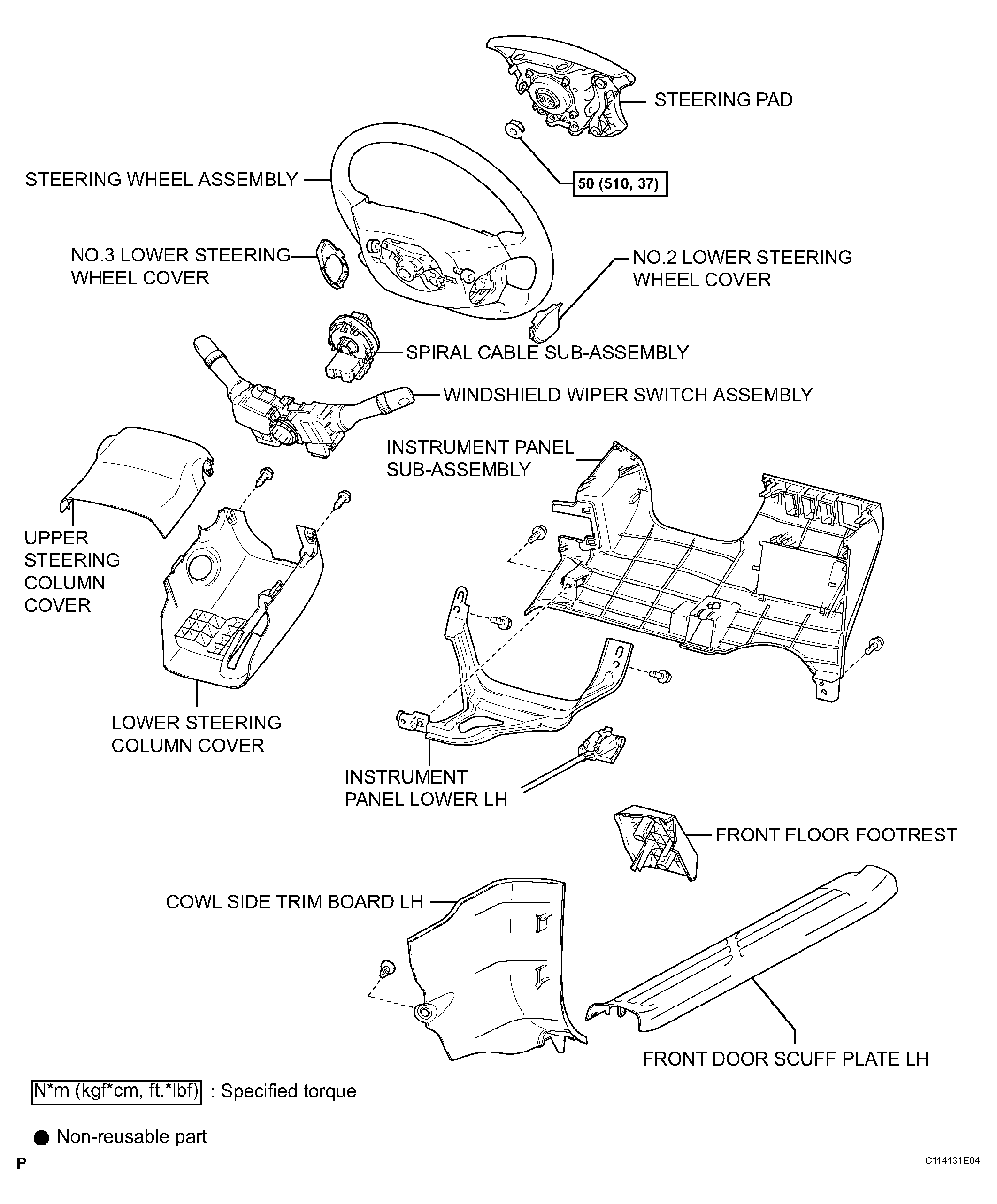

Fig 1: Identifying Steering Column Assembly Component (1 Of 4)
G04411113Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

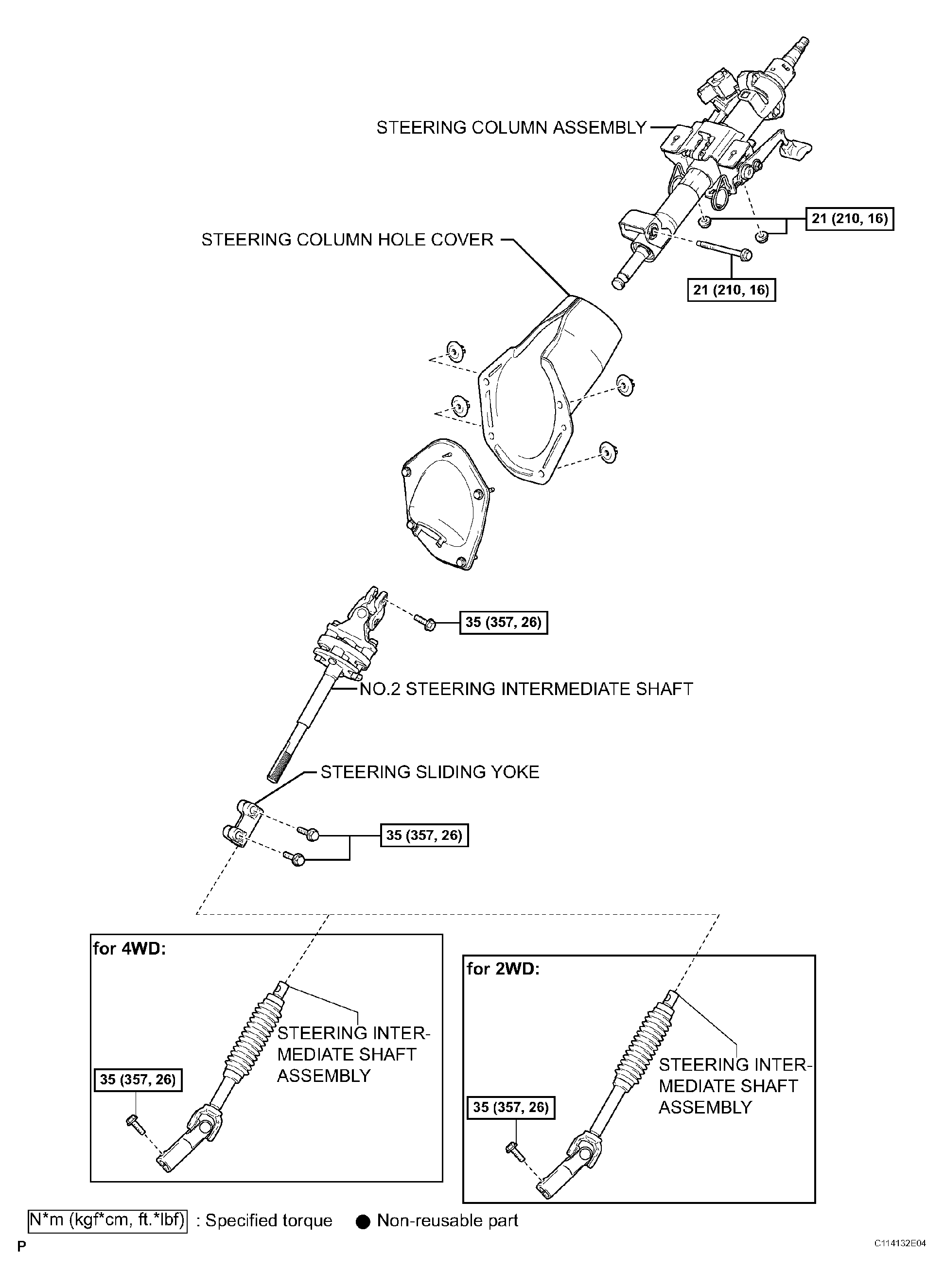

Fig 2: Identifying Steering Column Assembly Component (2 Of 4)
G04411114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

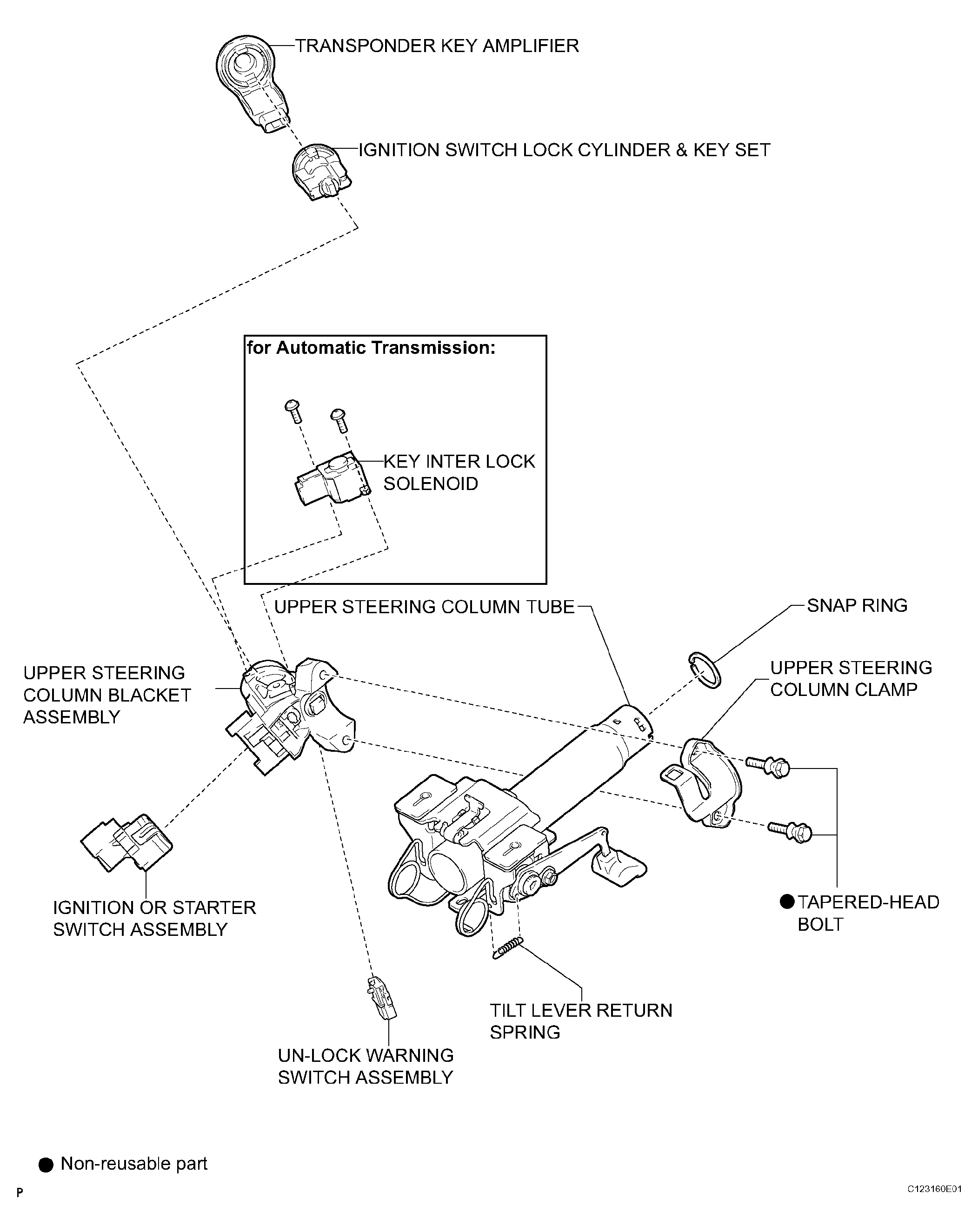

Fig 3: Identifying Steering Column Assembly Component (3 Of 4)
G04411115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

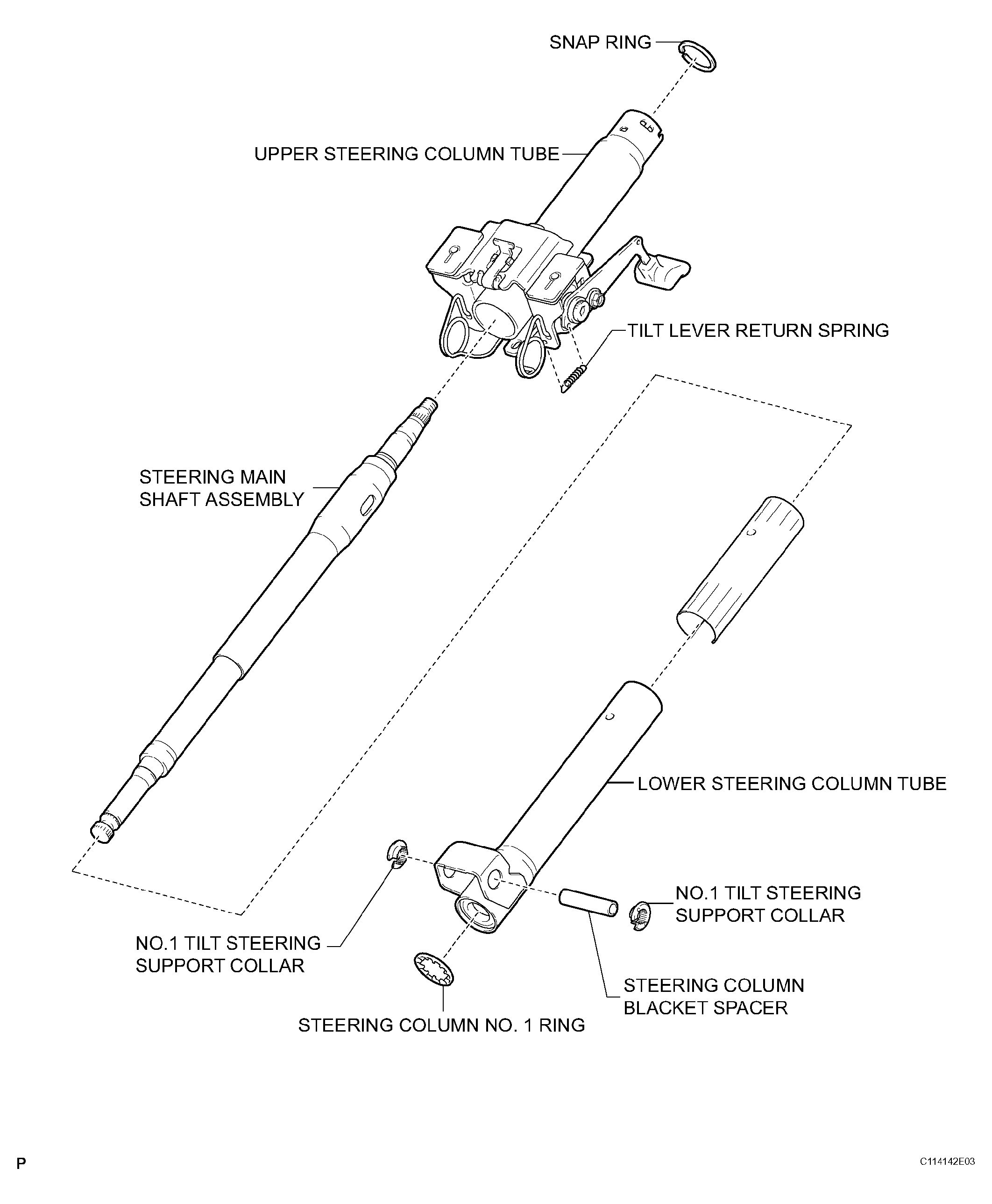

Fig 4: Identifying Steering Column Assembly Component (4 Of 4)
G04411116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
