INSTALL FOG LIGHT ASSEMBLY
1. Install the fog light bulb into the light socket.

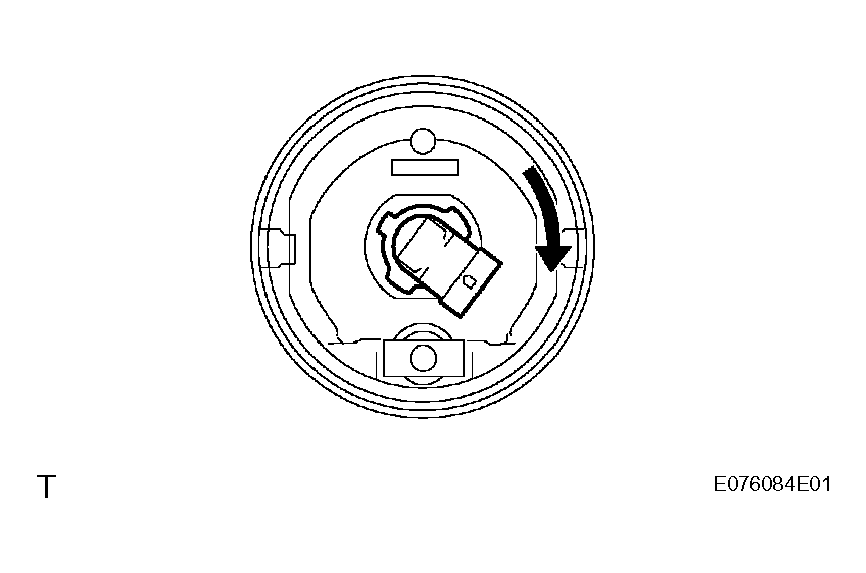

2. To install the fog light bulb socket and bulb, turn them in the direction indicated by the arrow in Fig 1.

  Fig 1: Turning Fog Light Bulb Socket And Bulb
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Engage the 2 claws and install the fog light assembly LH.
4. Connect the connector.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)

Fig 2: Connecting Cable
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
VEHICLE PREPARATION FOR FOG LIGHT AIM ADJUSTMENT (See ADJUSTMENT )
PREPARATION FOR FOG LIGHT AIMING (See ADJUSTMENT )
FOG LIGHT AIMING INSPECTION (See ADJUSTMENT )
FOG LIGHT AIMING ADJUSTMENT (See ADJUSTMENT )
