Headlight Assembly: Removal

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
REMOVE RADIATOR GRILLE (See REMOVAL )
REMOVE FRONT BUMPER COVER (See REMOVAL )
REMOVE FRONT BUMPER FILLER (See REMOVAL )
REMOVE HEADLIGHT ASSEMBLY

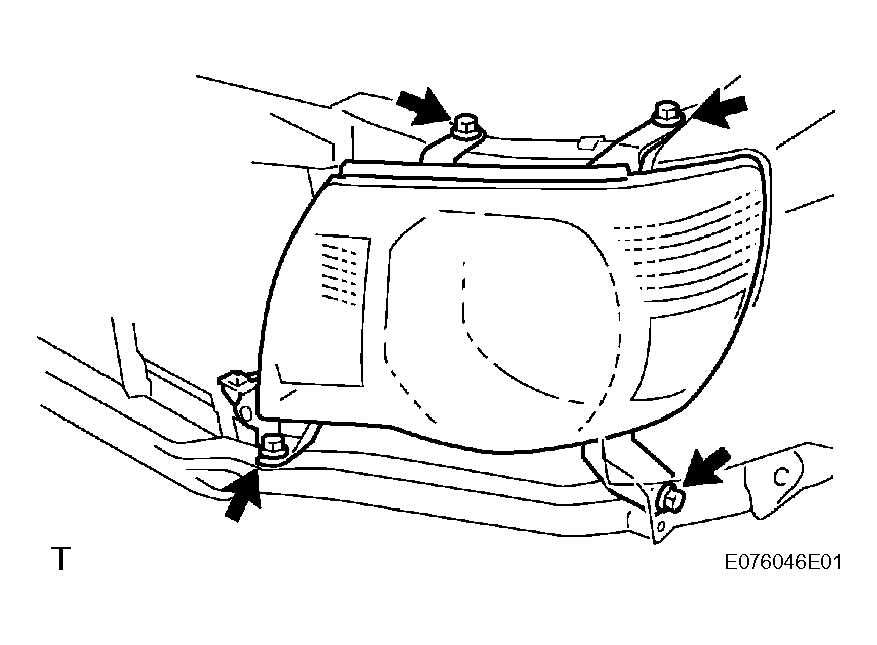

1. Remove the bolt and 3 screws.
2. Disconnect the 3 connectors, then remove the LH headlight assembly.
Fig 1: Removing Headlight Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT TURN SIGNAL LIGHT BULB

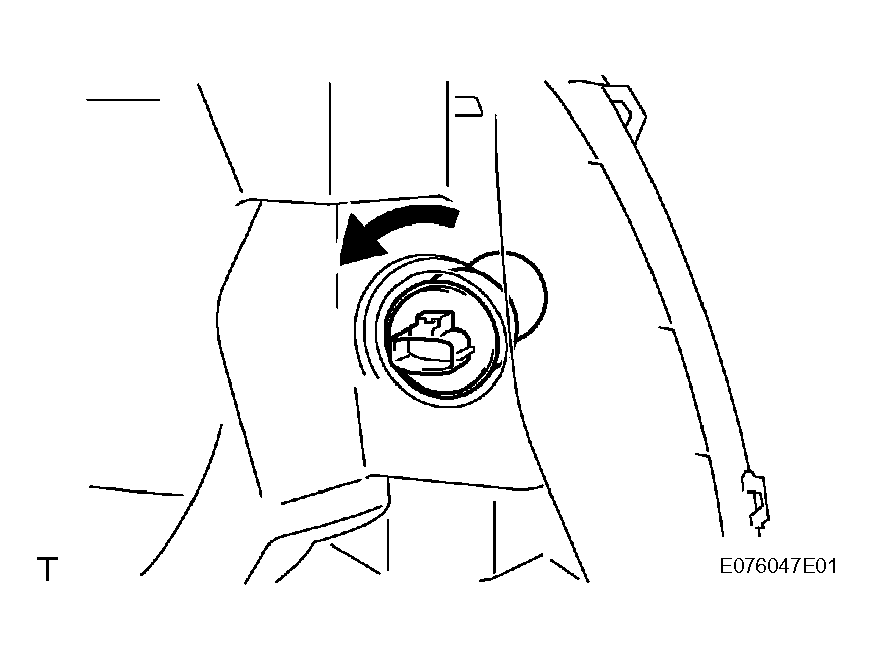

1. To remove the front turn signal light socket and bulb, turn them in the direction indicated by the arrow in Fig 2.
2. Remove the front turn signal light bulb from the light socket.
Fig 2: Turning Front Turn Signal Light Bulb
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CLEARANCE LIGHT BULB

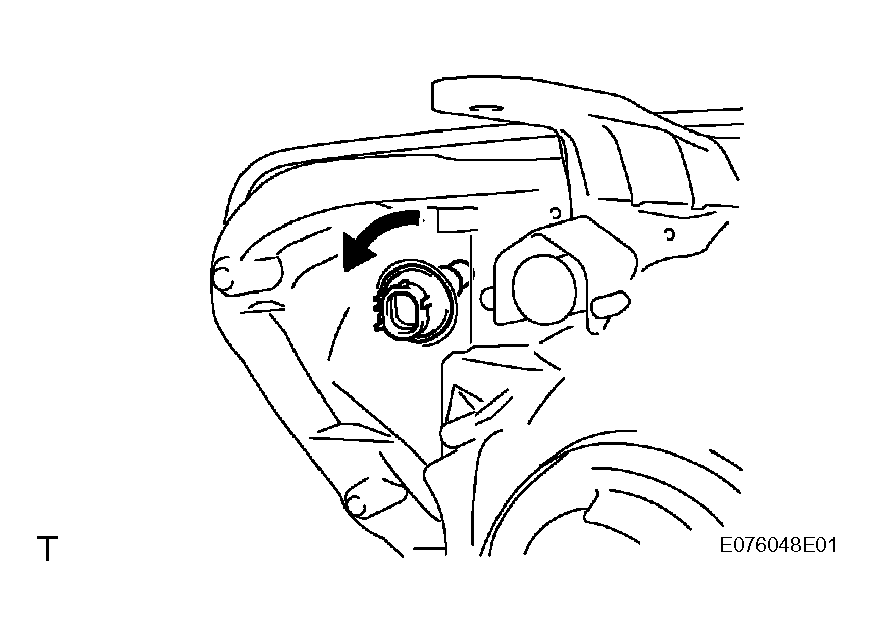

1. To remove the clearance light bulb socket and bulb, turn them in the direction indicated by the arrow in Fig 3.
2. Remove the clearance light bulb from the light socket.

  Fig 3: Turning Clearance Light Bulb
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 1 HEADLIGHT, BULB

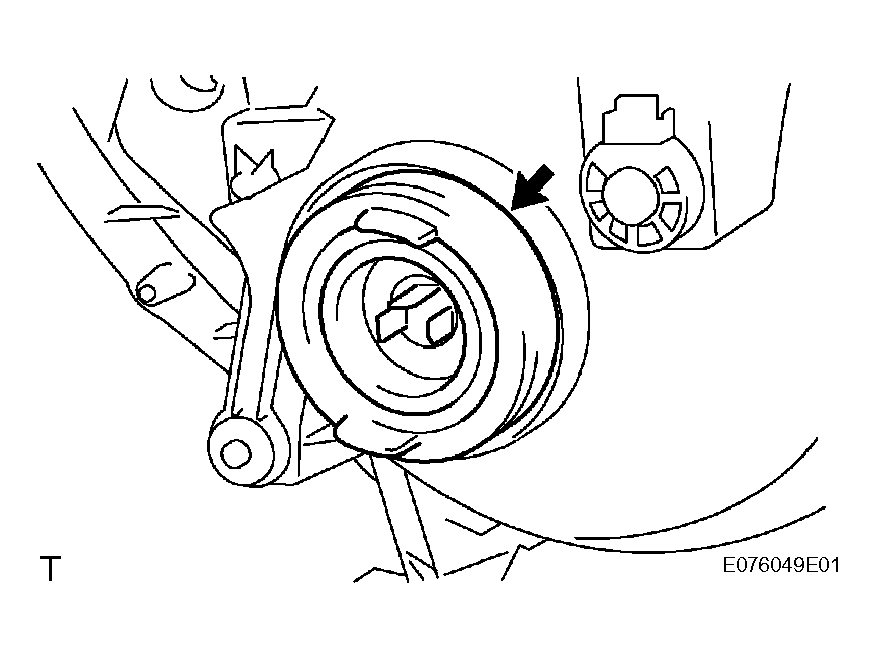

1. Remove the socket cover.

  Fig 4: Removing Socket Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

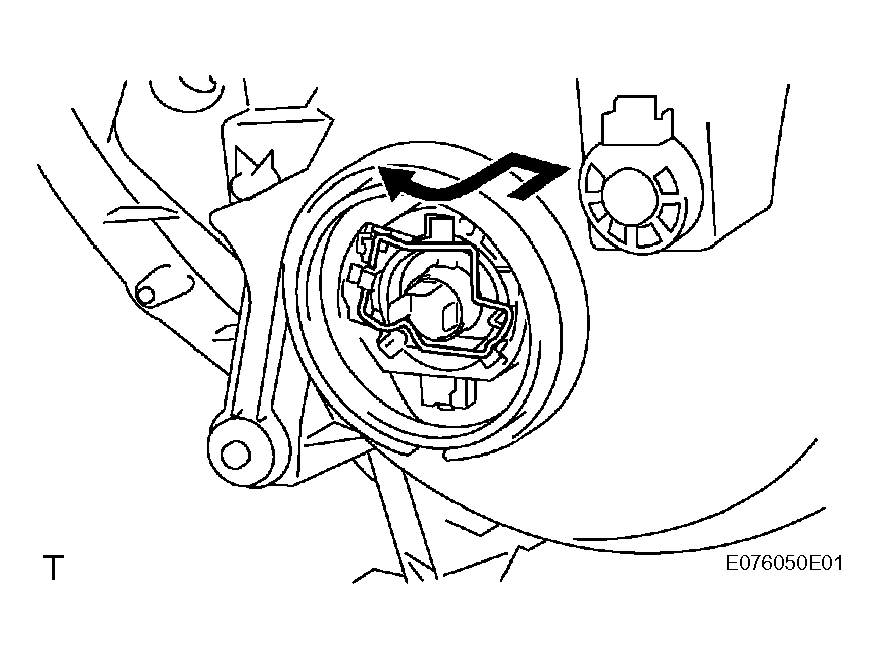

2. Push the set spring in the direction indicated by the arrow in Fig 5.

  Fig 5: Pushing Set Spring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

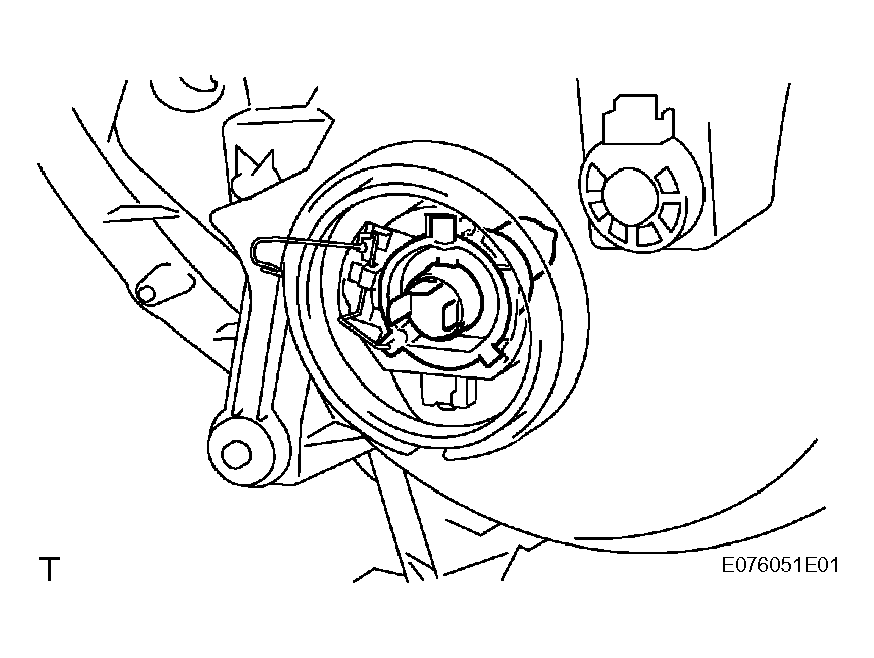

3. Remove the No. 1 headlight bulb.
  NOTE: Do not touch the bulb glass with your fingers.

  Fig 6: Removing No. 1 Headlight Bulb
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
