Headlight Dimmer Switch: Installation

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL HEADLIGHT DIMMER SWITCH ASSEMBLY
1. Engage the 2 claws and install the headlight dimmer switch assembly as shown in Fig 1.

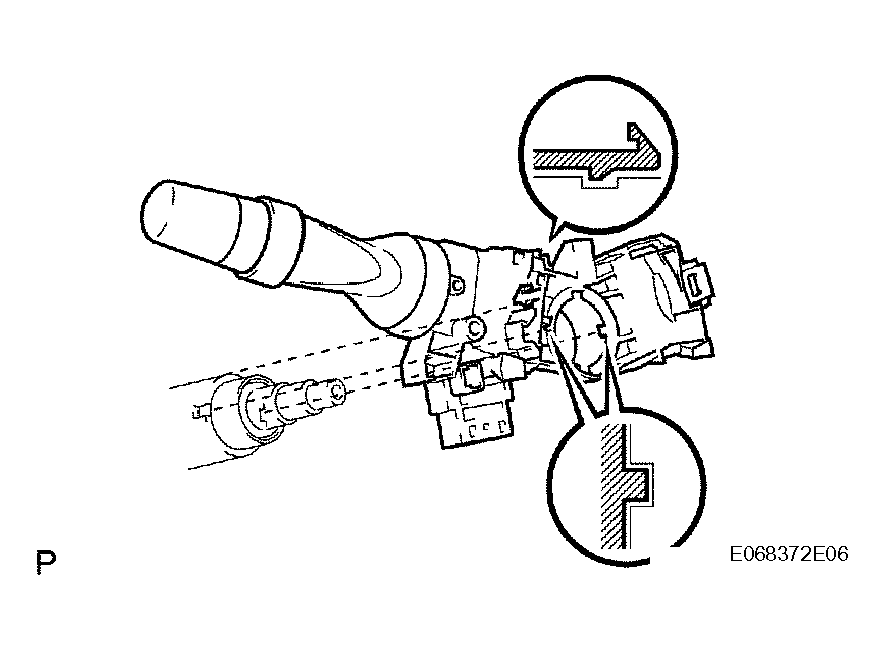

  Fig 1: Installing Headlight Dimmer Switch Assembly & Engaging Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the headlight dimmer switch assembly with the clamp.

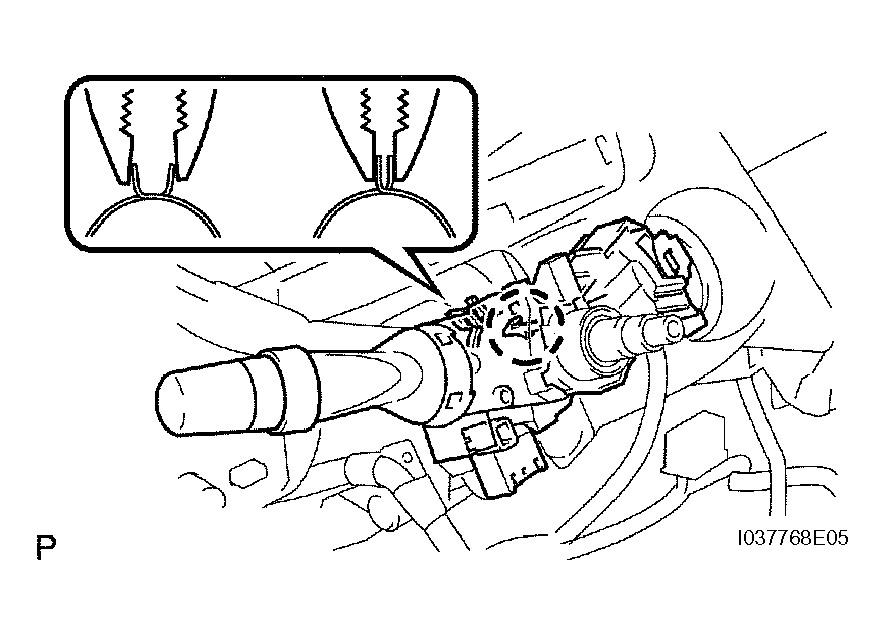

  Fig 2: Installing Headlight Dimmer Switch Assembly With Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the connector.
INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY (See INSTALLATION )
INSTALL SPIRAL CABLE SUB-ASSEMBLY (See INSTALLATION )
INSTALL STEERING COLUMN UPPER COVER (See INSTALLATION )
INSTALL STEERING COLUMN LOWER COVER (See INSTALLATION )
INSTALL CENTER SPIRAL CABLE (See INSTALLATION )
INSTALL STEERING WHEEL ASSEMBLY (See INSTALLATION )
INSPECT STEERING WHEEL CENTER POINT
INSPECT HORN BUTTON ASSEMBLY
INSTALL HORN BUTTON ASSEMBLY
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)
INSPECT SRS WARNING LIGHT
INSTALL NO. 3 STEERING WHEEL LOWER COVER (See REMOVAL )
INSTALL NO. 2 STEERING WHEEL LOWER COVER (See REMOVAL )
