High Mounted Stop Light Assembly: Installation

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL CENTER STOP LIGHT ASSEMBLY
1. Install the 3 center stop light bulbs into the 3 light sockets.
2. To install the 3 center stop light sockets and bulbs, turn them in the direction indicated by the arrow in Fig 1.

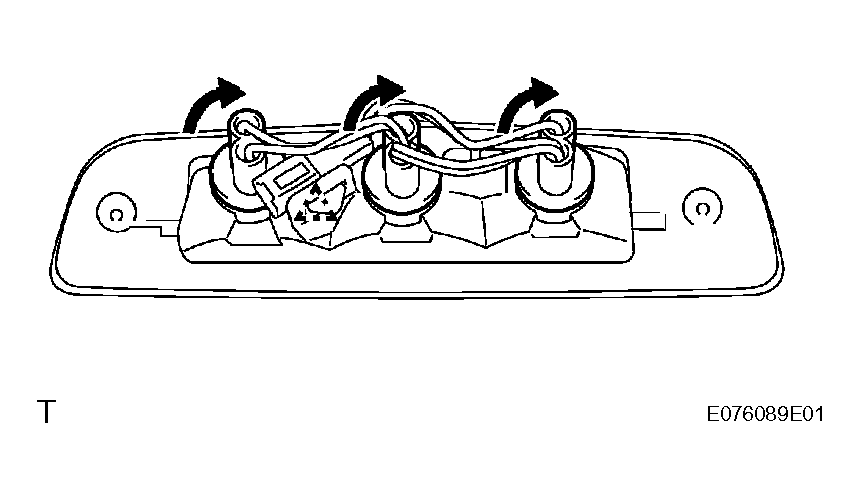

  Fig 1: Installing Center Stop Light Bulbs
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the wire harness clamp.
4. Connect the connector.

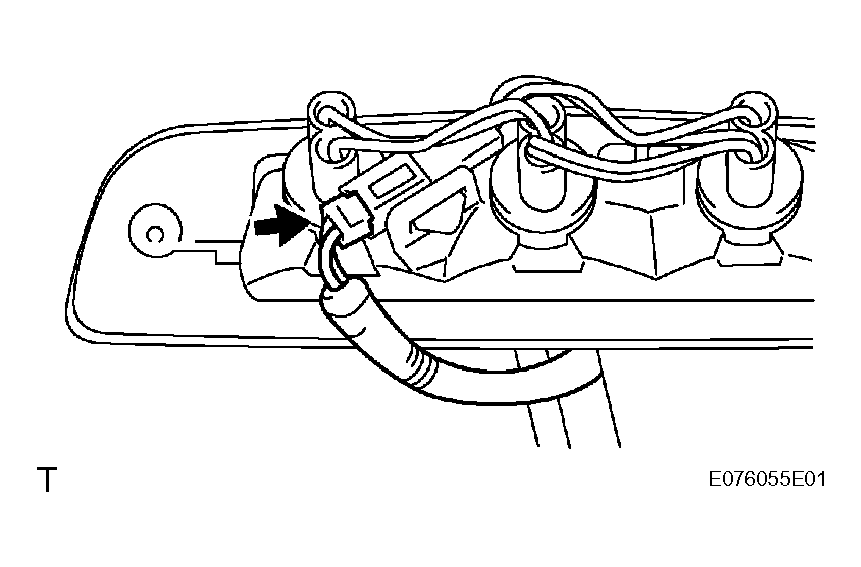

  Fig 2: Connecting Center Stop Light Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Install the center stop light assembly with the 2 screws.

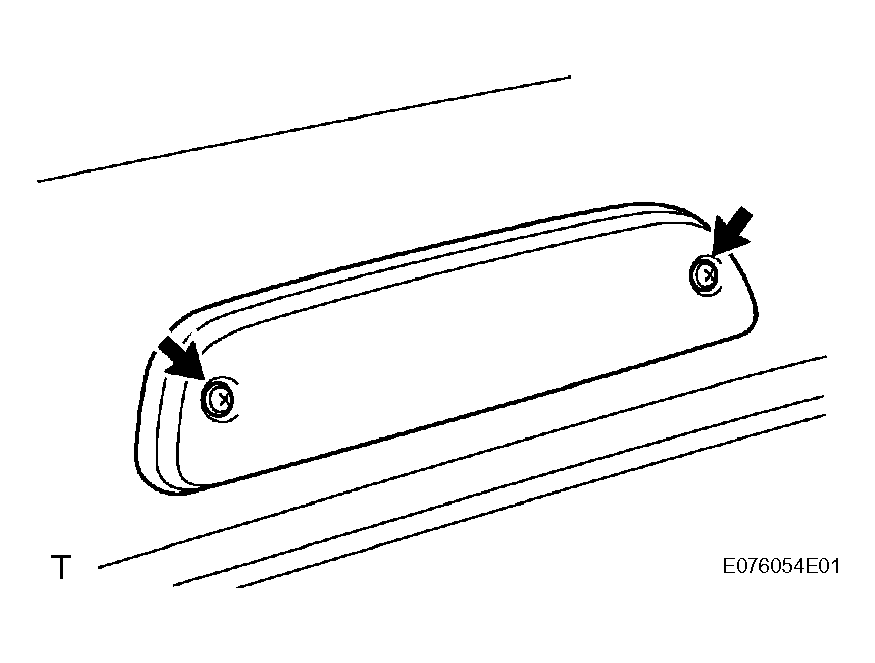

  Fig 3: Installing Center Stop Light Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)
