Rear Combination Light Assembly: Installation

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL REAR COMBINATION LIGHT ASSEMBLY
1. Install the 3 light bulbs into the 3 light sockets.
2. To install the 3 light bulb sockets and 3 bulbs, turn them in the direction indicated by the arrow in Fig 1.
3. Install the wire harness clamp.

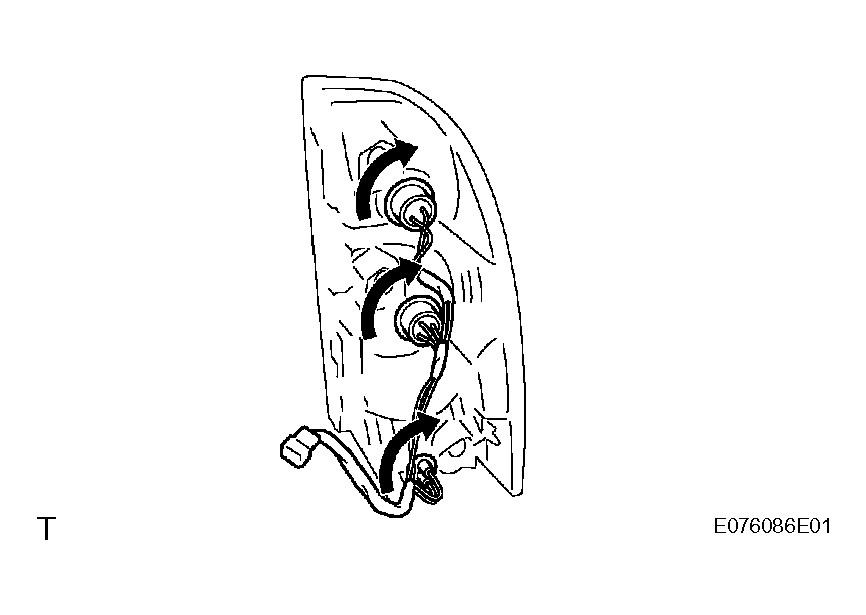

  Fig 1: Installing Light Bulb Sockets By Turning
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Connect the connector, then install the tail light (rear combination light) assembly LH with the 2 bolts.
  Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

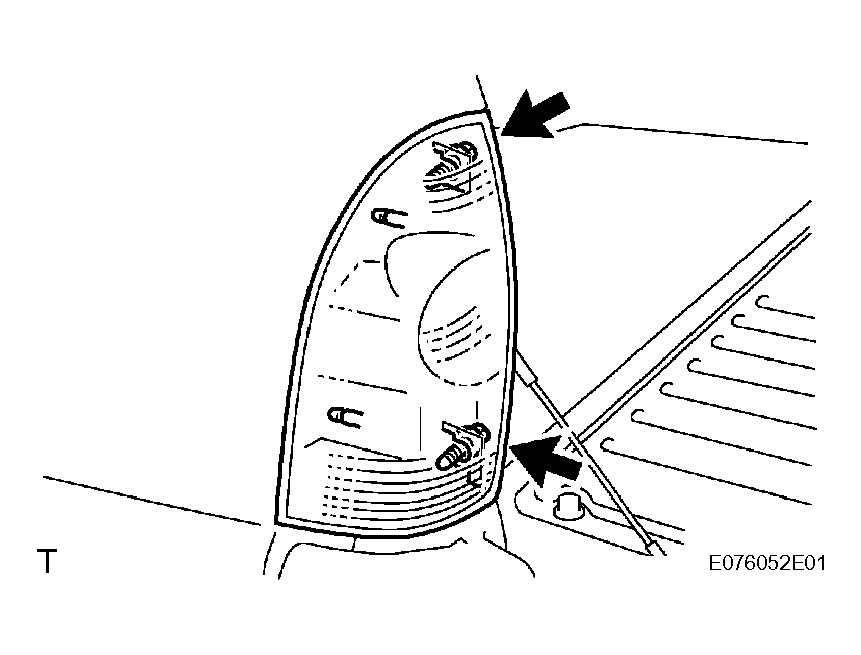

  Fig 2: Installing Tail Light Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)
