Rear Combination Light Assembly: Removal

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
REMOVE REAR COMBINATION LIGHT ASSEMBLY
1. Remove the 2 bolts.
2. Slide the tail light (rear combination light) assembly LH toward the rear of the vehicle and release the 2 pins.

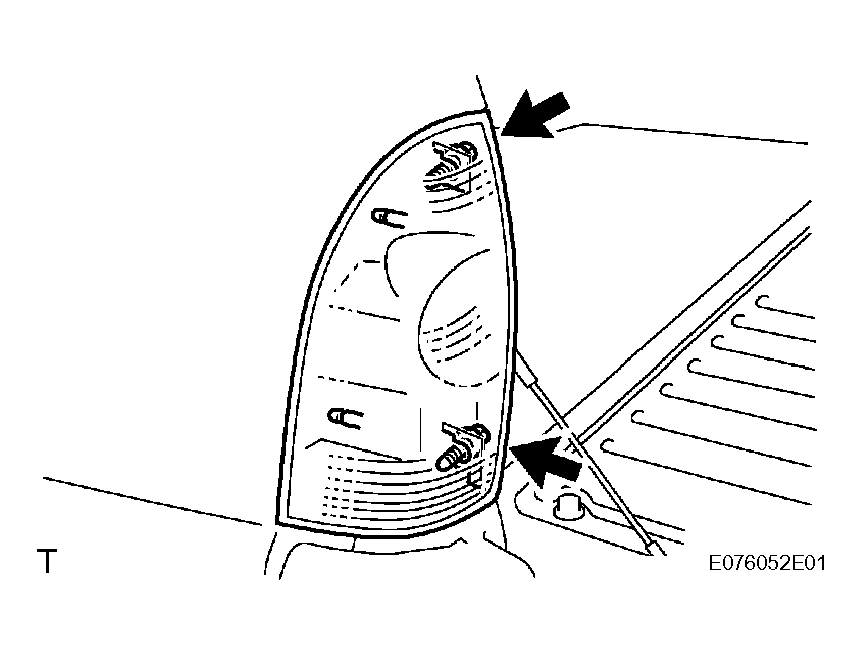

  Fig 1: Removing Tail Light Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect the connector, then remove the tail light (rear combination light) assembly LH.

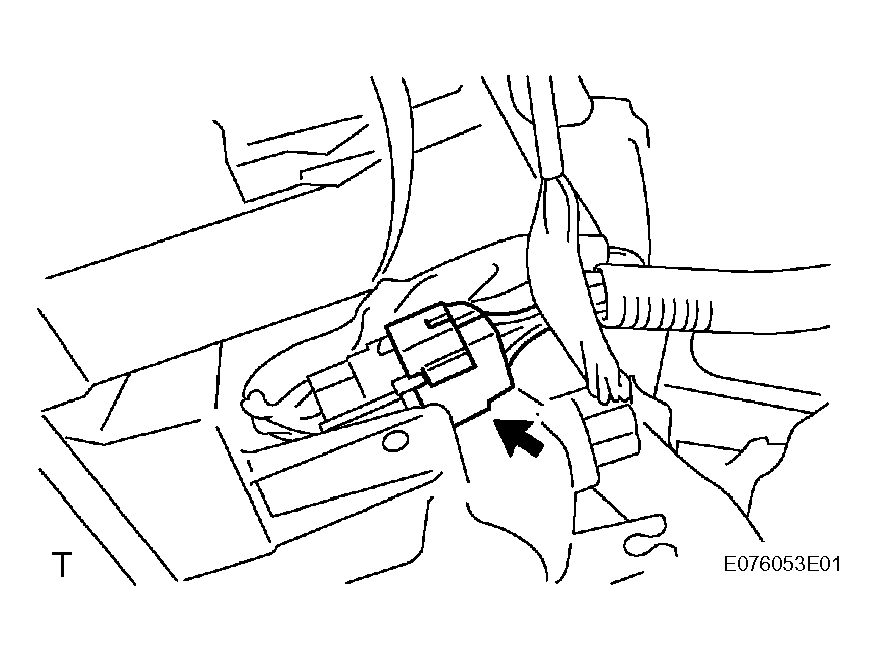

  Fig 2: Disconnecting Tail Light Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the wire harness clamp.
5. To remove the 3 light bulb sockets and 3 bulbs, turn them in the direction indicated by the arrow in Fig 3.

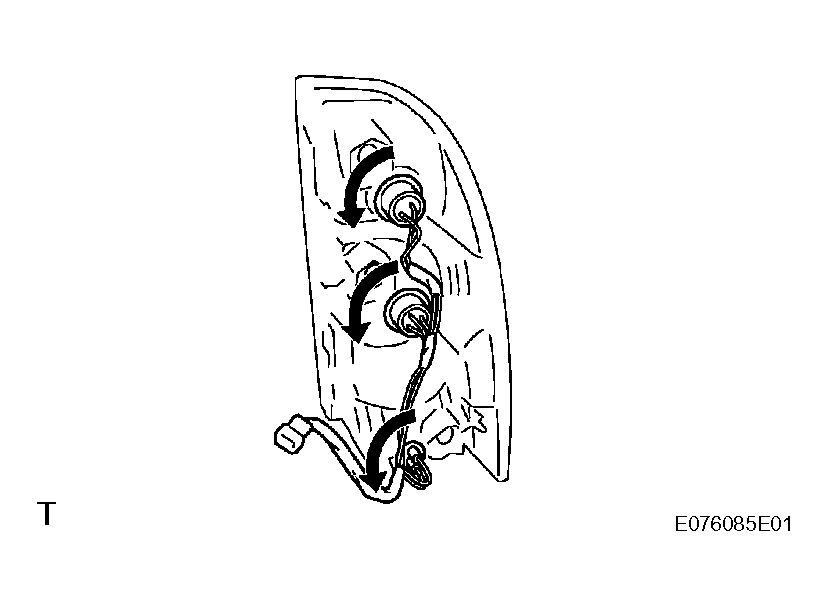

  Fig 3: Removing Light Bulbs By Turning
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Remove the 3 light bulbs from the 3 light sockets.
