Taillight Relay: Inspection

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT TAIL LIGHT RELAY
    1. Check the resistance.
      1. Using an ohmmeter, measure the resistance between the terminals.

        Standard

        TAIL LIGHT RELAY

        Tester Connection Specified Condition
        3-5 10 k or higher
        3-5 Below 1
        (When 1 battery voltage applied to terminals 1 and 2)

        If the result is not as specified, replace the tail light relay.

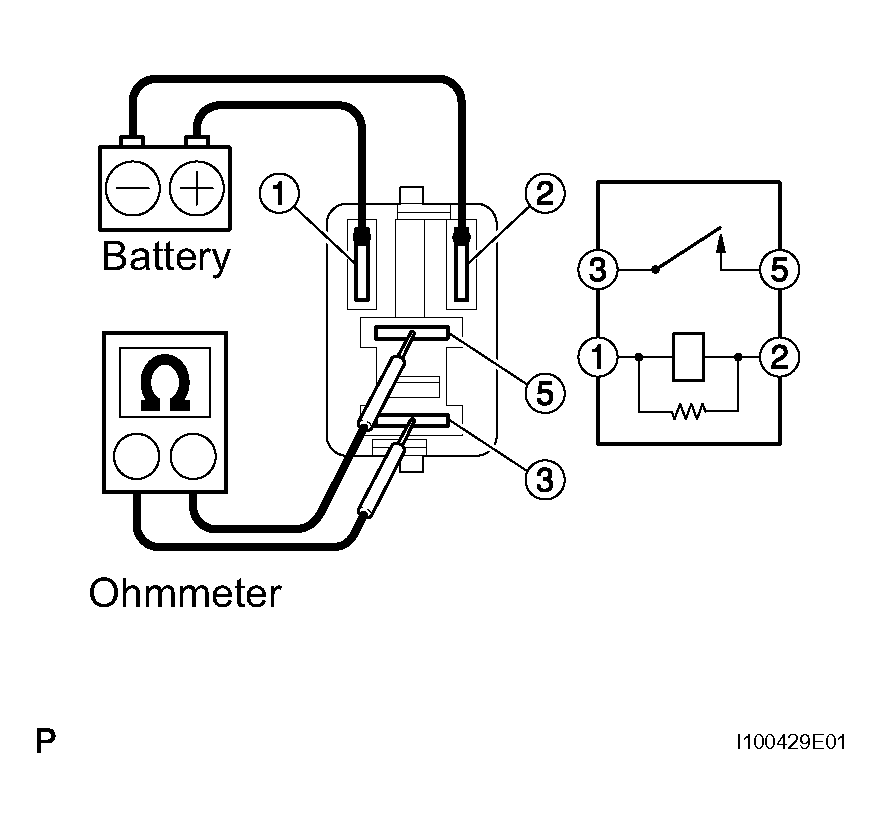

        Fig 1: Inspecting Tail Light Relay
        G04412505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
