Trailer Socket: Components

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.

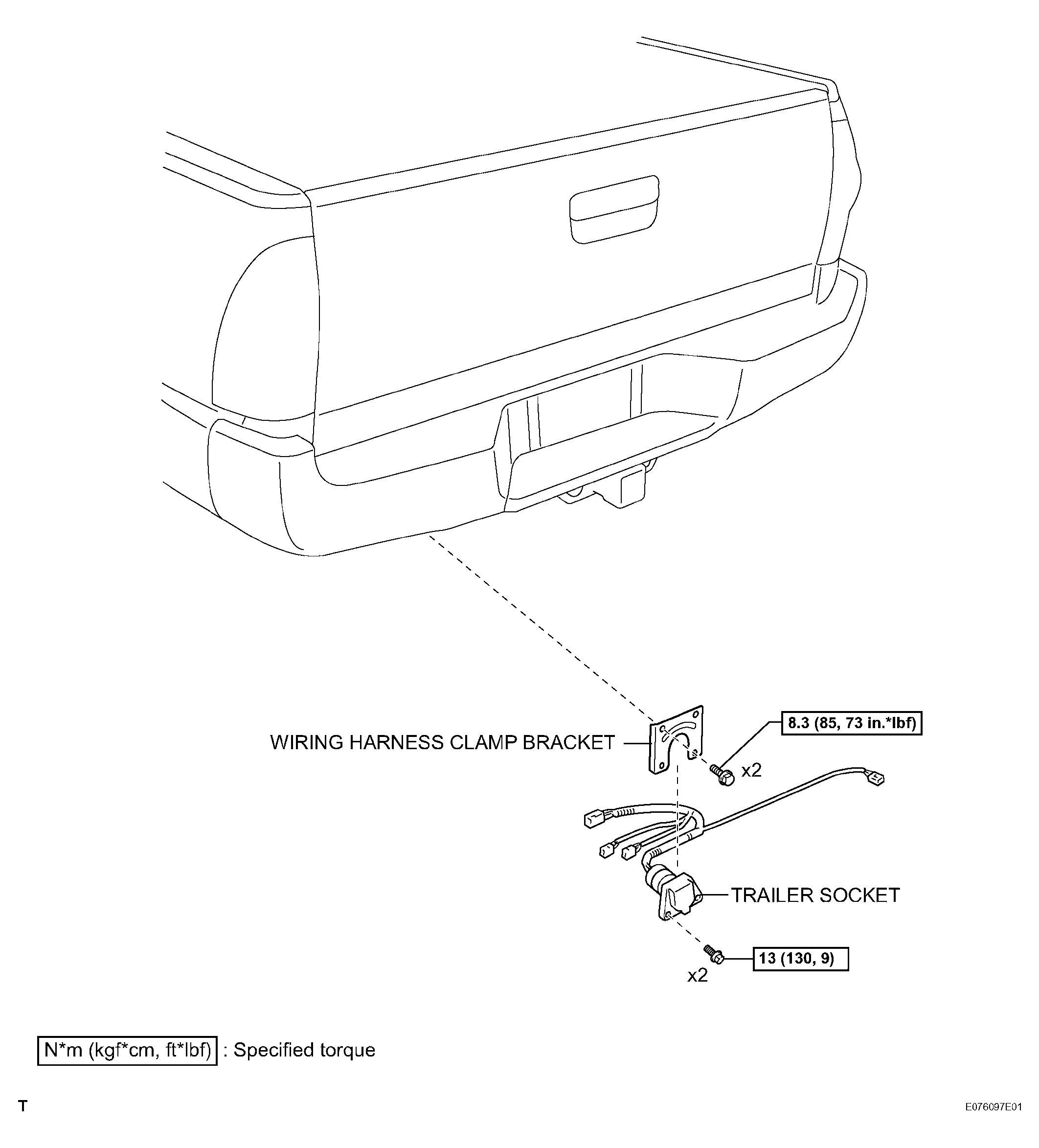

Fig 1: Identifying Trailer Socket Components And Replacements
G04412507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
