Trailer Socket: Installation

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL TRAILER SOCKET
1. Install the 2 bolts and wiring harness clamp bracket.
  Torque: 8.3 N*m (85 kgf*cm, 73 in.*lbf)

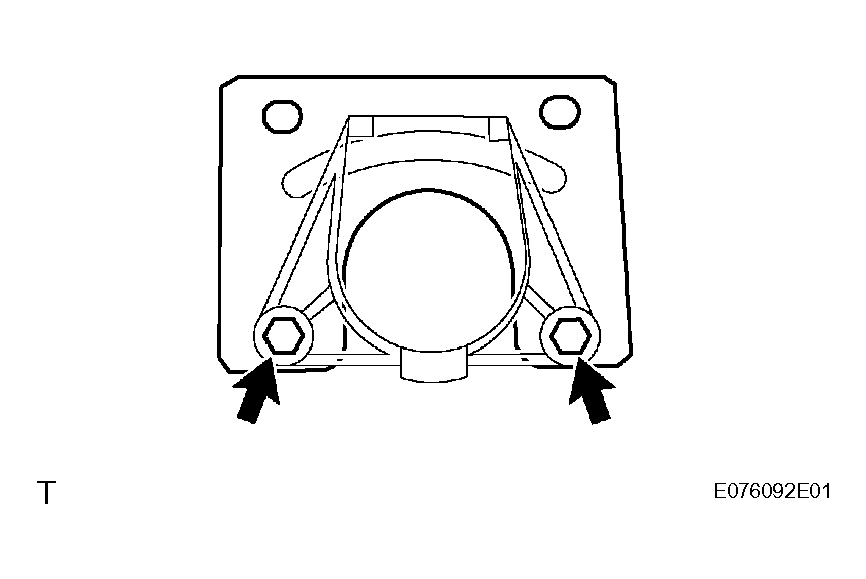

  Fig 1: Installing Wiring Harness Clamp Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the 2 bolts and No. 3 wire flame.
  Torque: 13 N*m (130 kgf*cm, 9 ft.*lbf)
3. Connect the 4 connectors and engage the 2 clamps.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)

Fig 2: Connecting Cable To Battery Terminal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
