Cruise Control Main Switch: Removal

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.
  1. PRECAUTION (See  AIRBAG SYSTEM
  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Wait at least for 90 seconds after disconnecting the cable to prevent the airbag from working.

  3. REMOVE LOWER NO. 2 STEERING WHEEL COVER (See  REMOVAL  )
  4. REMOVE LOWER NO. 3 STEERING WHEEL COVER (See  REMOVAL  )
  5. REMOVE STEERING PAD ASSEMBLY (See  REMOVAL  )
  6. REMOVE CRUISE CONTROL MAIN SWITCH
    1. Disconnect the connector and remove the 2 screws.

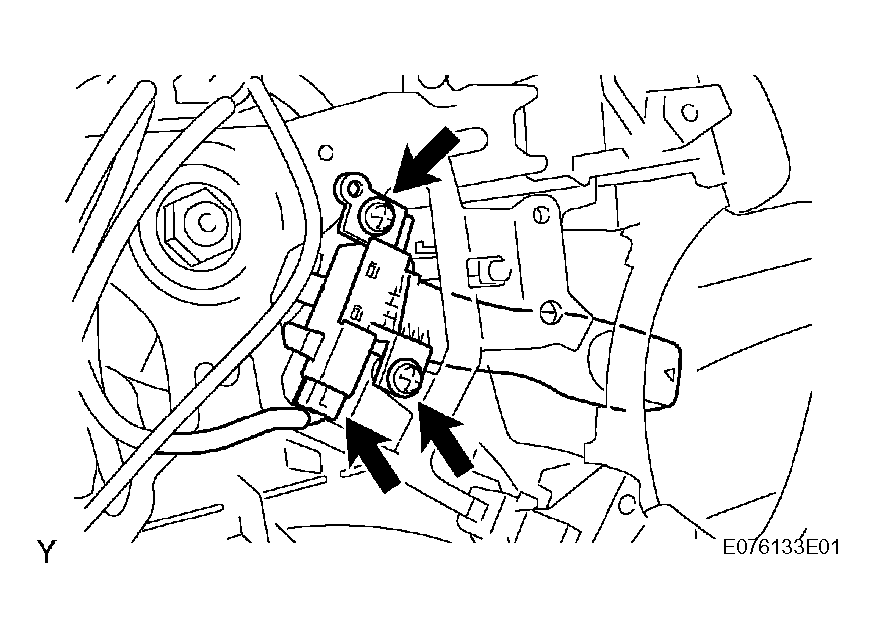

      Fig 1: Disconnecting Connector Screws
      G04412427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the cruise control main switch from the steering wheel.

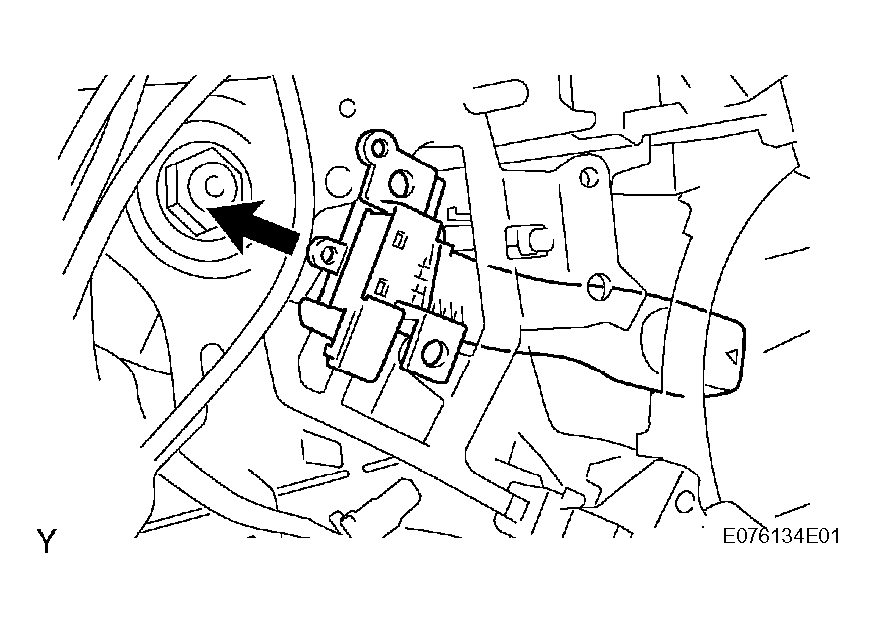

      Fig 2: Removing Cruise Control Main Switch From Steering Wheel
      G04412428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
