Diagnosis System

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.

DESCRIPTION
The ECM stores DTCs (Diagnostic Trouble Codes) when trouble occurs on the vehicle. The diagnosis system allows reading of DTCs stored in the ECM when a intelligent tester is connected to the DLC3 (Data Link Connector 3). If the CRUISE MAIN indicator light does not come on after a DTC check, it means that a malfunction has occurred in the cruise control system. Use a intelligent tester or SST to check for DTCs.

CHECK DLC3

The ECM uses ISO 9141-2 for data communication. The terminal arrangement of the DLC3 complies with SAE J1962 and matches the ISO 9141-2 format.

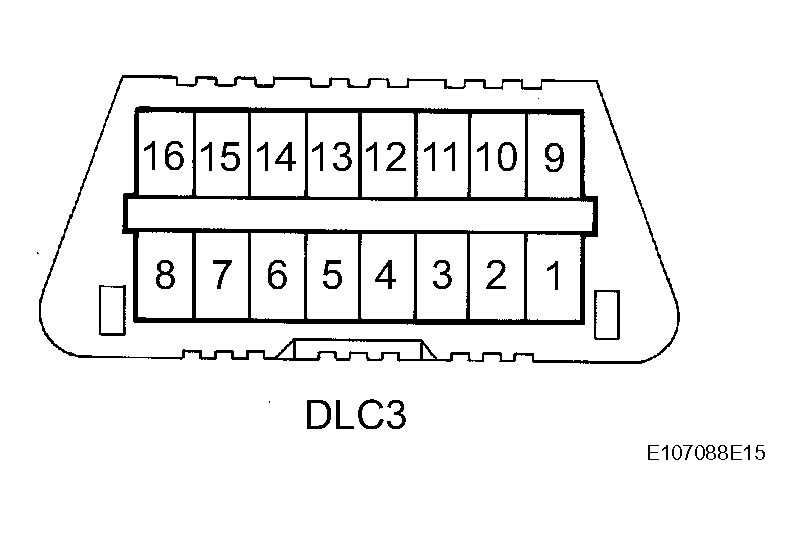

Fig 1: Identifying DLC3 Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TESTER CONNECTION SPECIFIED CONDITION

Terminal No.	Tester connection	Condition	Specification
4	Chassis ground - Body Ground	Always	Below 1 Ω
16	Battery positive - Body Ground	Always	9 to 14 V

HINT:

If the intelligent tester display shows "UNABLE TO CONNECT TO VEHICLE" after connecting the tester to the DLC3 and turning the ignition to the ON position, there is a problem in either the vehicle or the tester itself.

If communication is normal when connecting the tester to another vehicle, inspect the DLC3 on the original vehicle.
If communication is still not possible when connecting the tester to another vehicle, it suggests the problem exists in the tester. In this case, consult the Service Department listed in the tester's instruction manual.

CHECK INDICATOR
1. Turn the ignition switch to the ON position.

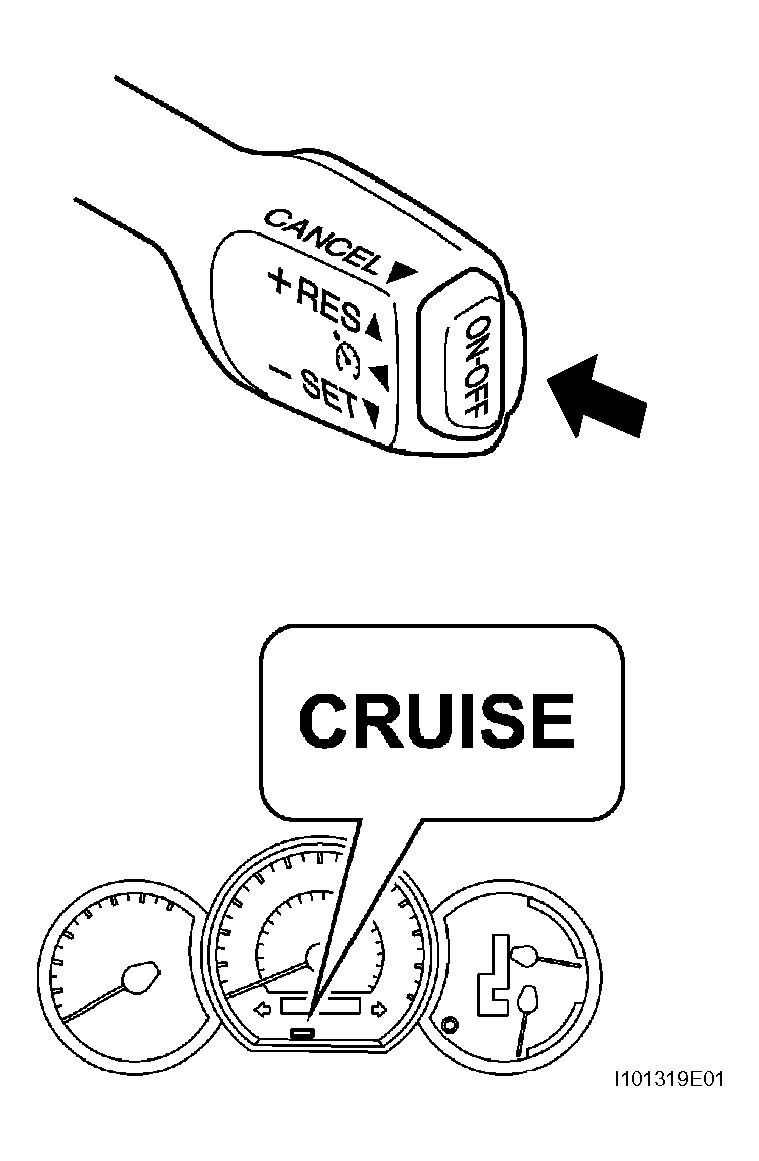

  Fig 2: Checking CRUISE MAIN Indicator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check that the CRUISE MAIN indicator light comes on when the cruise control main switch ON-OFF button is pushed on, and that the indicator light goes off when the ON-OFF button is pushed off.
  HINT:

  If there is a problem with the ON/OFF illumination of the indicator light, inspect the cruise main indicator light circuit (See CRUISE MAIN INDICATOR LIGHT CIRCUIT ).

  HINT:

  If a malfunction occurs in the vehicle speed sensor, stop light switch assembly or other related parts while cruise control driving, the ECM actuates AUTO CANCEL of the cruise control. Then the CRUISE MAIN indicator light starts to blink, to inform the driver of the malfunction. At the same time, data of the malfunction is stored as a diagnostic trouble code (DTC).

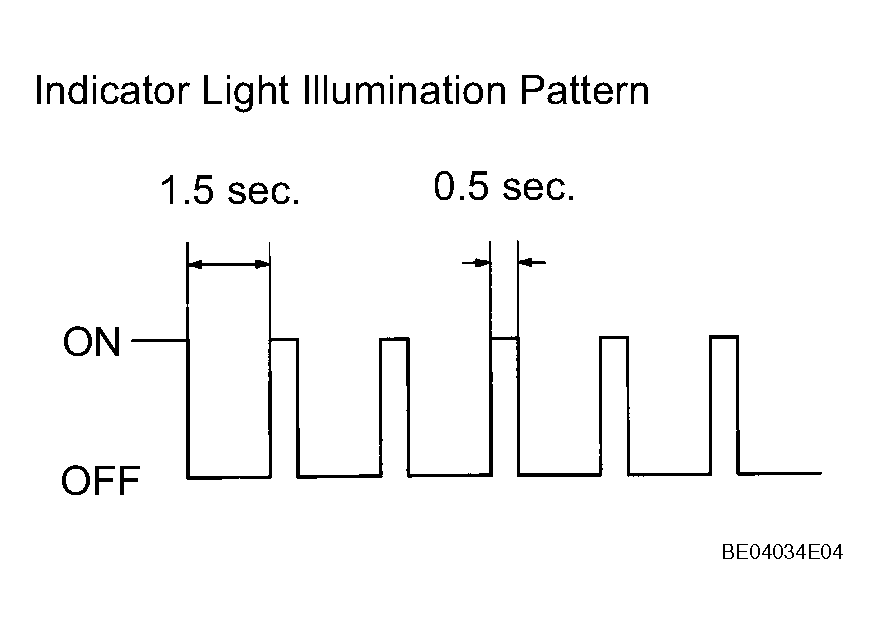

  Fig 3: Indicator Light Illumination Pattern
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
