Air Conditioning Control Assembly: Installation

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL AIR CONDITIONING CONTROL ASSEMBLY
1. Connect the 2 connectors.
2. Engage the 4 clips and install the air conditioning control assembly.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)

NOTE: (See AIR CONDITIONING SYSTEM

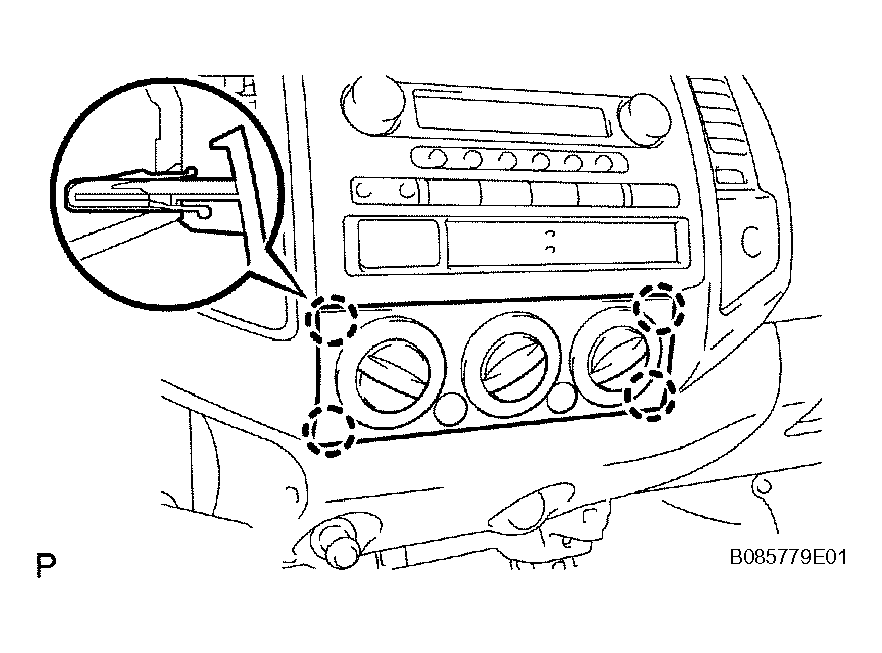

Fig 1: Installing Air Conditioning Control Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
