System Structure: Indicators
WARNING: This page is about a different car, the 2008 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

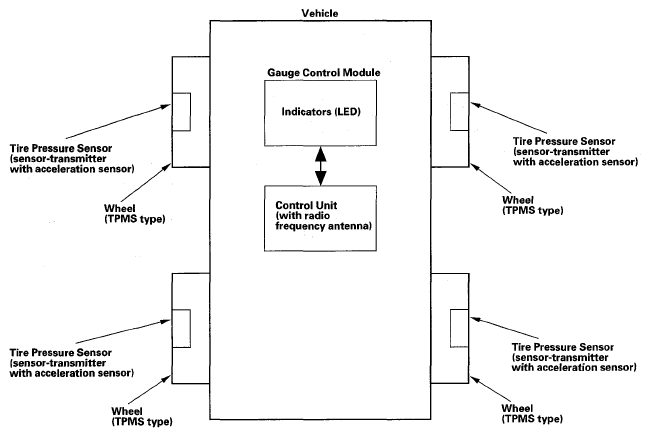

Two indicators are in the gauge control module: The low tire pressure indicator comes on when any tire pressure is low, and the TPMS indicator that comes on only if there's a problem with the system.
The low tire pressure indicator alerts the driver that a tire(s) pressure is low, but does not specify the tire(s) location.
