ELD Unit (USA) Connector End View

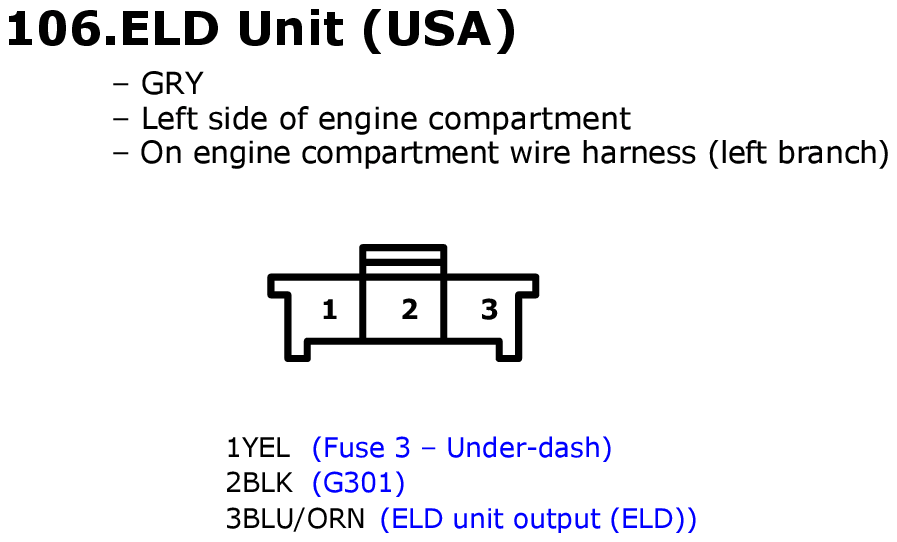

Fig 1: ELD Unit (USA) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
