Impact Sensor

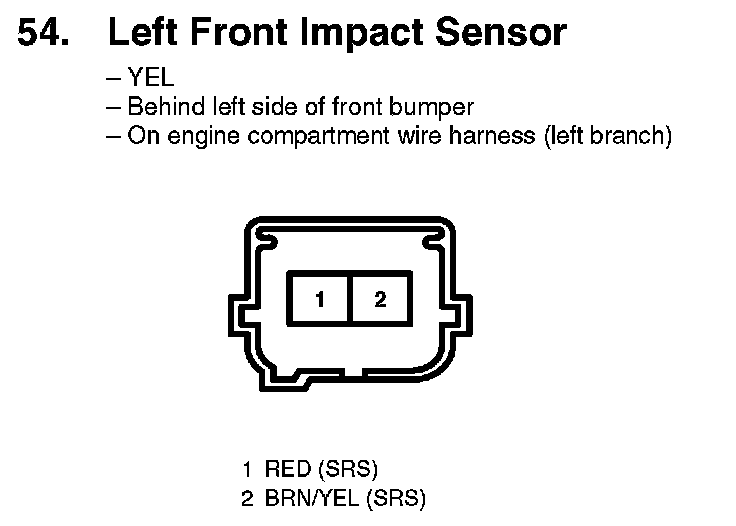

54. Left Front Impact Sensor:

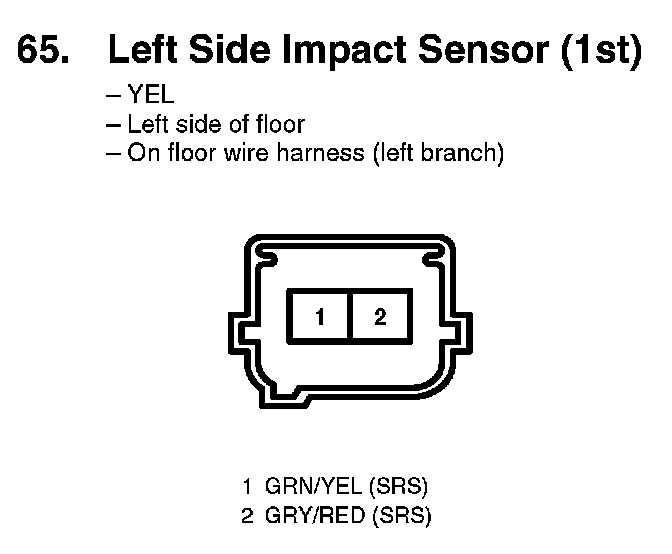

65. Left Side Impact Sensor (1st):



66. Left Side Impact Sensor (2nd):

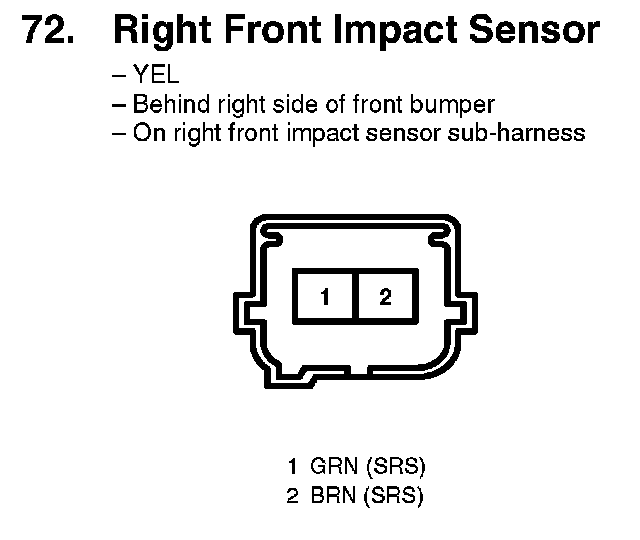

72. Right Front Impact Sensor:



83. Right Side Impact Sensor (1st):

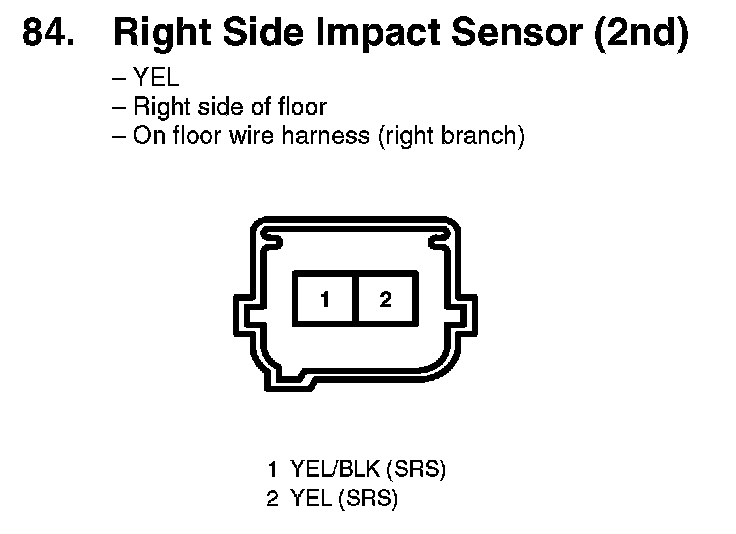

84. Right Side Impact Sensor (2nd):
