Keyless Entry Receiver

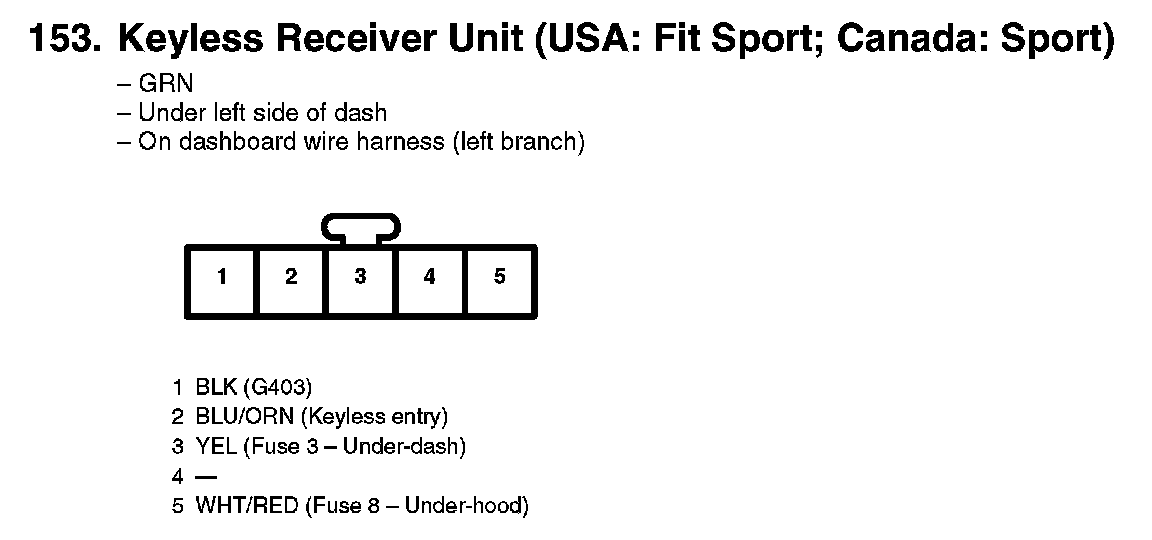

153. Keyless Receiver Unit (USA: Fit Sport; Canada: Sport):

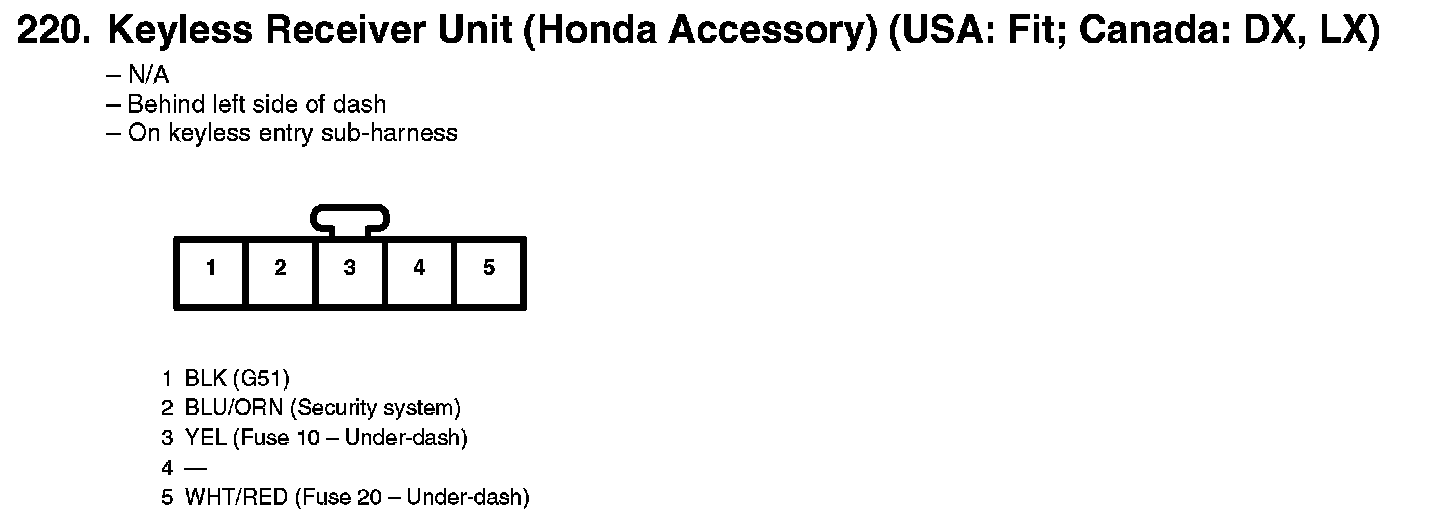

220. Keyless Receiver Unit (Honda Accessory) (USA: Fit; Canada: DX, LX):
