Power Door Lock Switch

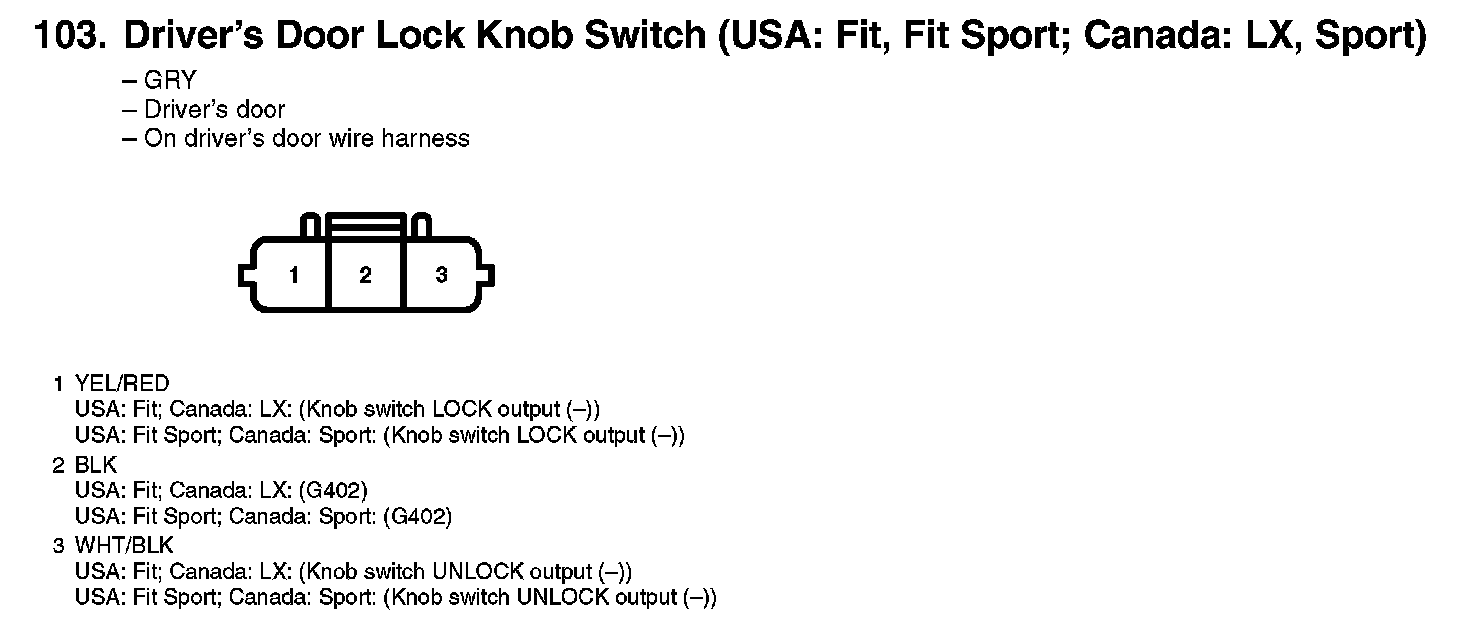

103. Driver's Door Lock Knob Switch (USA: Fit, Fit Sport; Canada: LX, Sport):

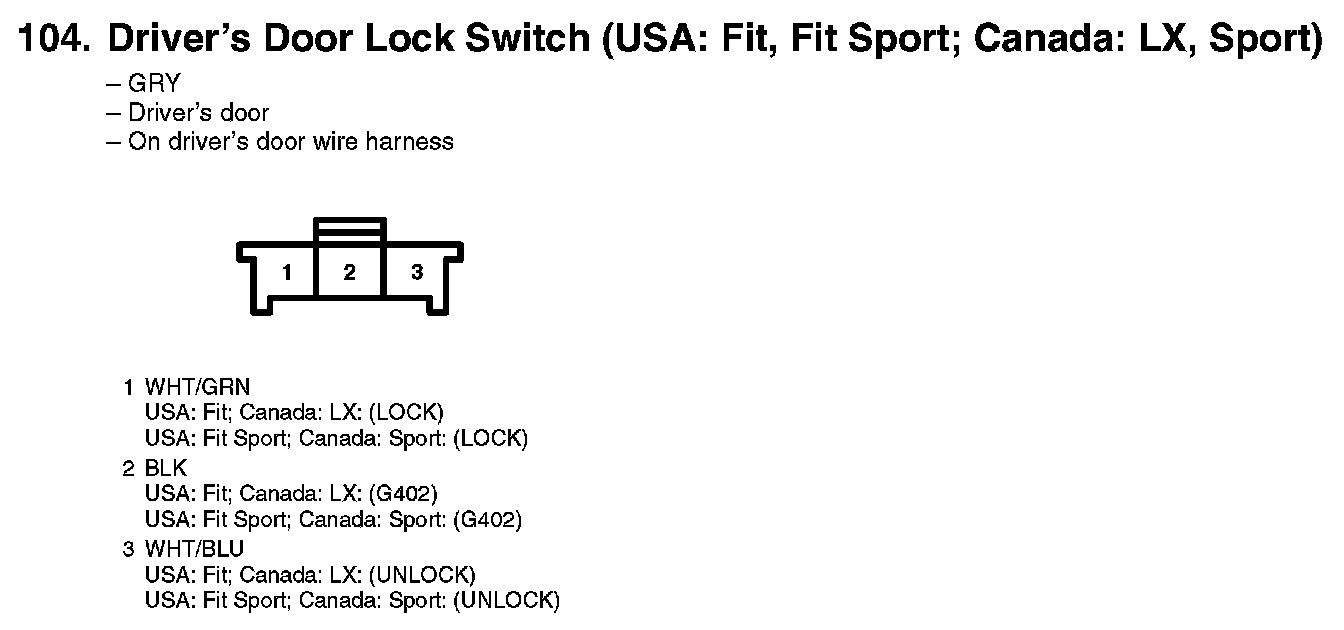

104. Driver's Door Lock Switch (USA: Fit, Fit Sport; Canada: LX, Sport):

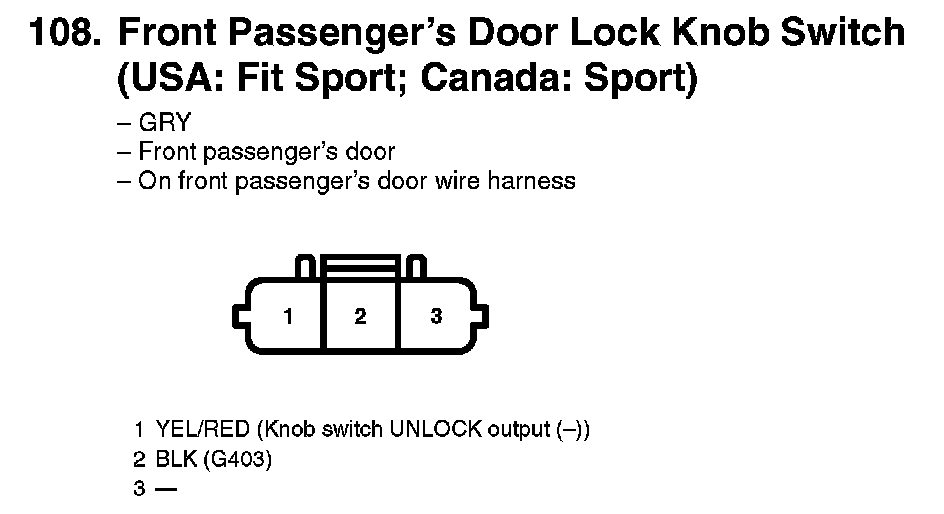

108. Front Passenger's Door Lock Knob Switch (USA: Fit Sport; Canada: Sport):

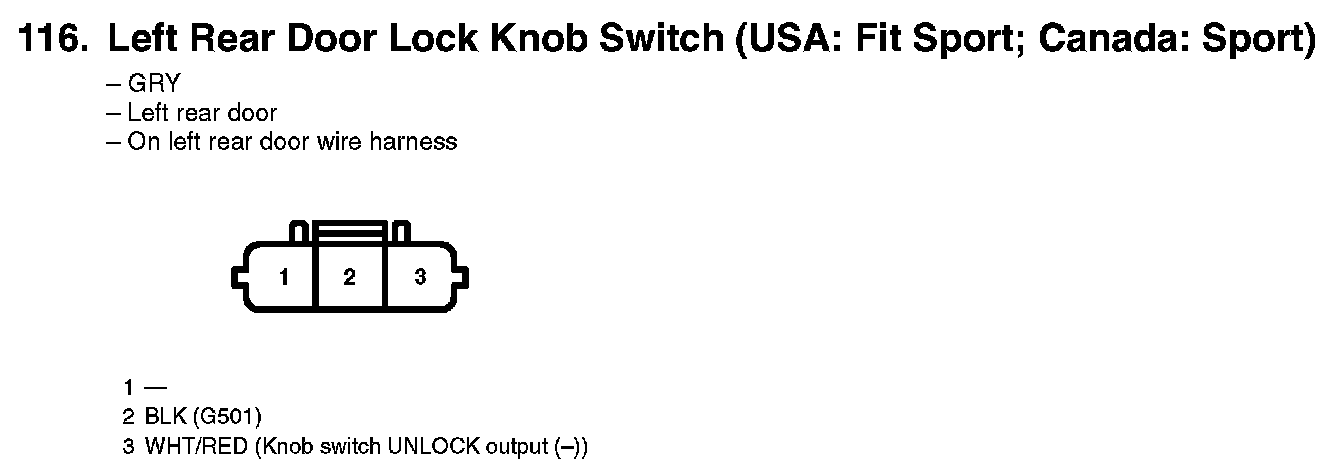

116. Left Rear Door Lock Knob Switch (USA: Fit Sport; Canada: Sport):

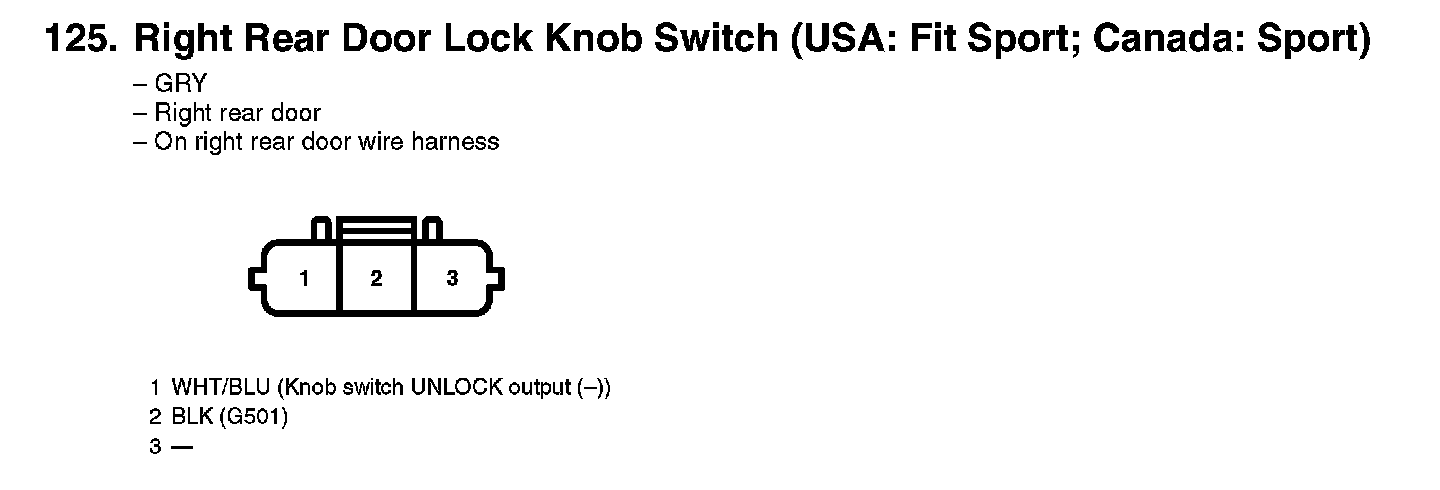

125. Right Rear Door Lock Knob Switch (USA: Fit Sport; Canada: Sport):
