Trunk / Liftgate Switch

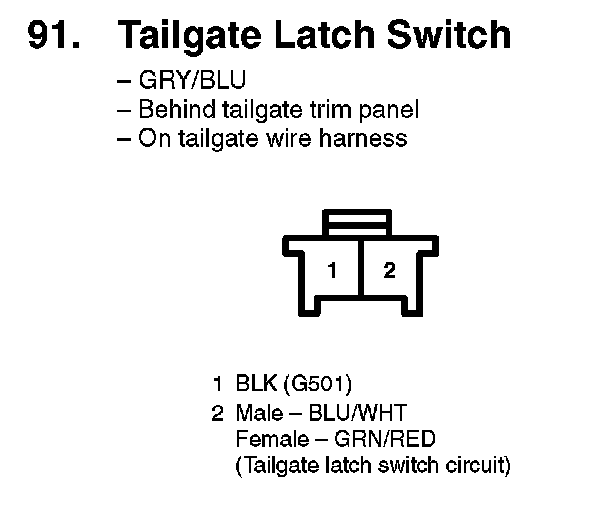

91. Tailgate Latch Switch:

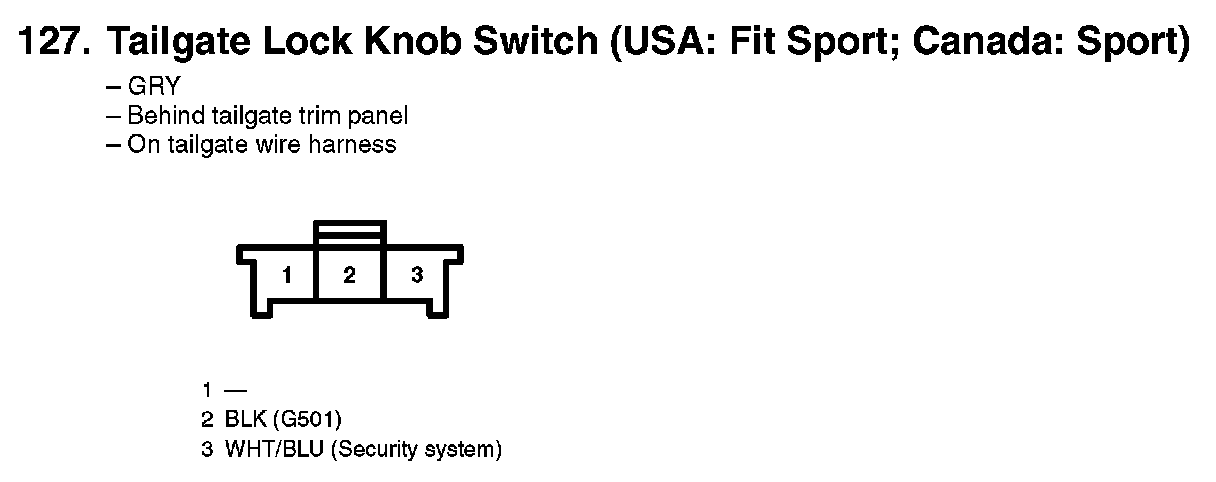

127. Tailgate Lock Knob Switch (USA: Fit Sport; Canada: Sport):
