Heater-A/C Control Panel Removal and Installation
Heater-A/C Control Panel Removal and Installation1. Remove the center panel.
2. Remove the rear window defogger and A/C switch, and the passenger's airbag cutoff indicator from the center panel.

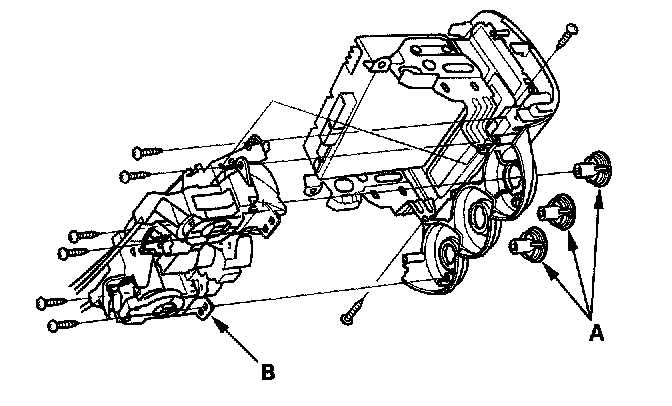

3. Remove the dials (A), then remove the self-tapping screws and the heater-A/C control panel (B).
4. Install the control panel in the reverse order of removal, and note these items:
- Adjust the air mix control cable, the mode control cable, and the recirculation control cable.
- After installation, operate the control panel controls to see whether it works properly.
