Air Temperature Sensor ( Ambient / Intake ): Service and Repair

IAT Sensor Replacement

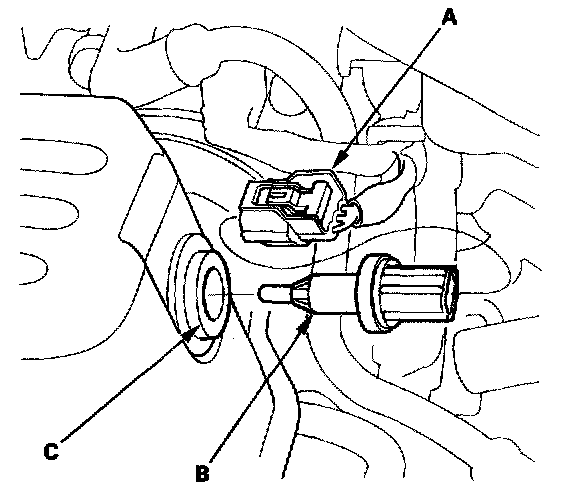

1. Disconnect the IAT 2P connector (A).




2. Pull the sensor (B) out of its grommet (C).
3. Install the parts in the reverse order of removal.
