Manifold Pressure/Vacuum Sensor: Service and Repair

MAP Sensor Replacement

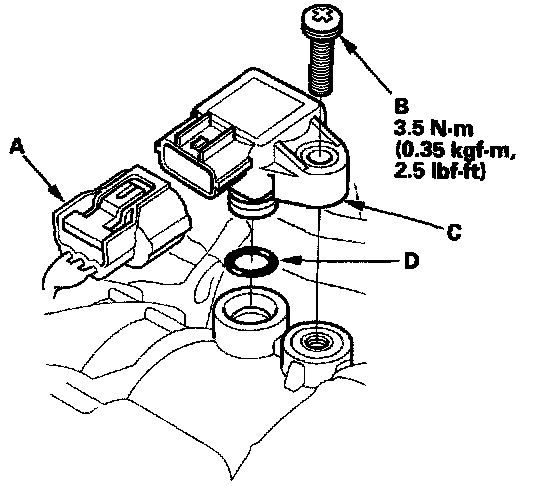

1. Disconnect the MAP sensor 3P connector (A).




2. Remove the screw (B).
3. Remove the MAP sensor (C).
4. Install the parts in the reverse order of removal with a new O-ring (D).
