Variable Valve Timing Actuator: Service and Repair

Rocker Arm Oil Control Valve Removal/Installation

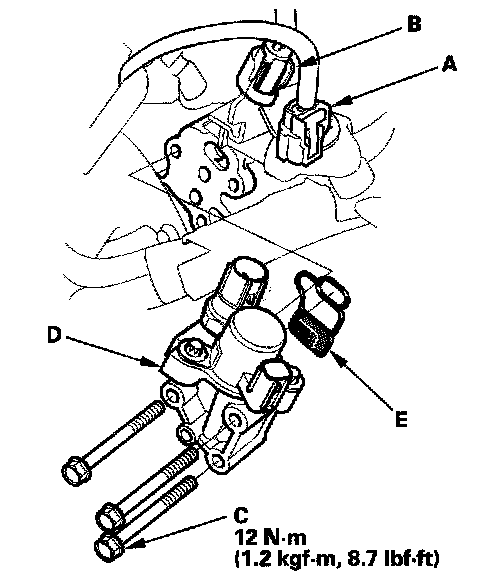

1. Disconnect the rocker arm oil control solenoid 2P connector (A), rocker arm oil pressure switch 2P connector (B), and the bolts (C).
2. Remove the rocker arm oil control valve (D).
3. Install the parts in the reverse order of removal with a new rocker arm oil control valve filter (E).
