Symptom Troubleshooting Index

Symptom Troubleshooting Index

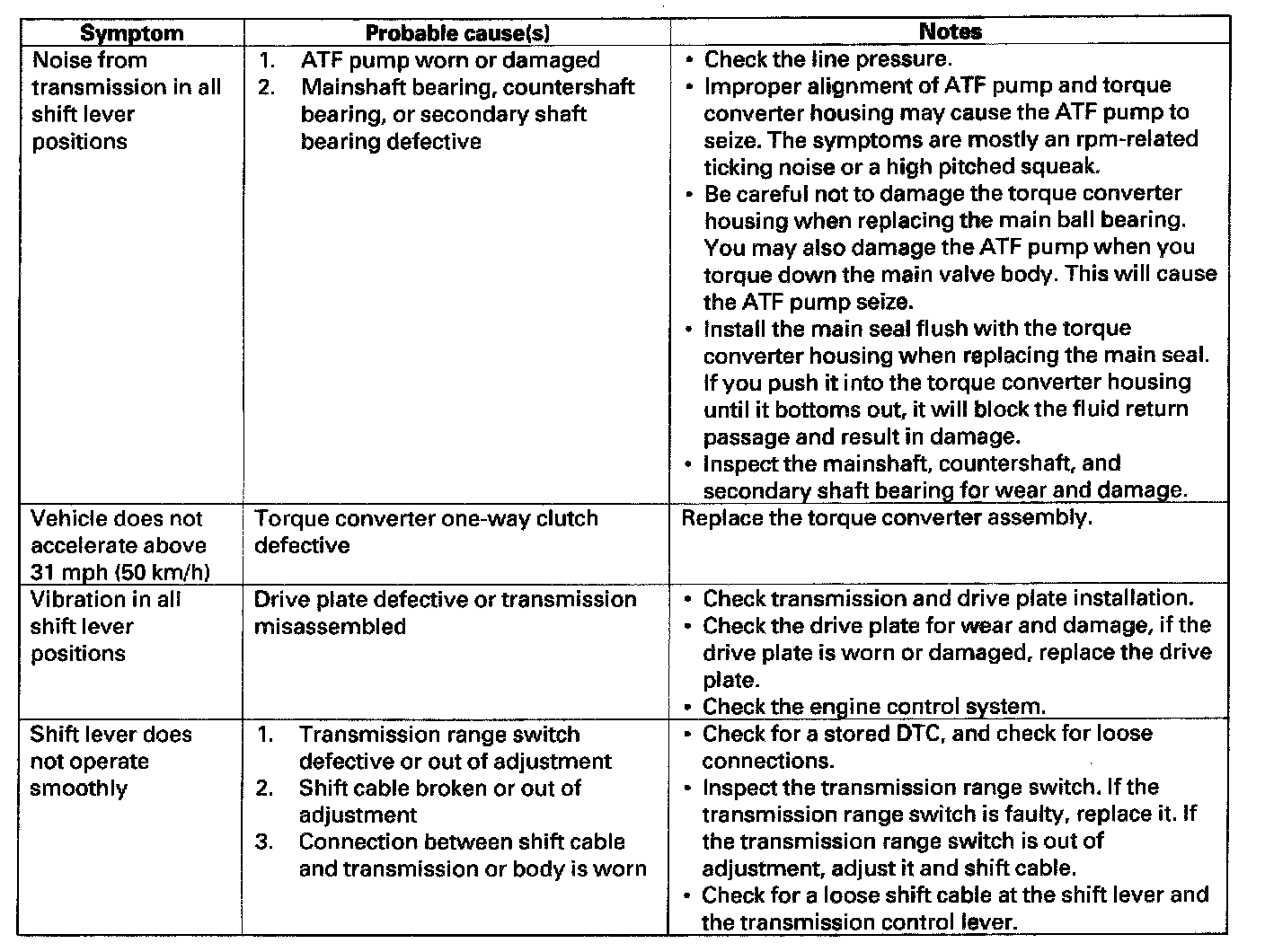

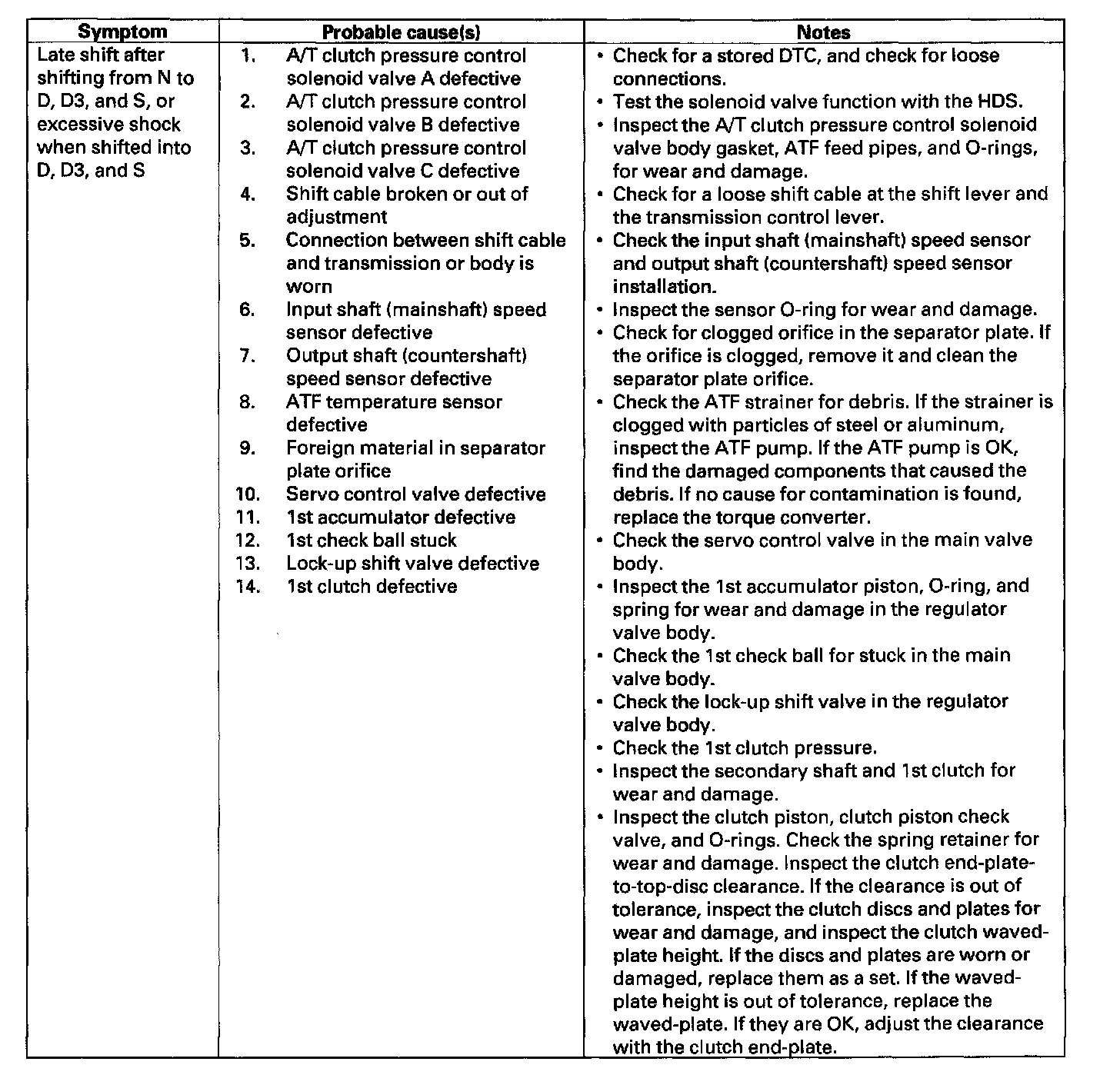

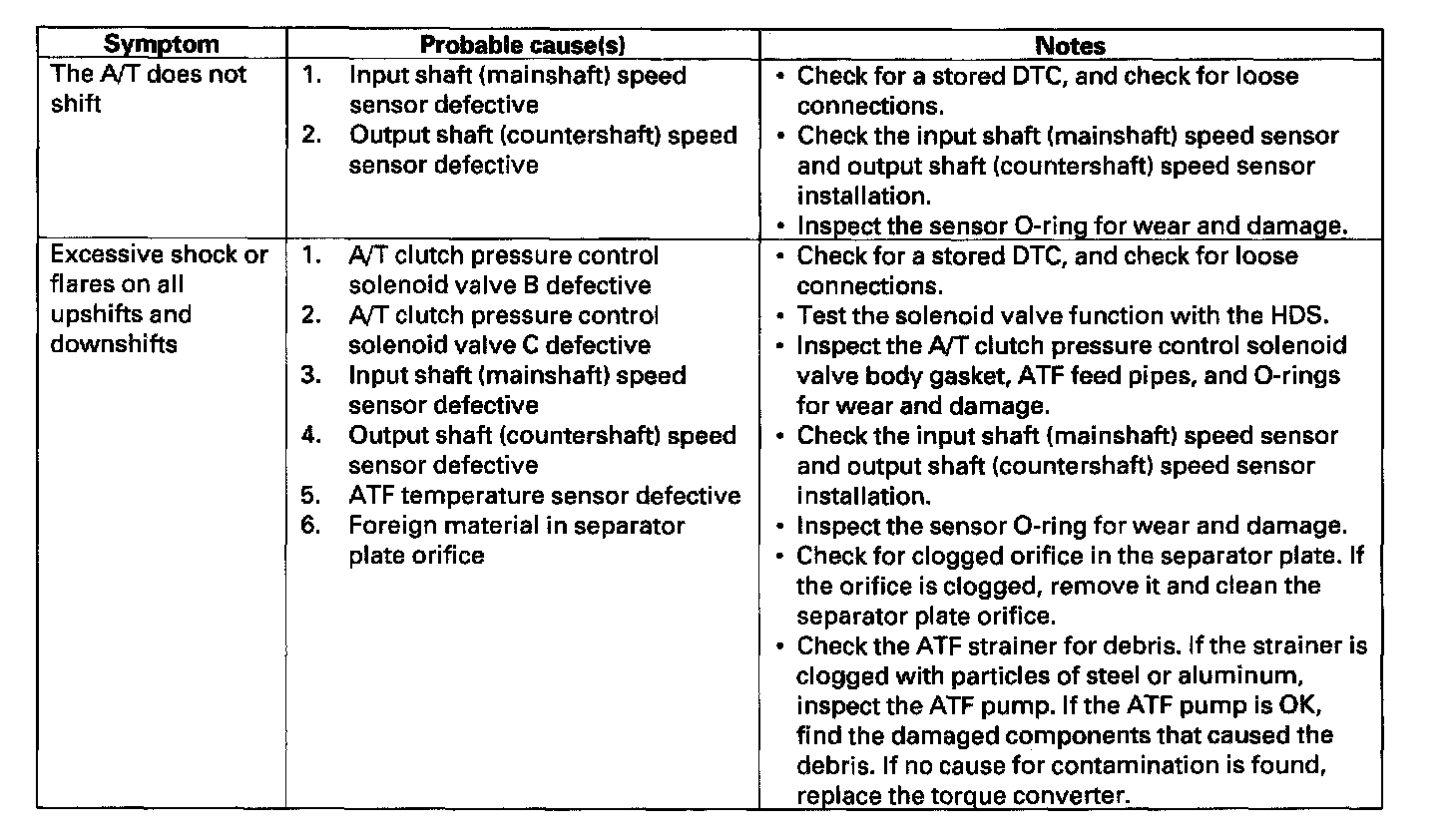

Symptom Troubleshooting Index (Part 1):

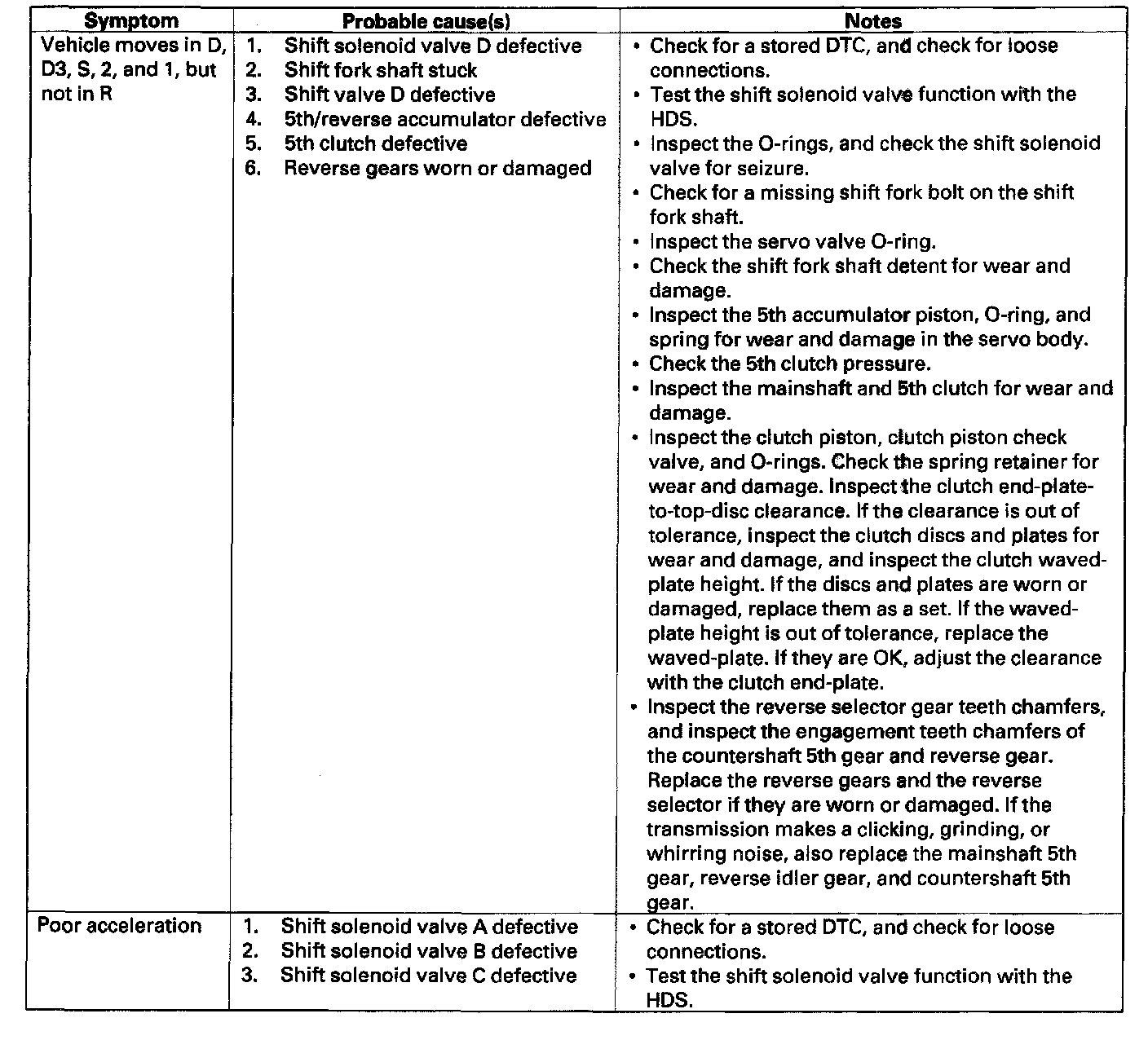

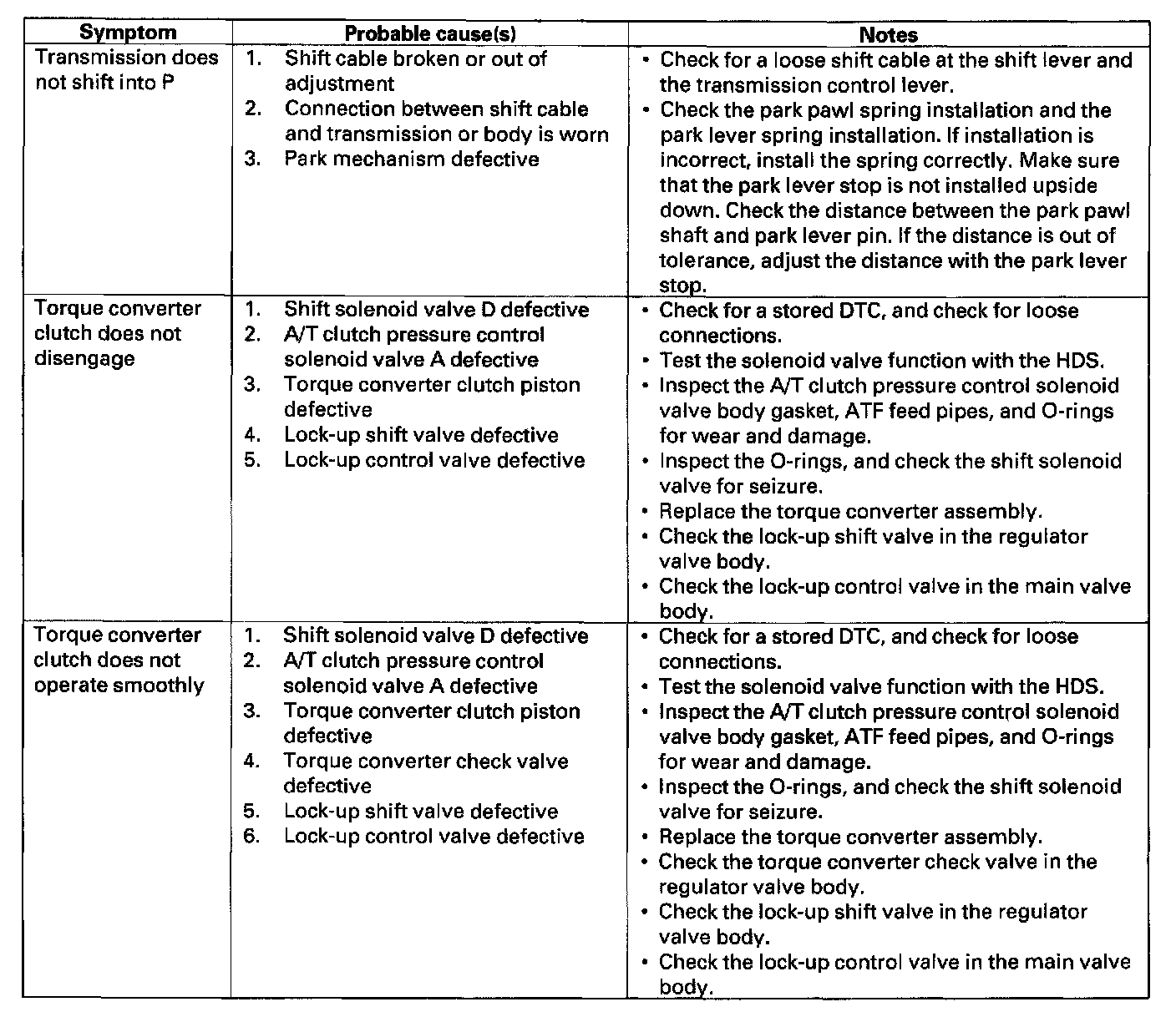

Symptom Troubleshooting Index (Part 2):

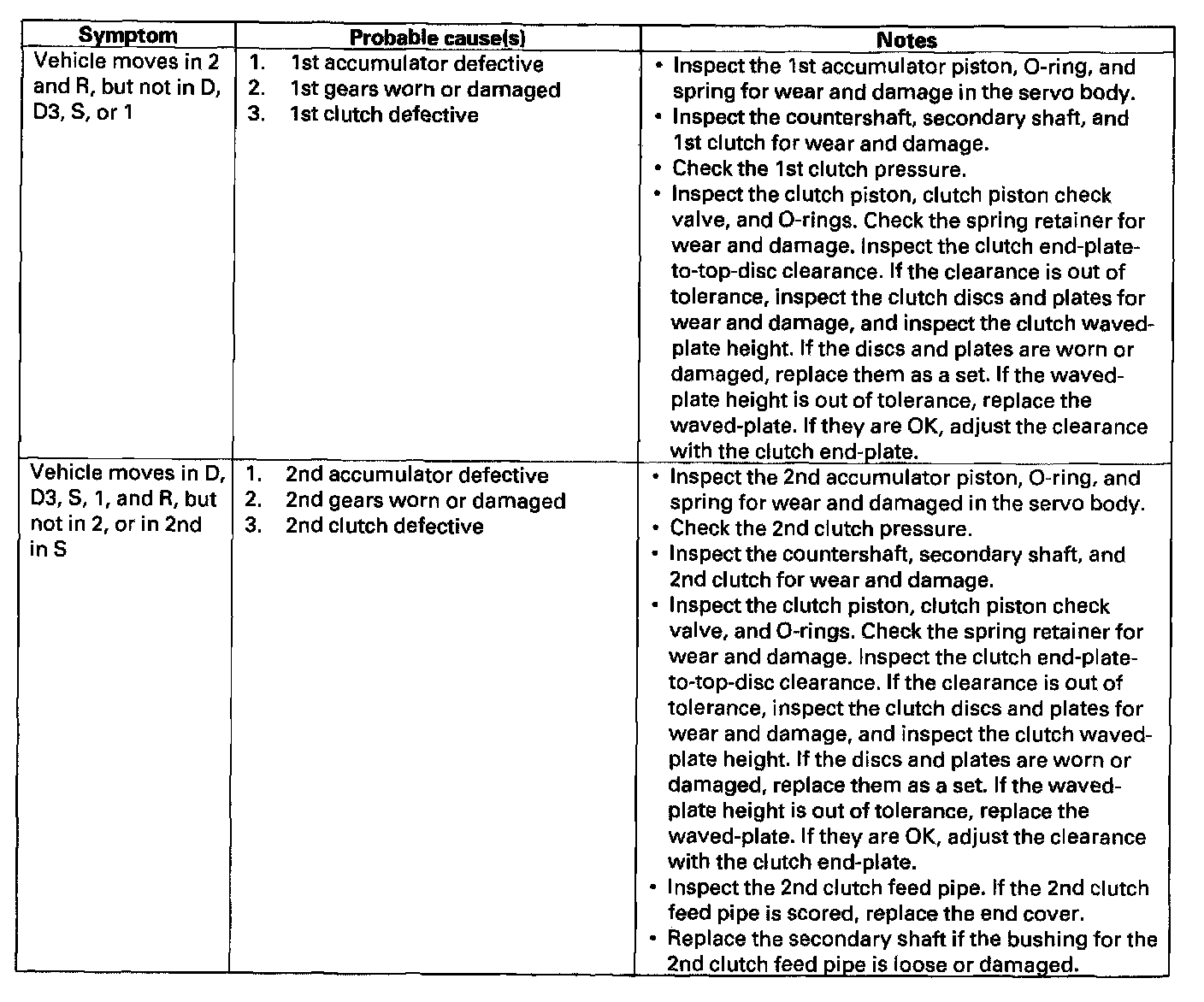

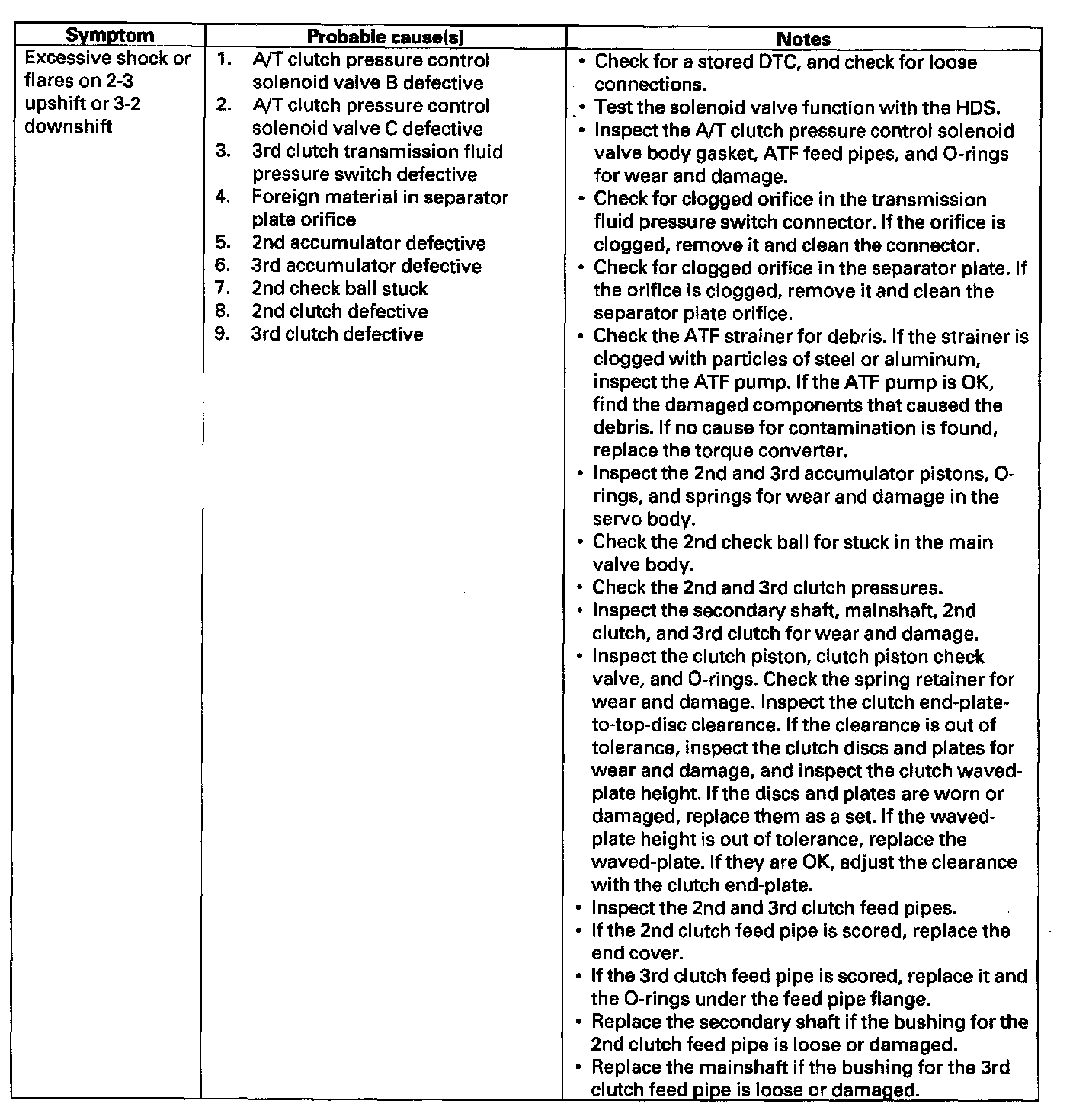

Symptom Troubleshooting Index (Part 3):

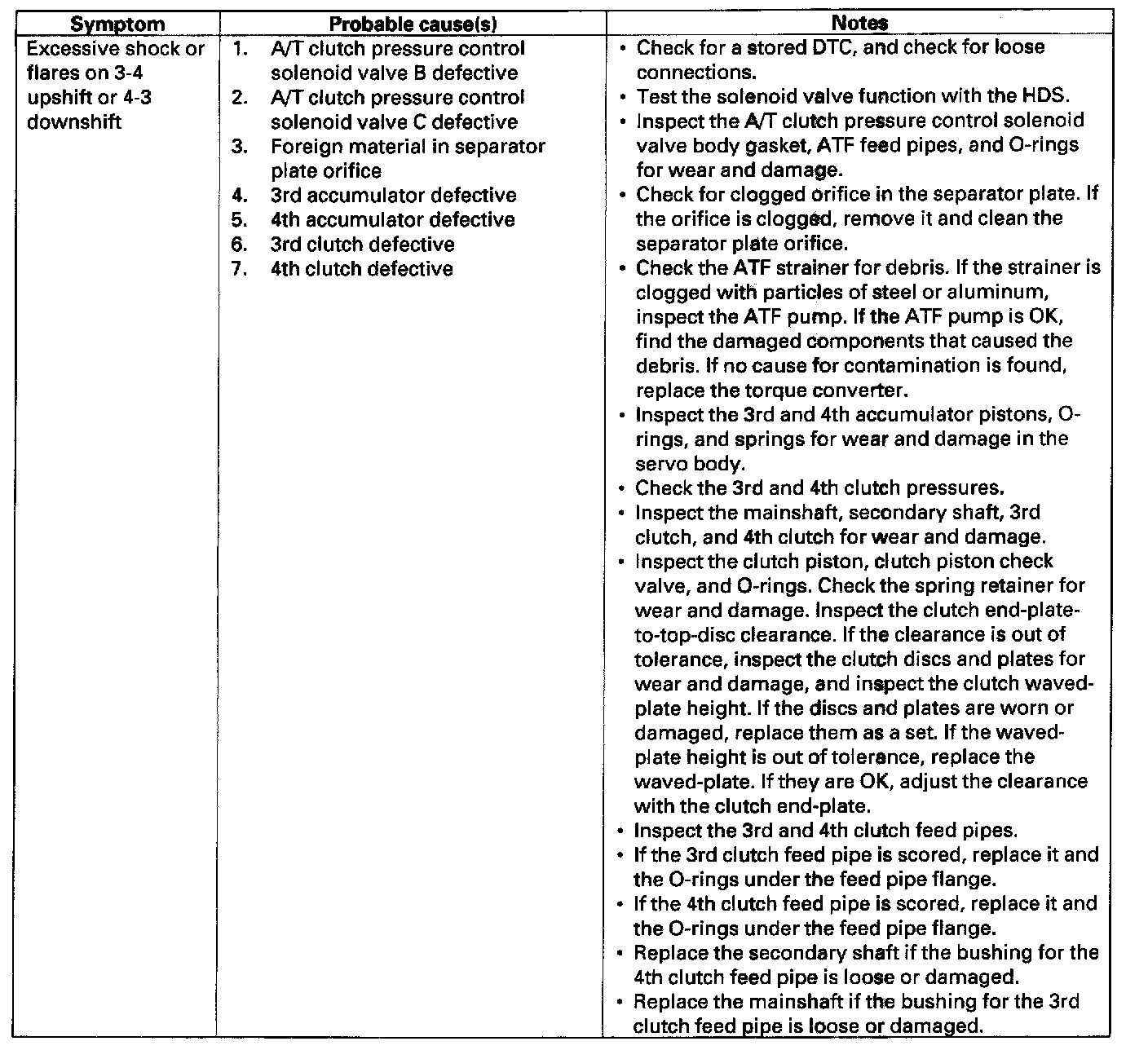

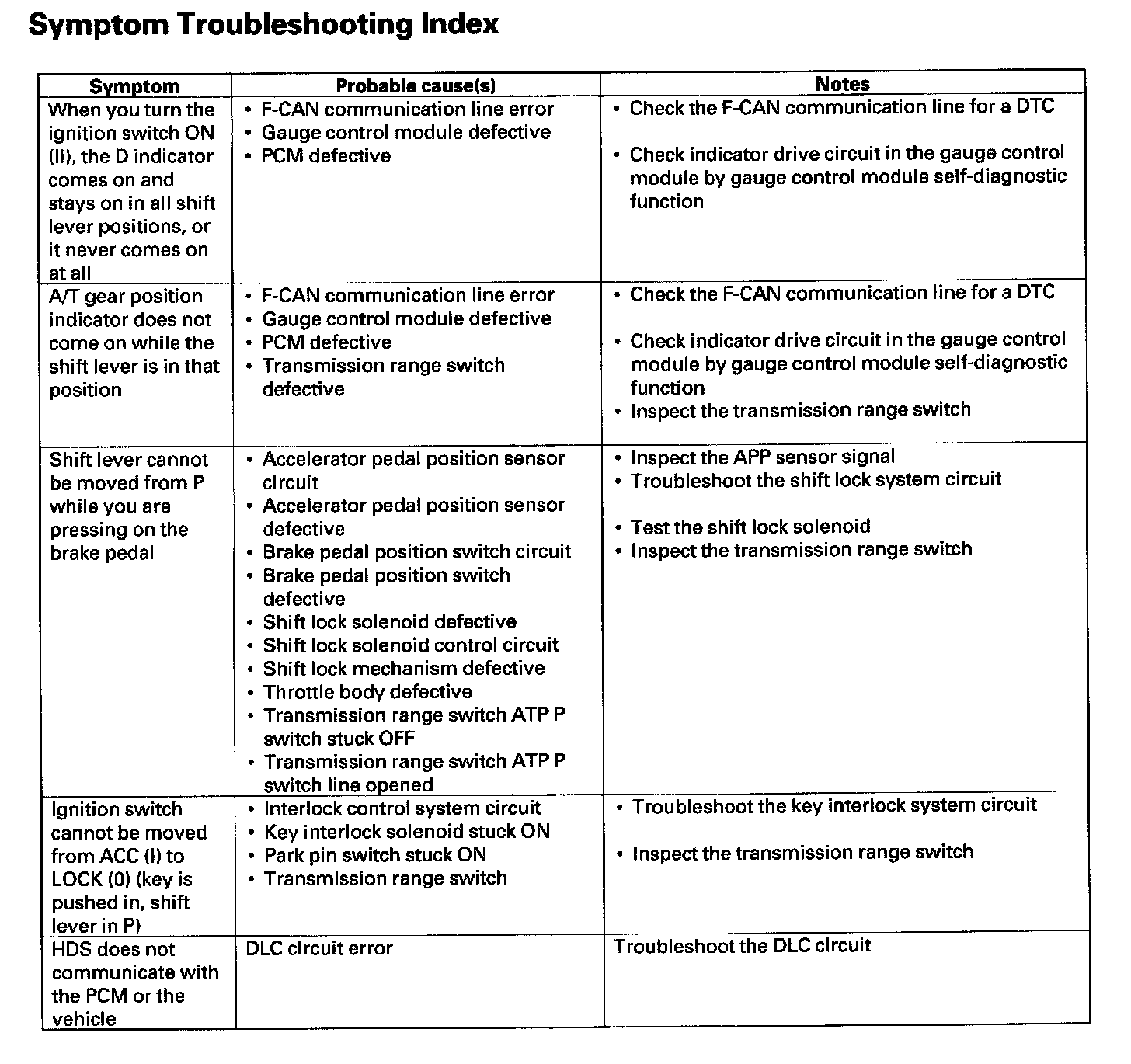

Symptom Troubleshooting Index (Part 4):

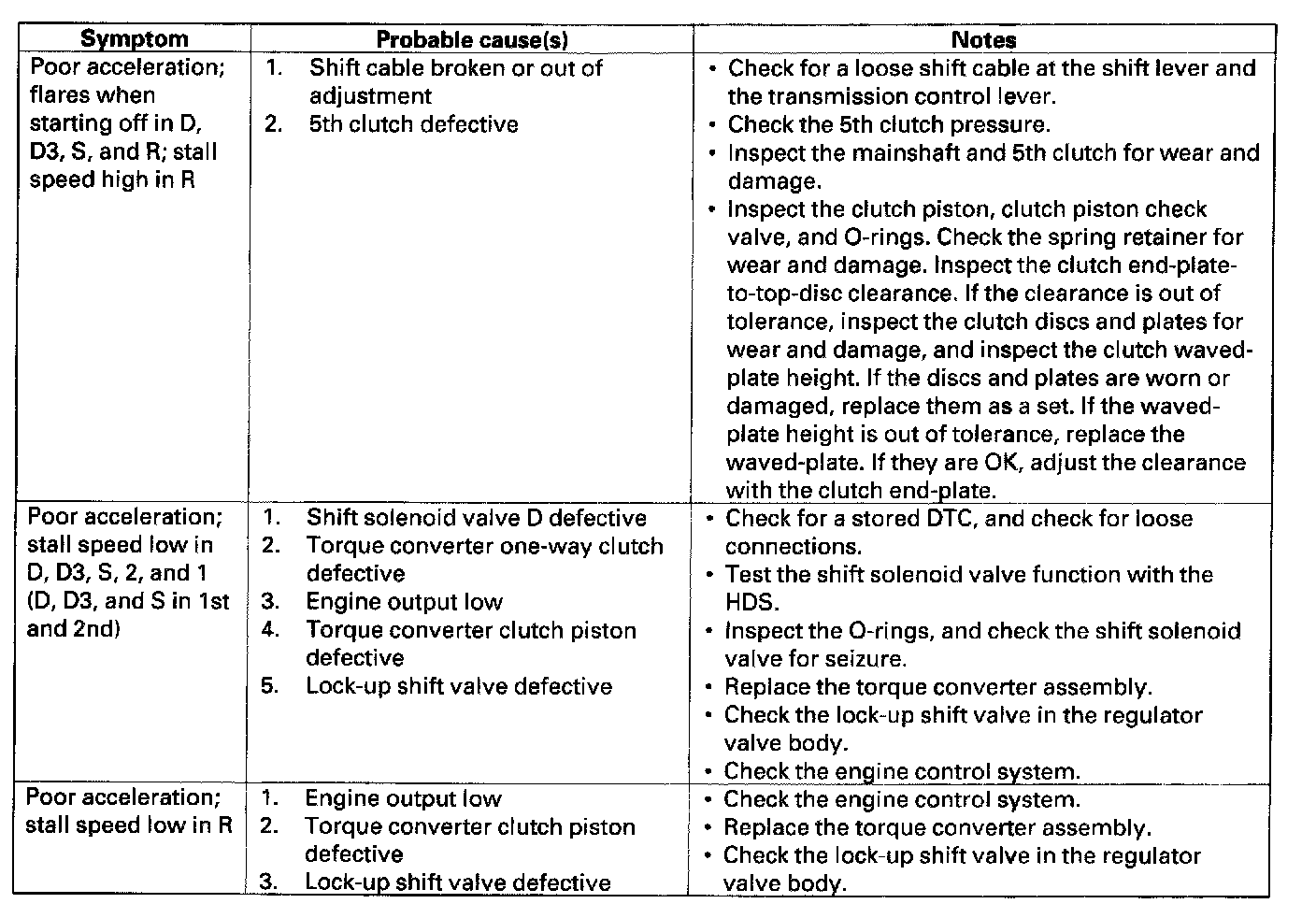

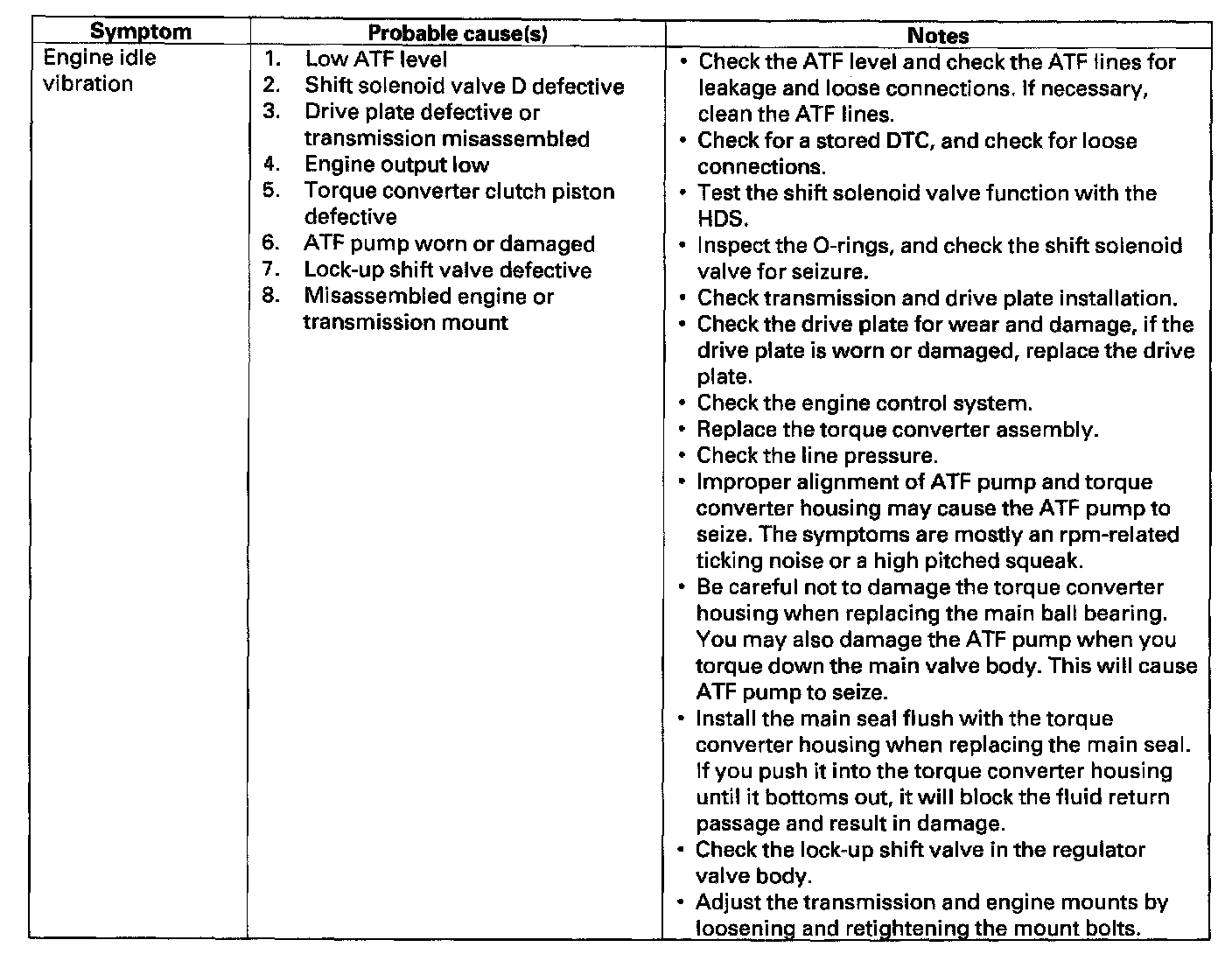

Symptom Troubleshooting Index (Part 5):

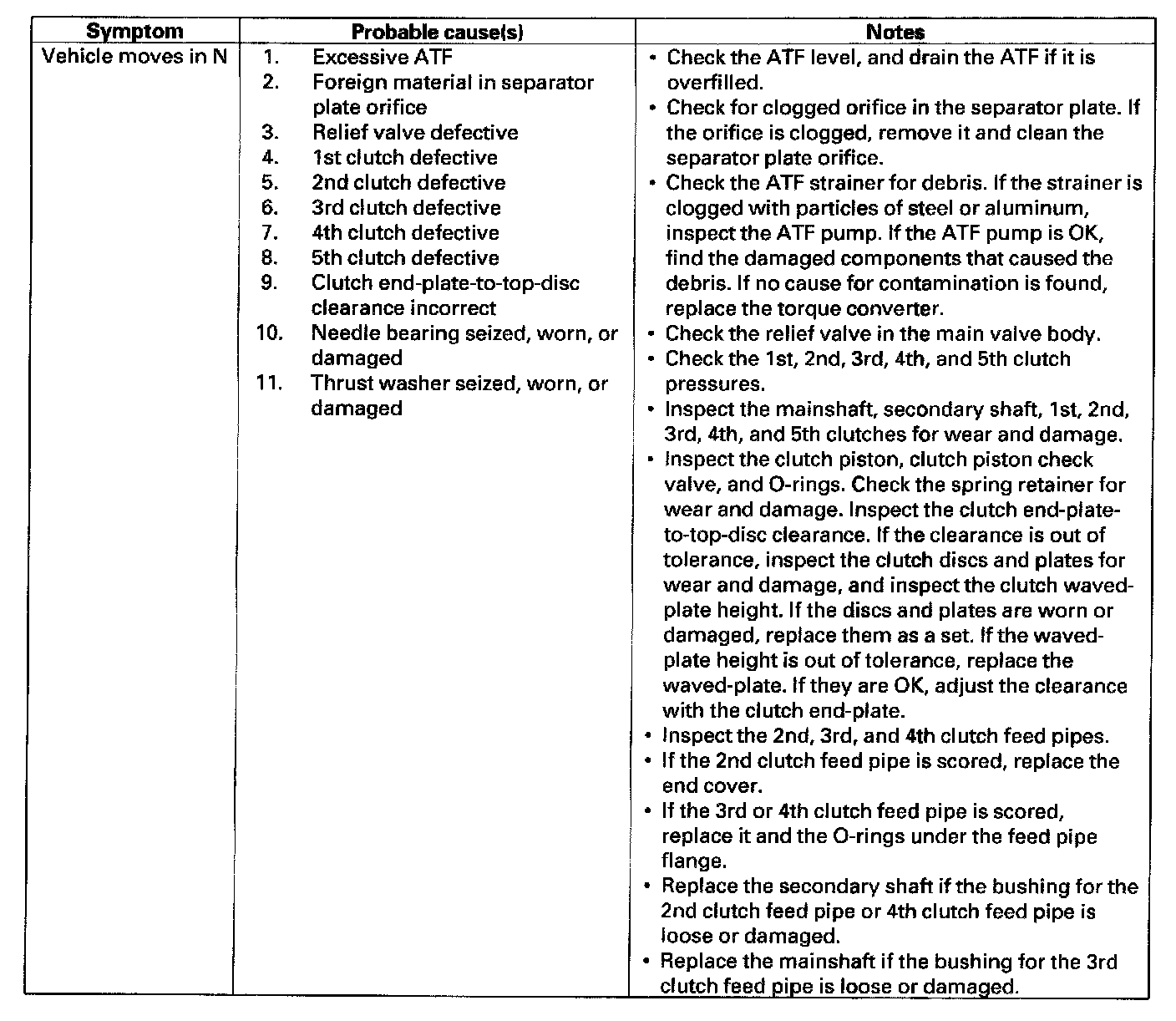

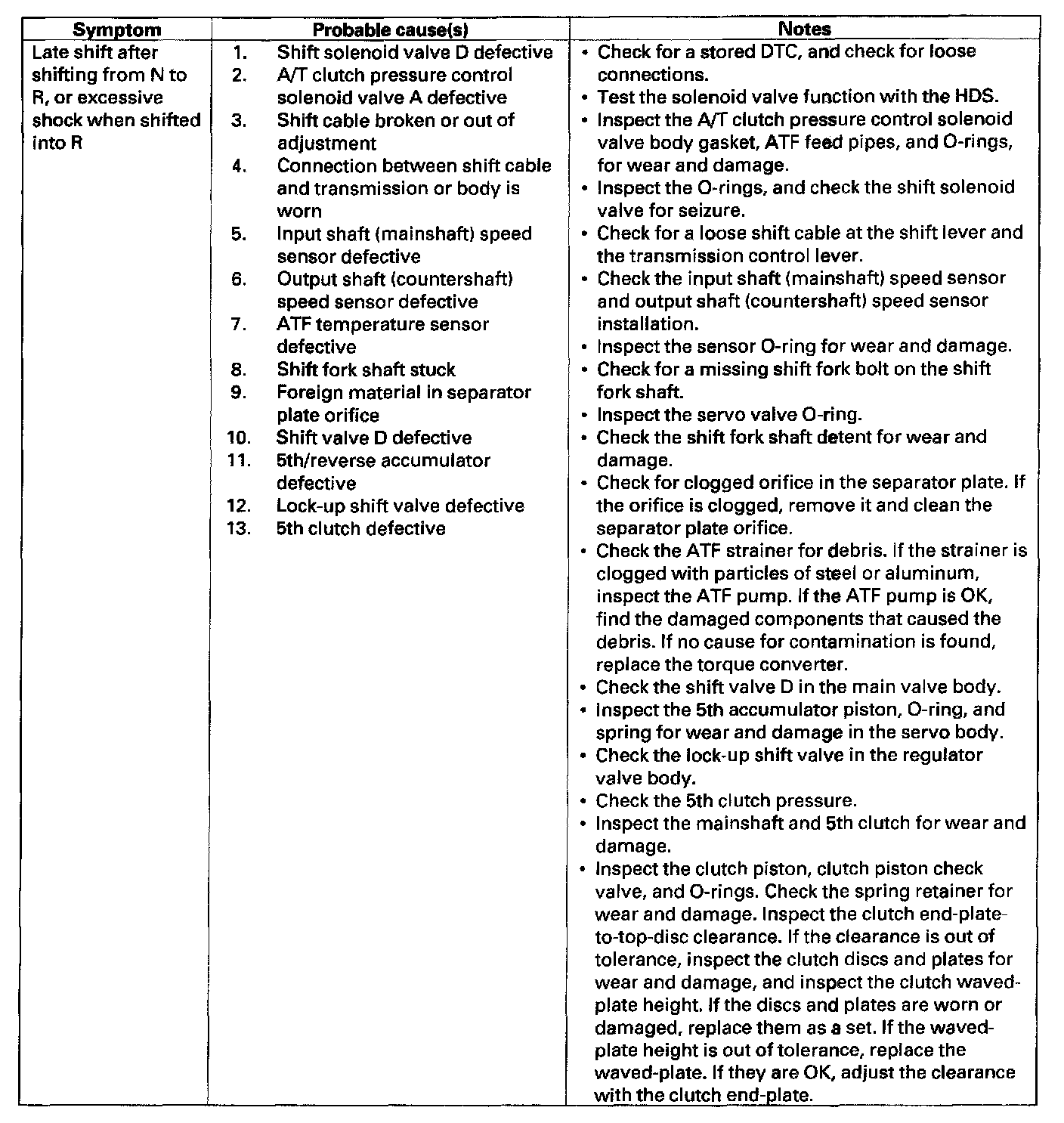

Symptom Troubleshooting Index (Part 6):

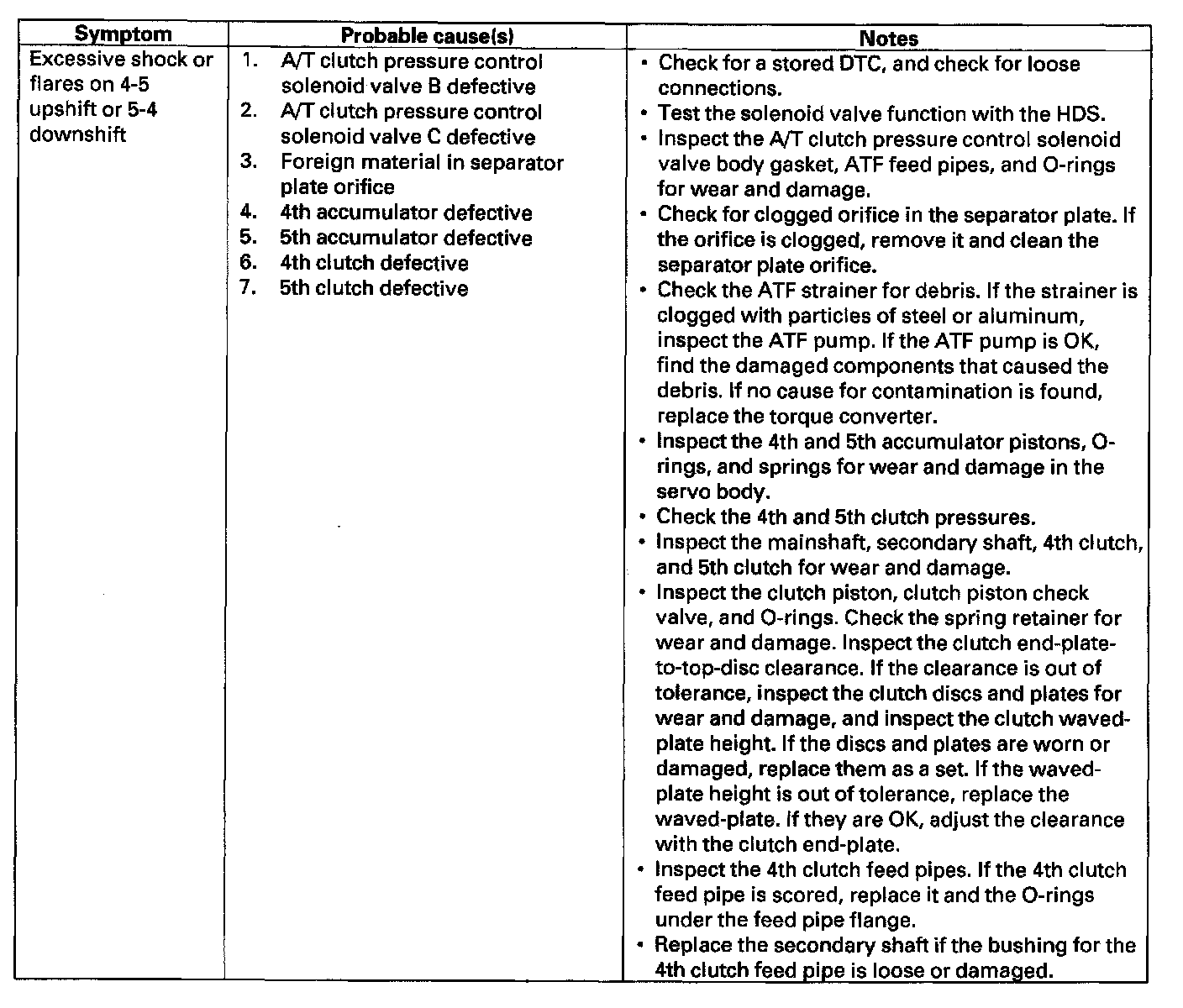

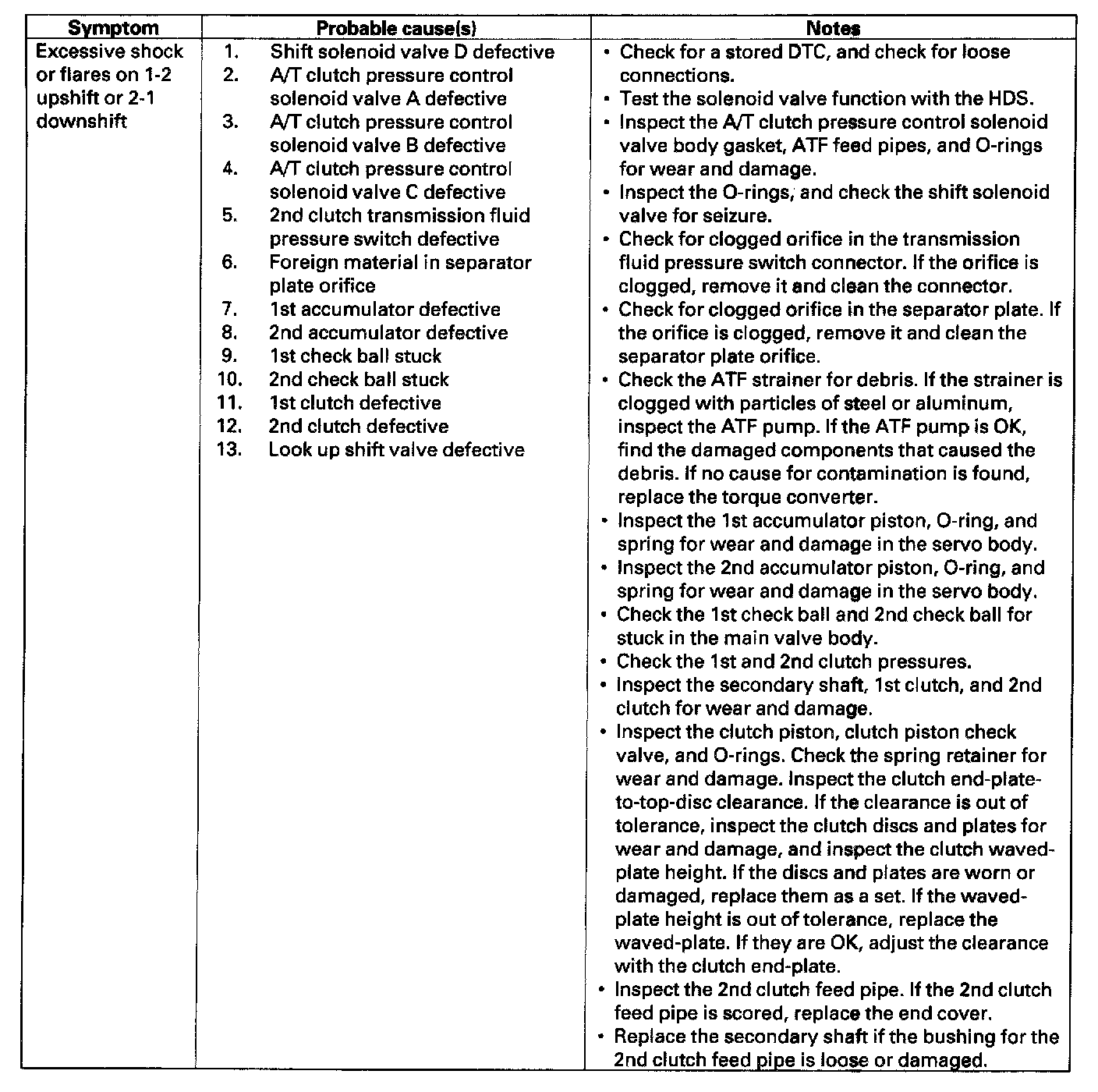

Symptom Troubleshooting Index (Part 7):

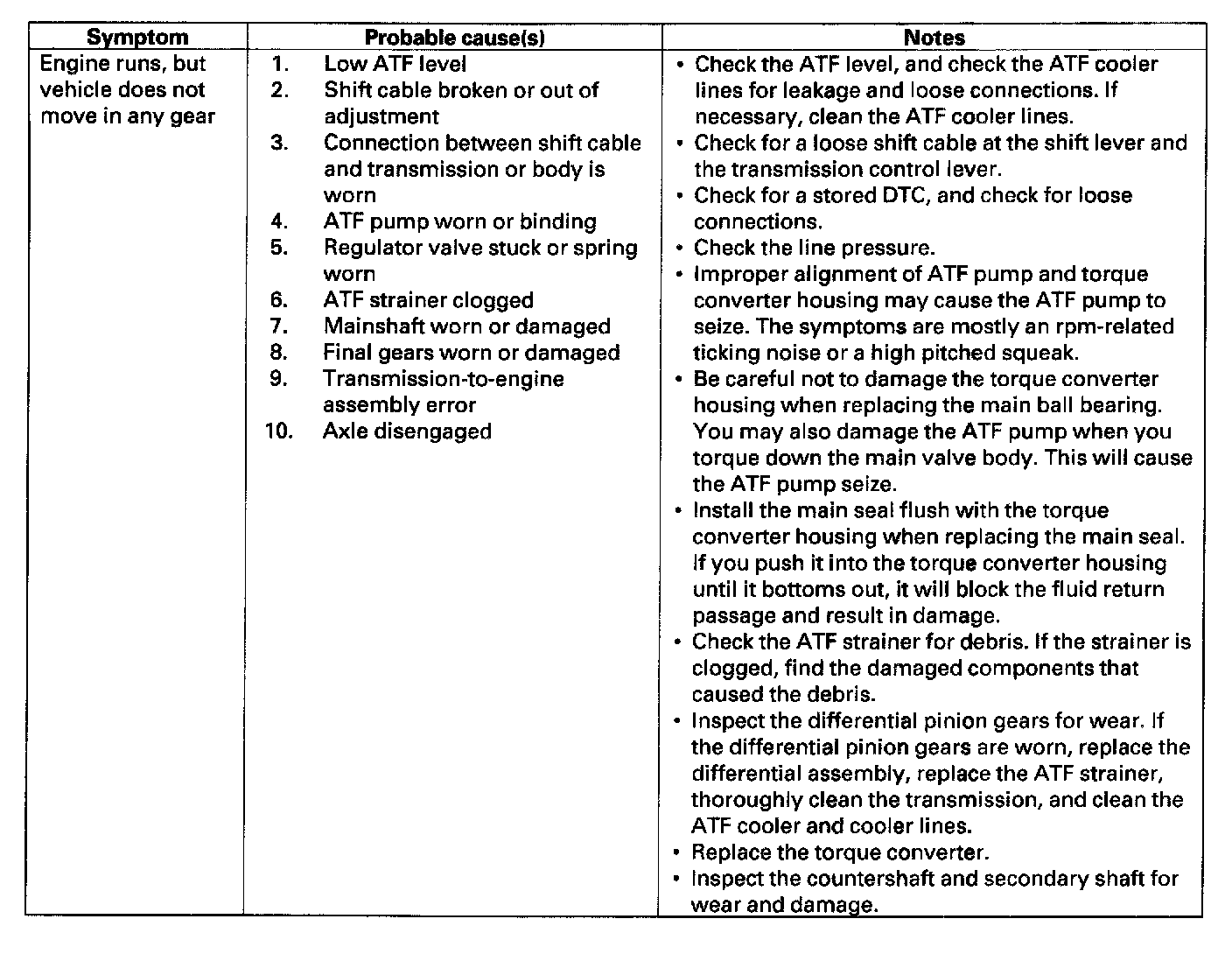

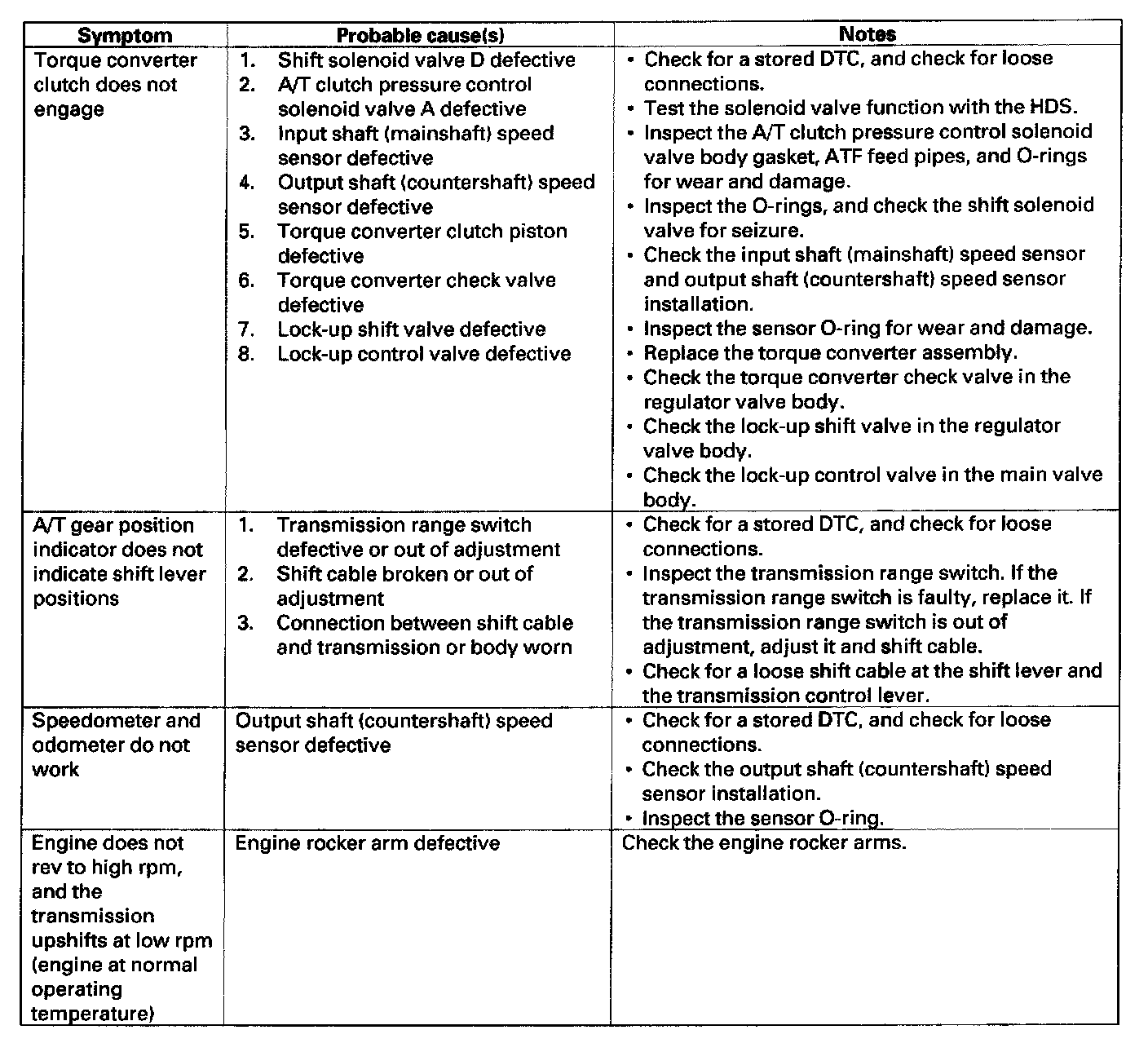

Symptom Troubleshooting Index (Part 8):




Symptom Troubleshooting Index (Part 9):




Symptom Troubleshooting Index (Part 10):




Symptom Troubleshooting Index (Part 11):




Symptom Troubleshooting Index (Part 12):




Symptom Troubleshooting Index (Part 13):




Symptom Troubleshooting Index (Part 14):




Symptom Troubleshooting Index (Part 15):




Symptom Troubleshooting Index (Part 16):




Symptom Troubleshooting Index (Part 17):




Symptom Troubleshooting Index (Part 18):
