Instrument Panel Control Module: Locations

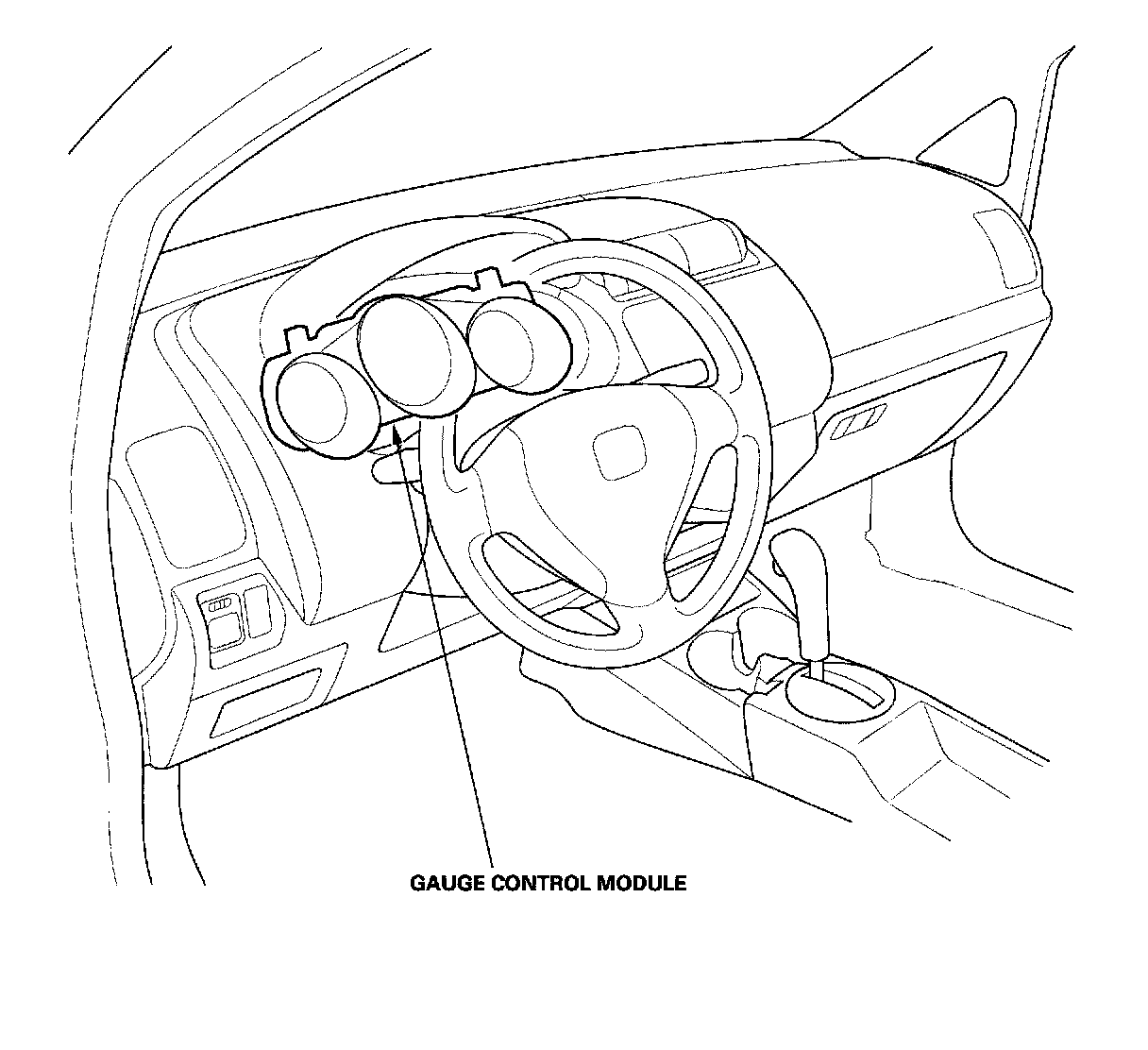

Gauges Component Location Index:

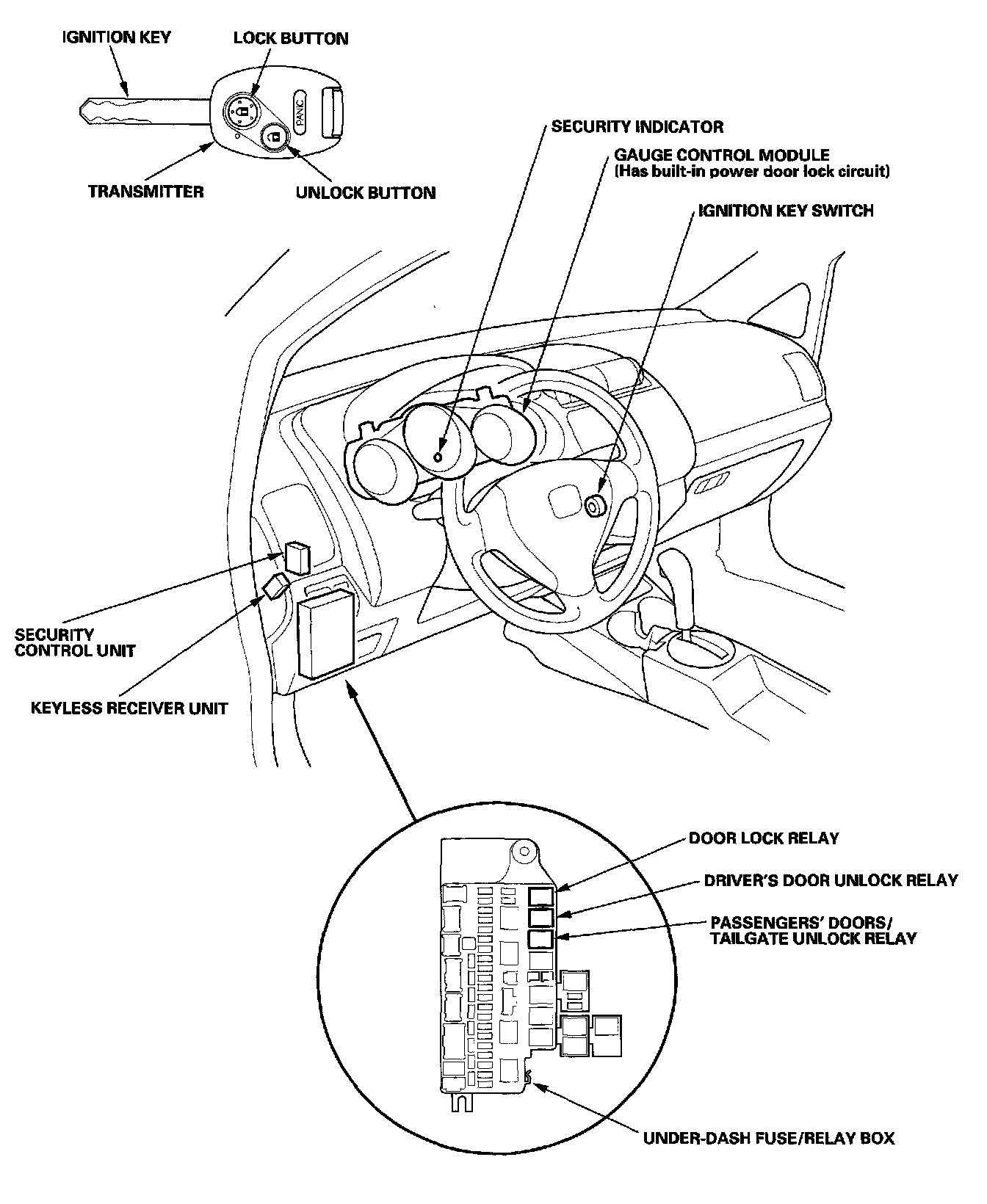

Keyless/power Door Locks/security System Component Location Index:

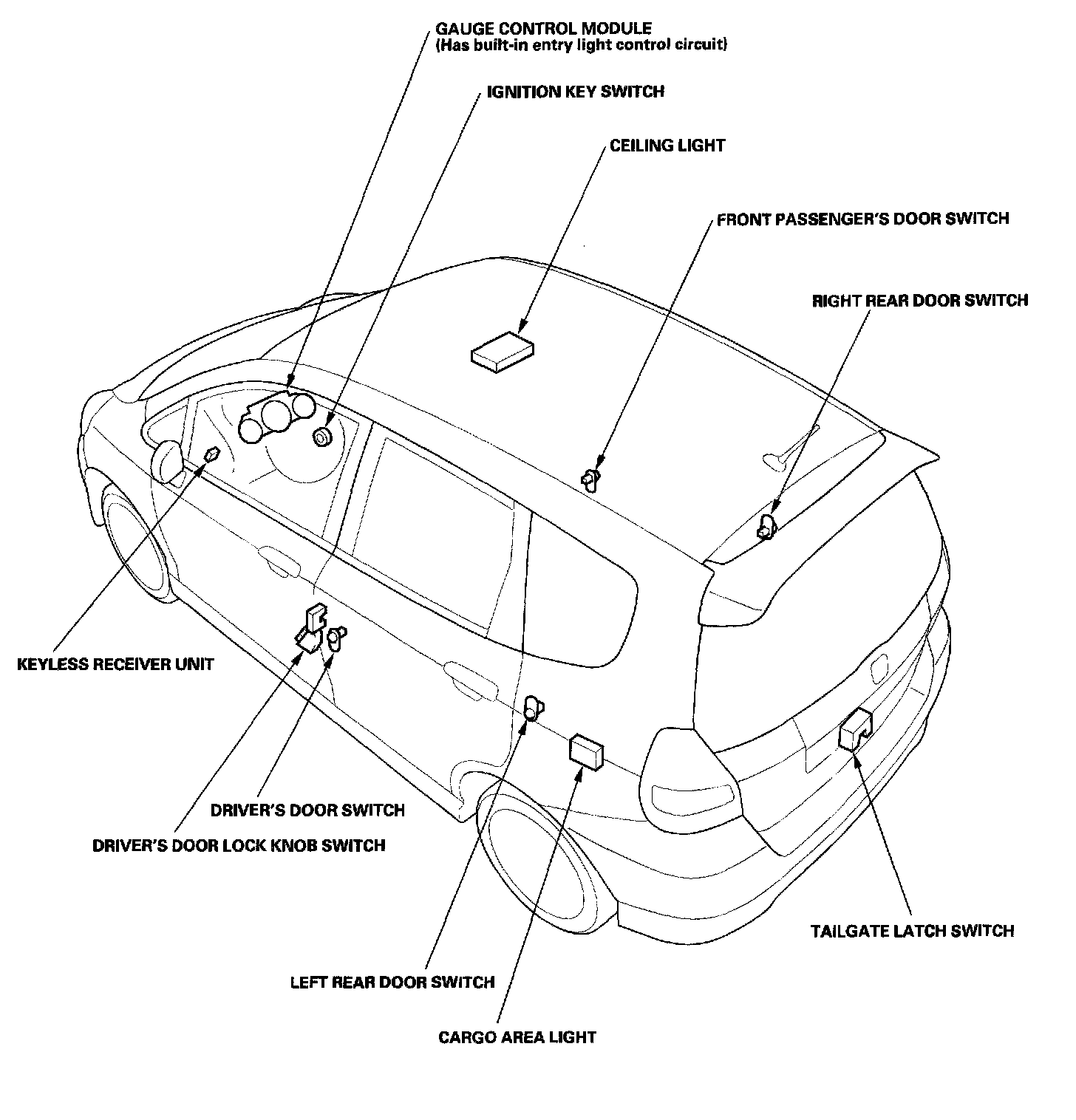

Entry Lights Control System Component Location Index:

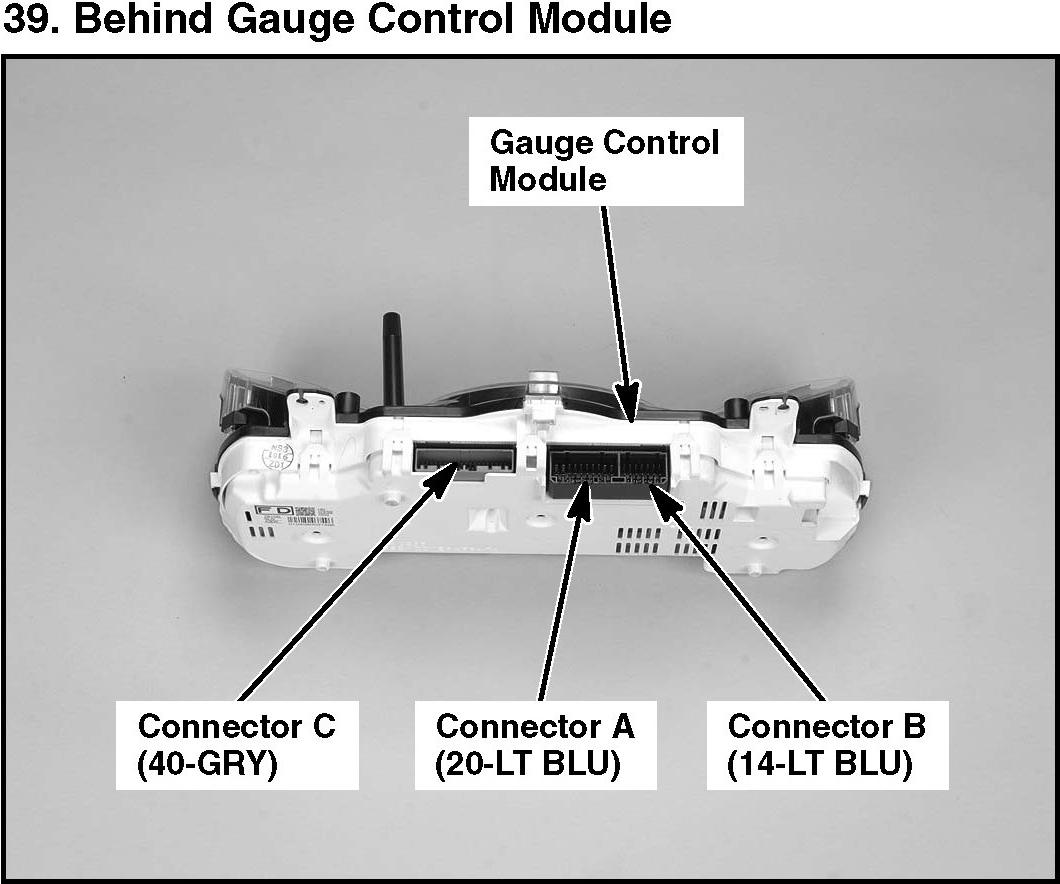

39. Behind Gauge Control Module:
