Service Specifications

Flywheel





Torque in a crisscross pattern in several steps.

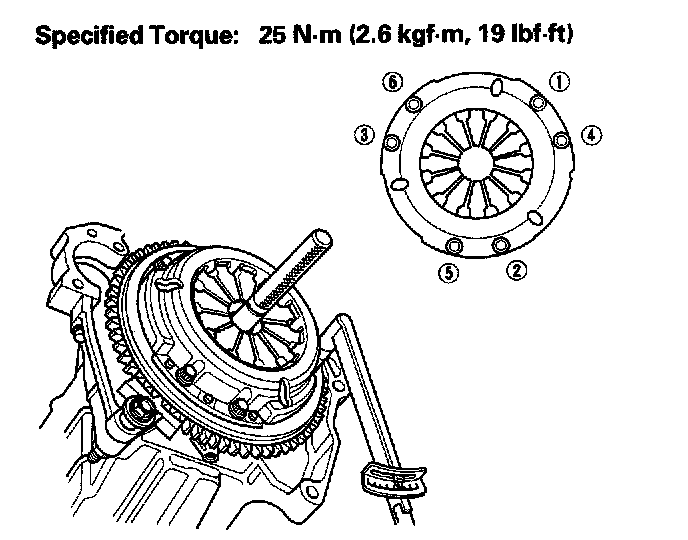

Pressure Plate





Torque the bolts in a crisscross pattern. Tighten the bolts in several steps.
