Steering Control Module: Testing and Inspection

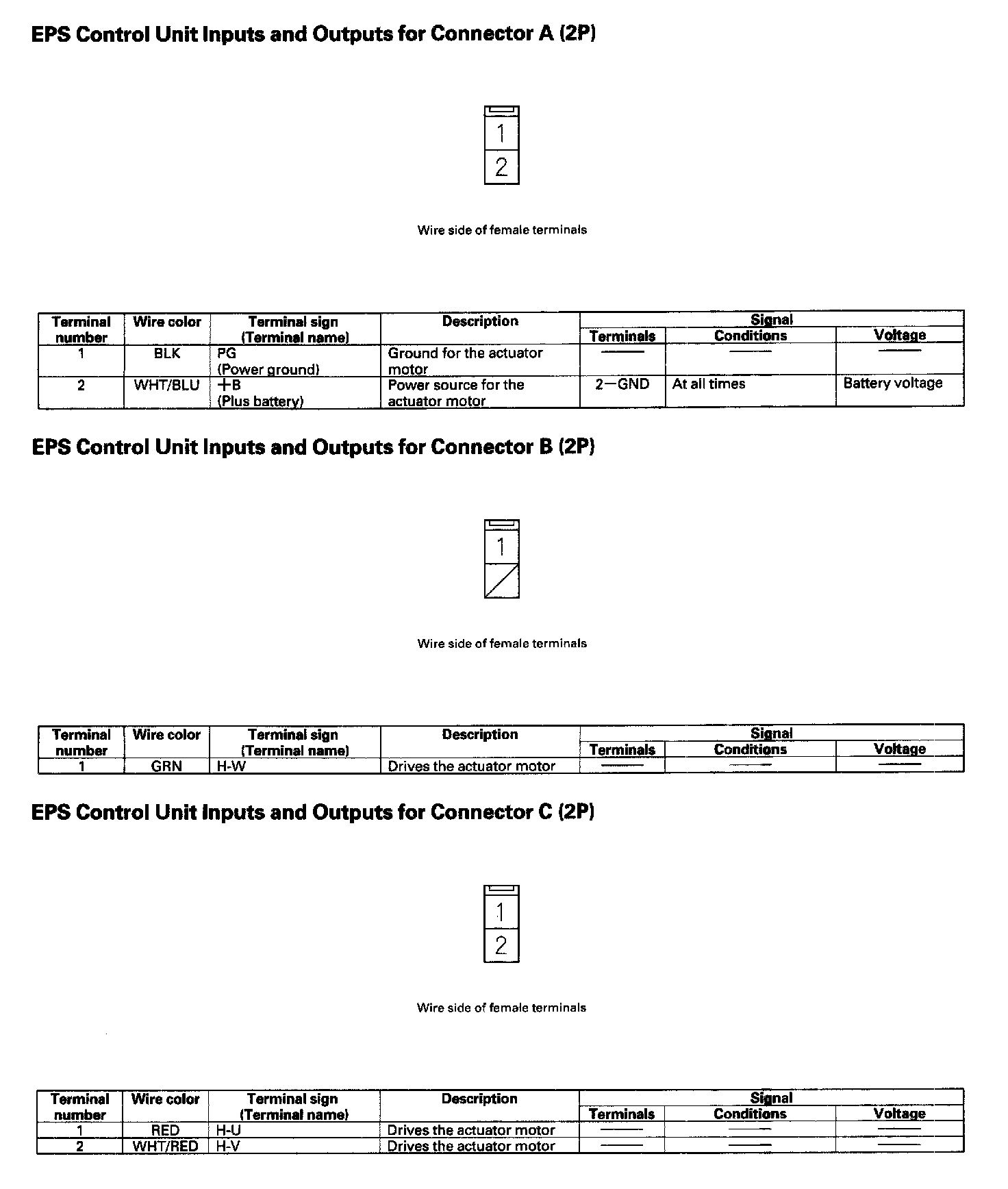

EPS Control Unit Inputs and Outputs (Part 1):

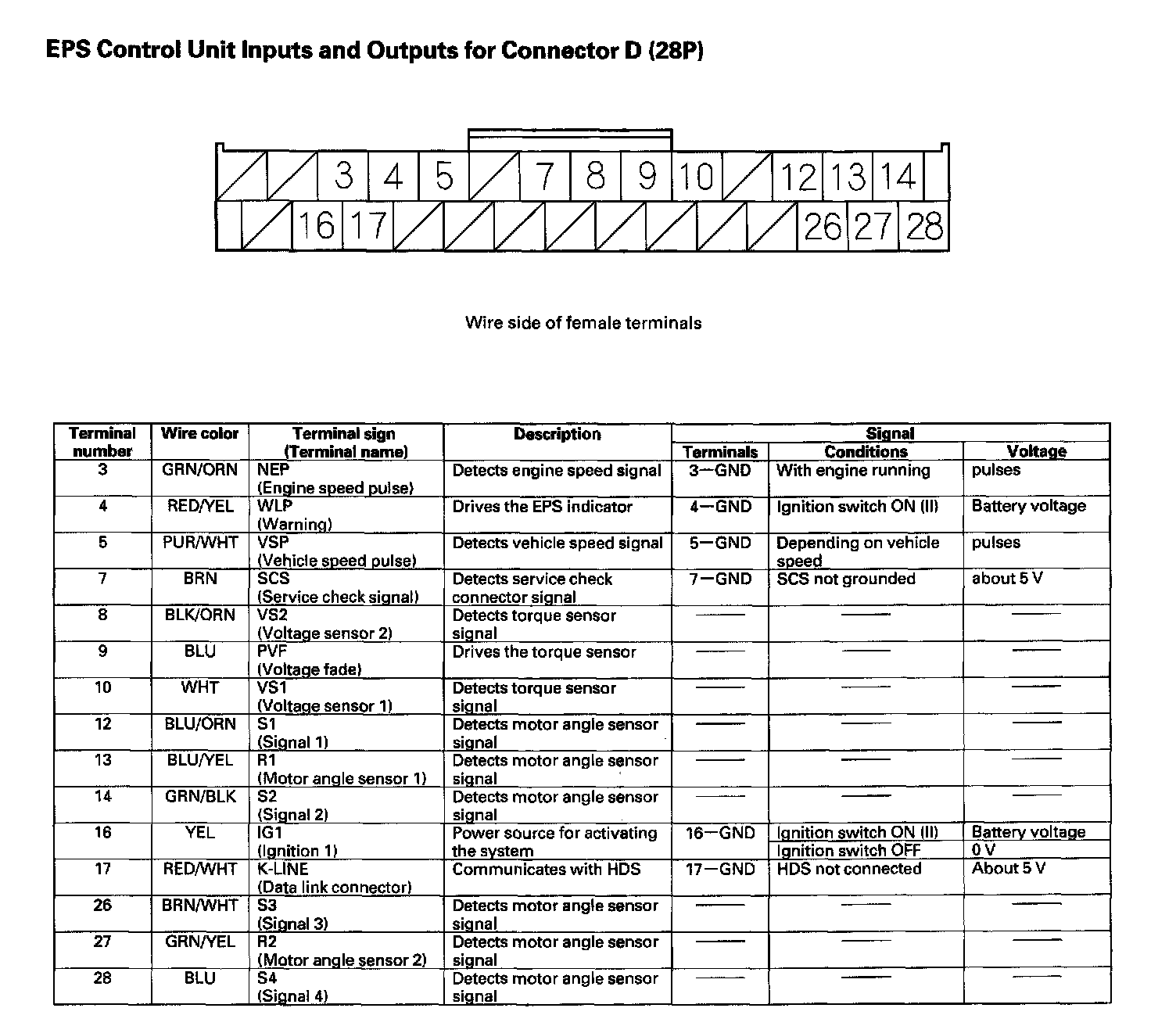

EPS Control Unit Inputs and Outputs (Part 2):
