Power Window Switch: Locations

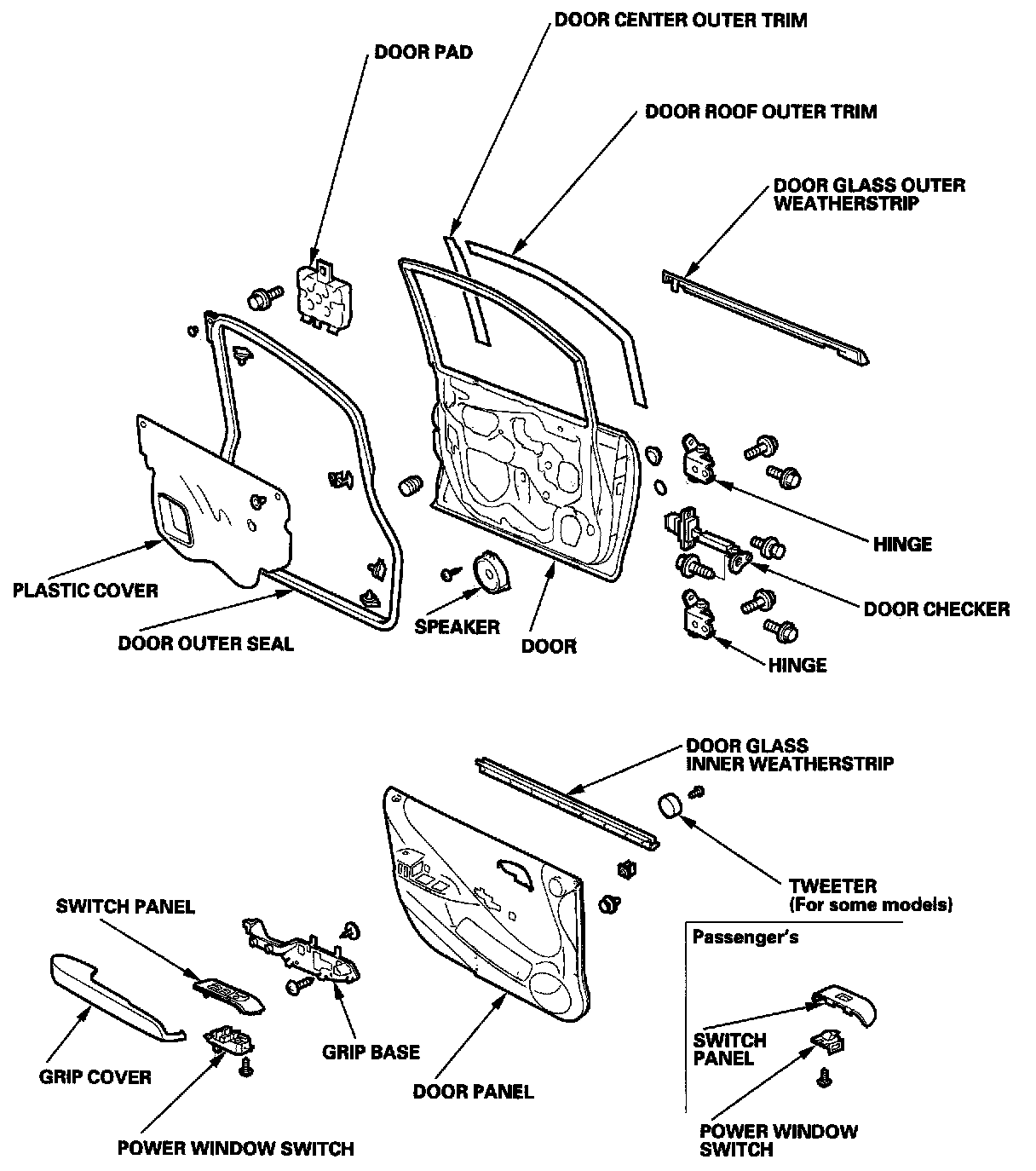

Front Door Component Location Index:

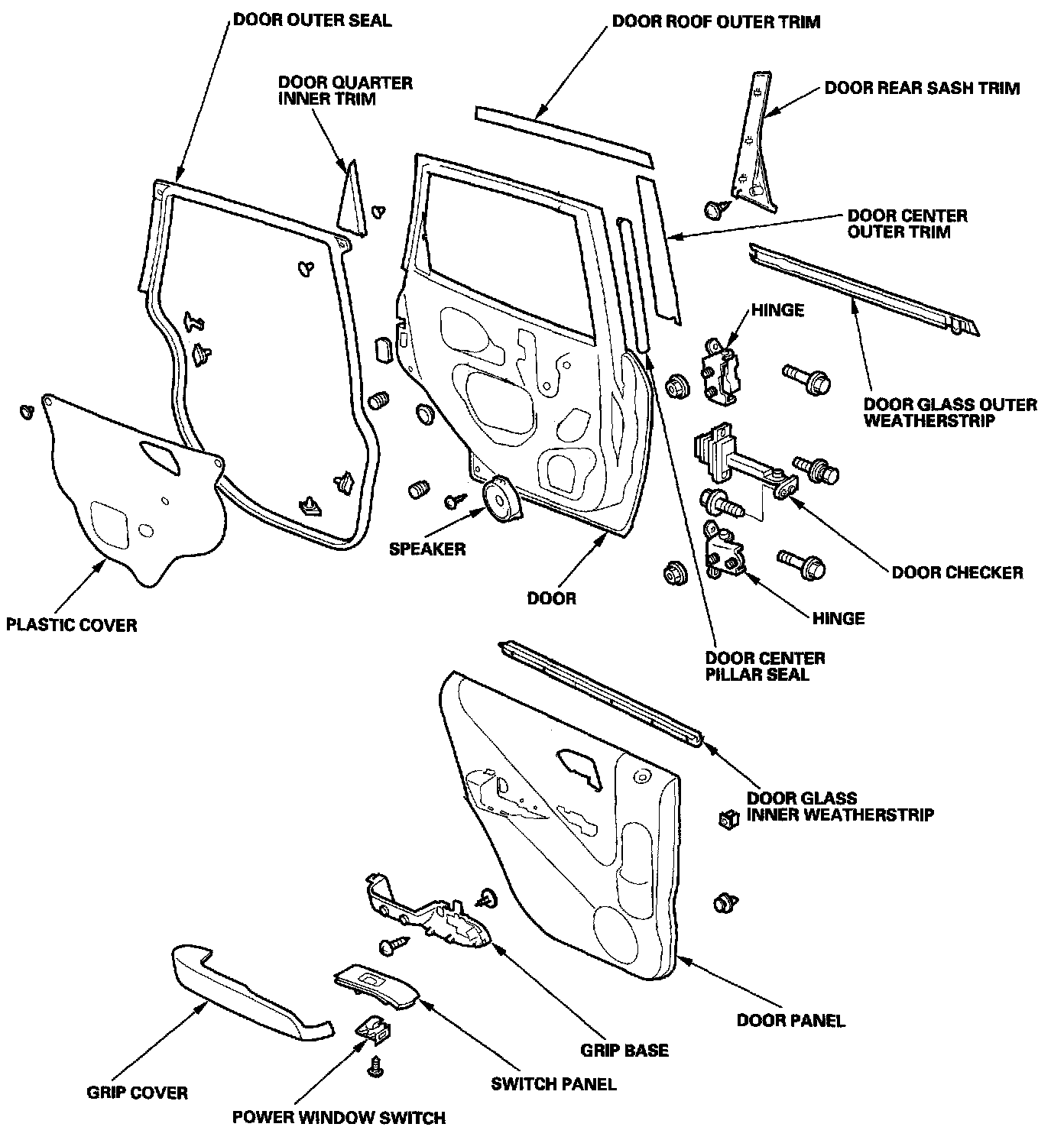

Rear Door Component Location Index:

Power Windows Component Location Index:

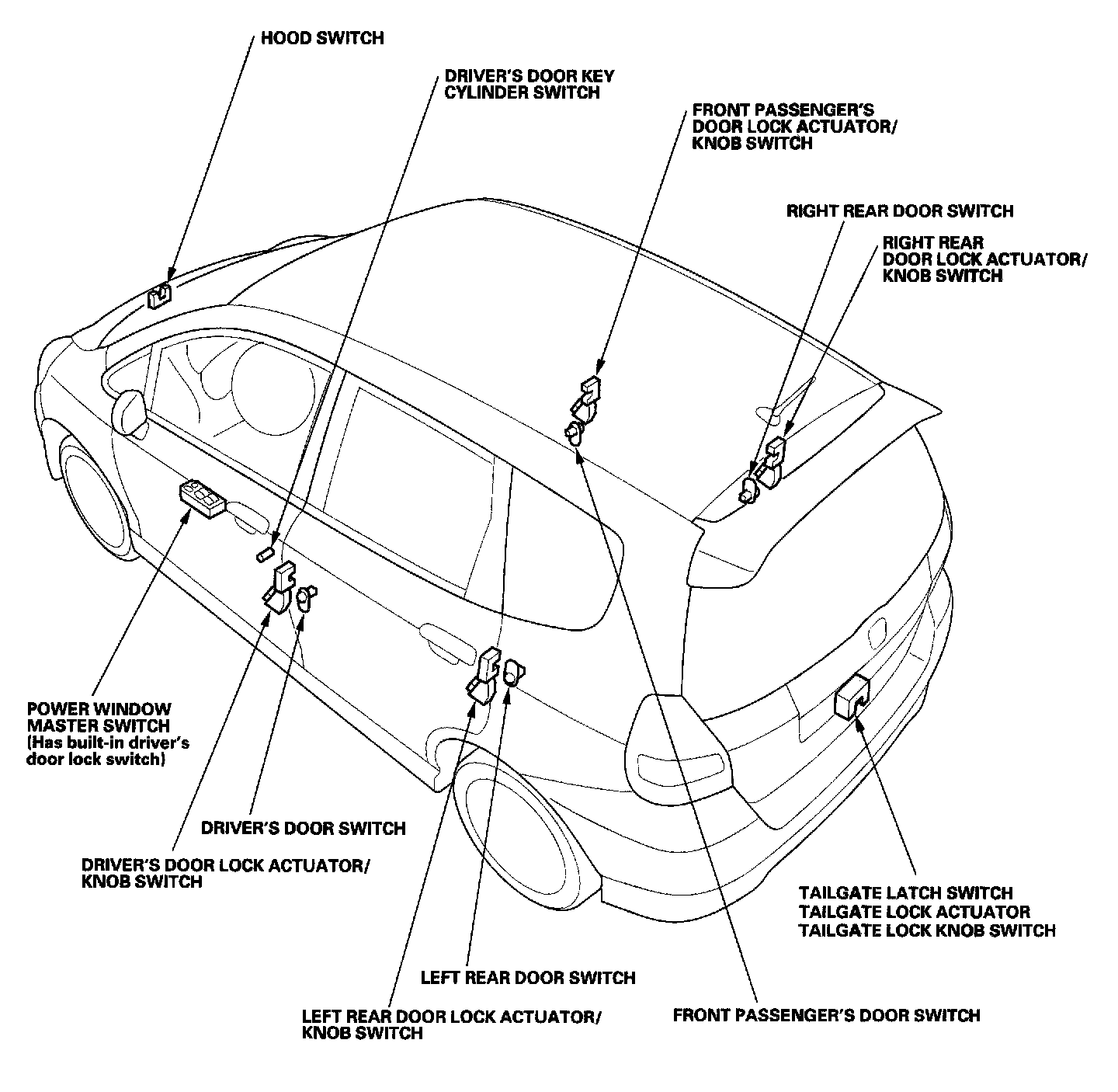

Keyless/power Door Locks/security System Component Location Index:

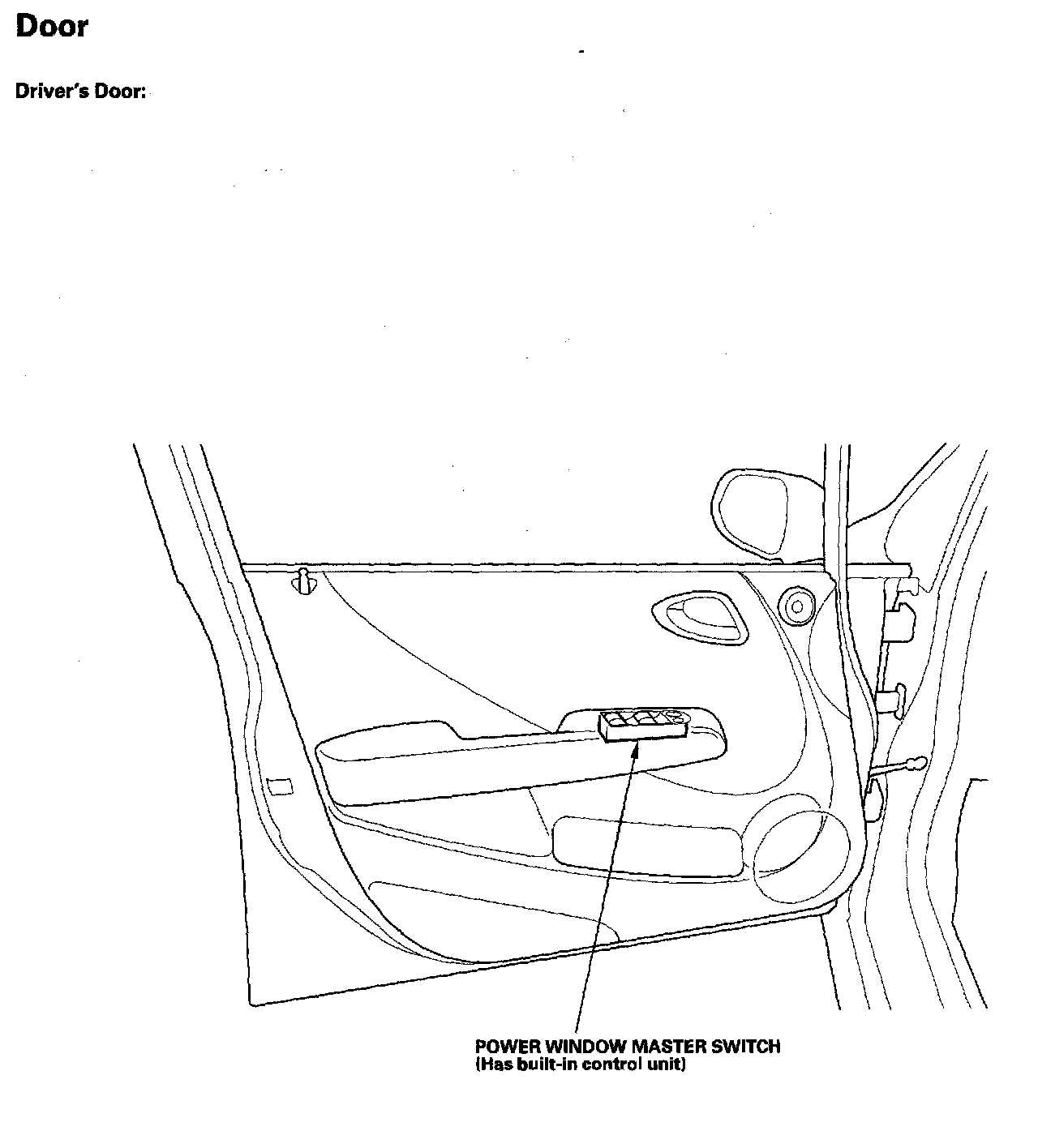

Relay And Control Unit Locations Door:

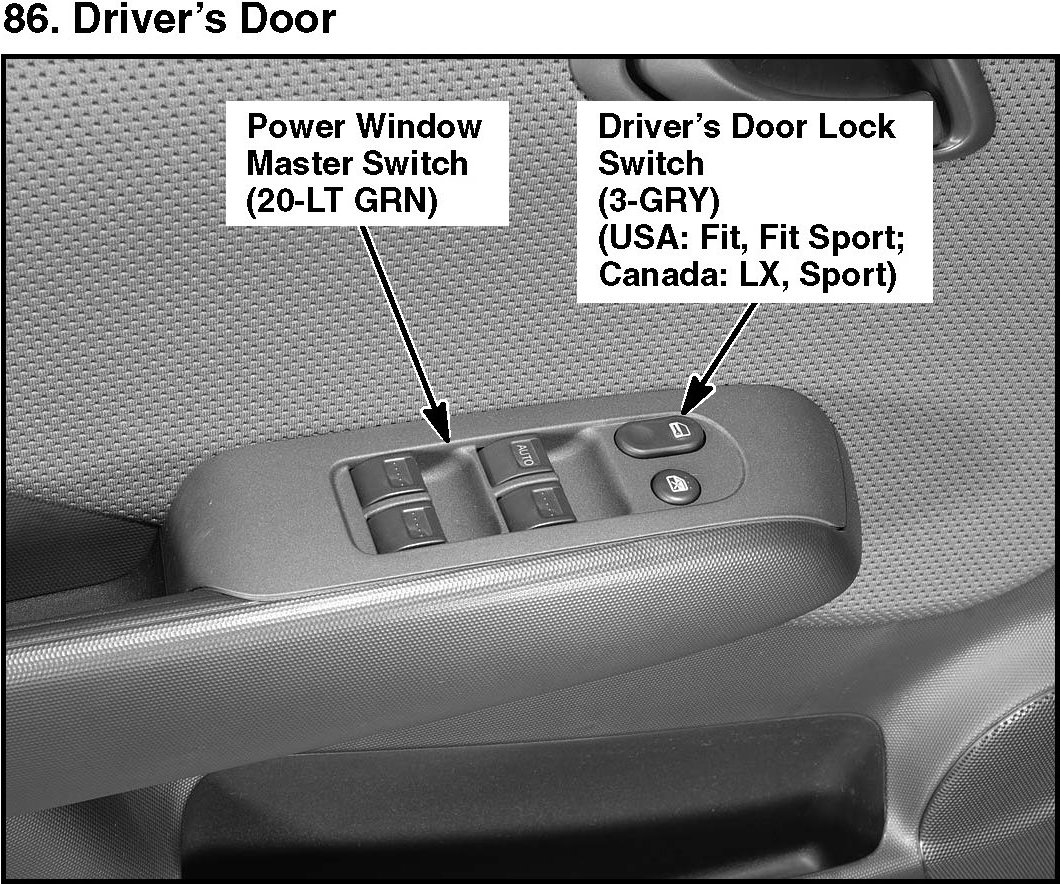

86. Driver's Door:

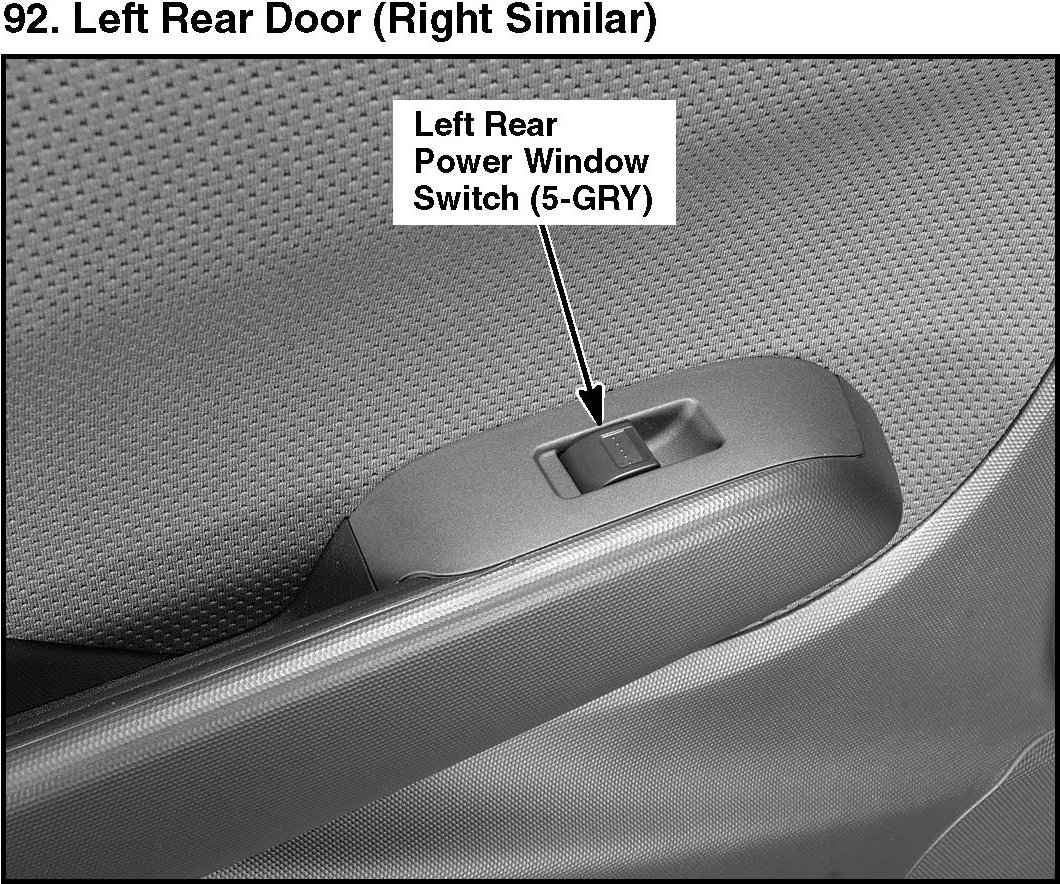

92. Left Rear Door (Right Similar):

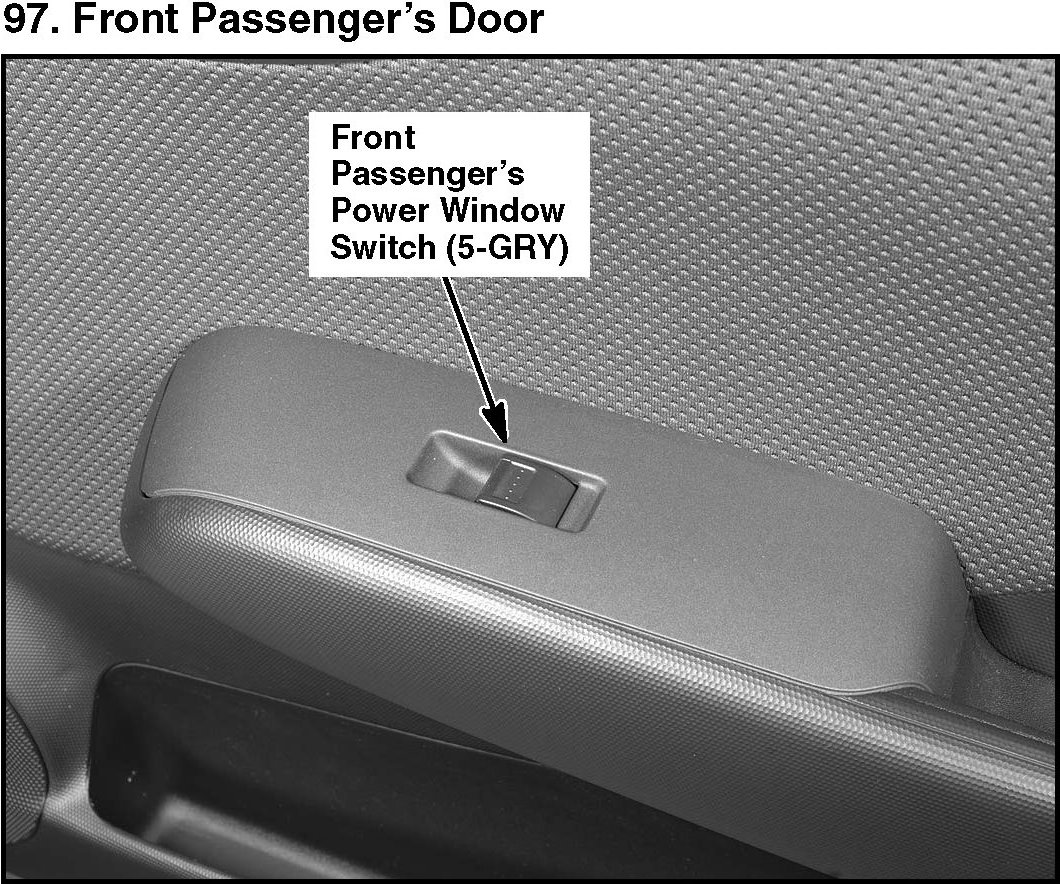

97. Front Passenger's Door:
