Wiper/Washer Switch Test/Replacement

Wiper/Washer Switch Test/Replacement

1. Remove the steering column covers.




2. Disconnect the 14P connector (A) from the wiper/washer switch (B)
3. Remove the two screws, then pull out the wiper/washer switch.




4. Inspect the connector terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.

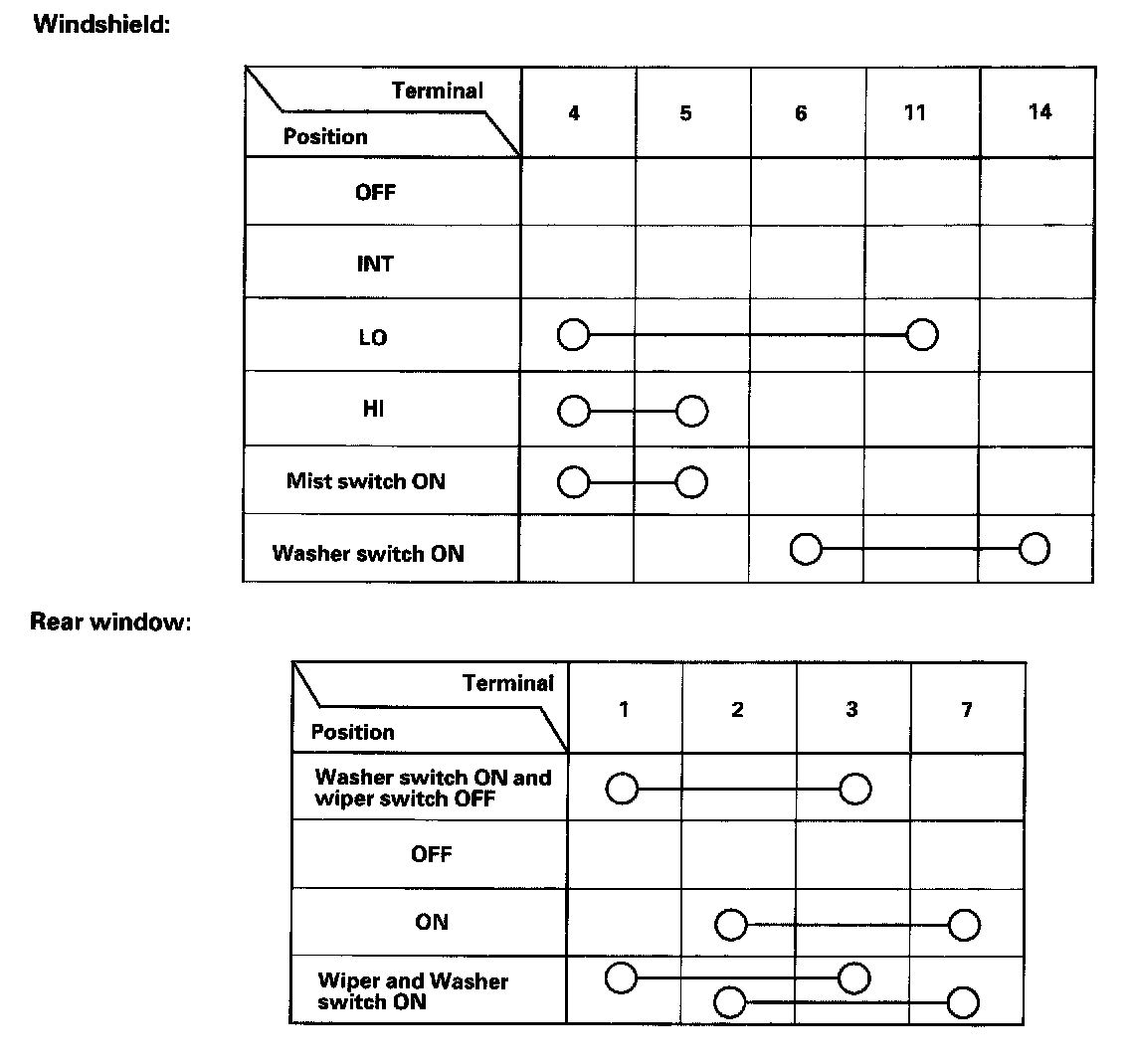

- If the terminals look OK, check for continuity between the terminals in each switch position according to the tables.
- If there is no continuity, replace the switch.
- If the input test proves OK, Go to the wiper motor test.
