Component Location Index

J35A6 engine, J35A7 engine ('07 model)

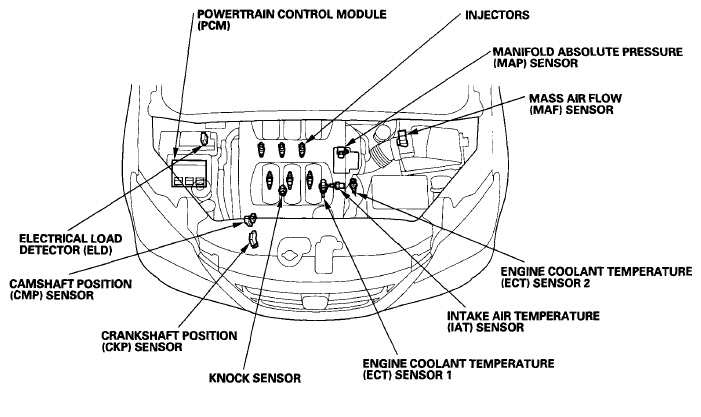

Fig 1: Identifying PGM-FI System Components

Courtesy of AMERICAN HONDA MOTOR CO., INC.

J35A7 engine ('08-10 models)

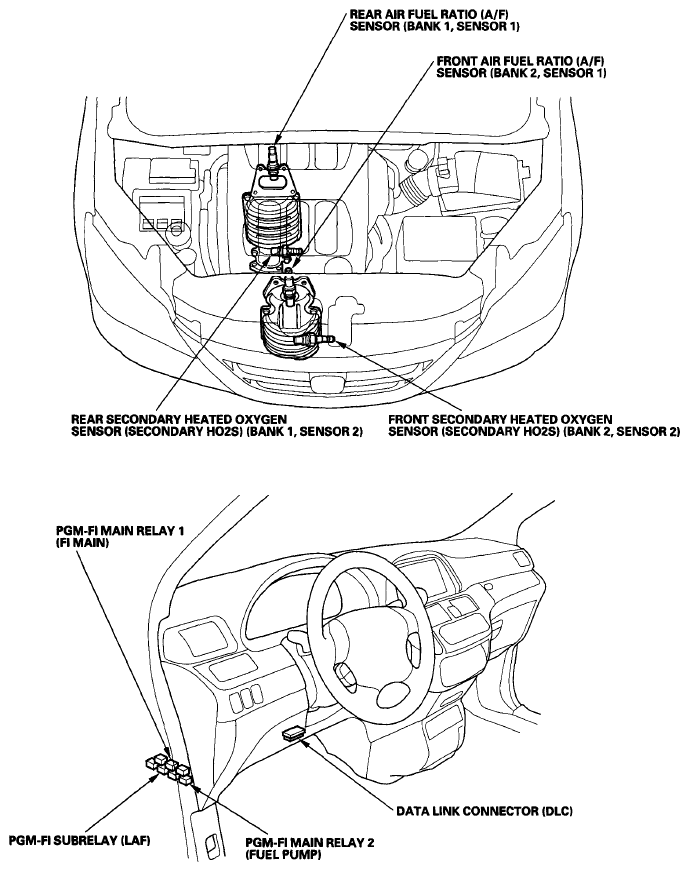

Fig 2: Identifying PGM-FI System Components (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: Identifying PGM-FI System Components (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
