System Description
>>
Navigation Unit Connector for Inputs and Outputs
>>
'07 model
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
'07 model

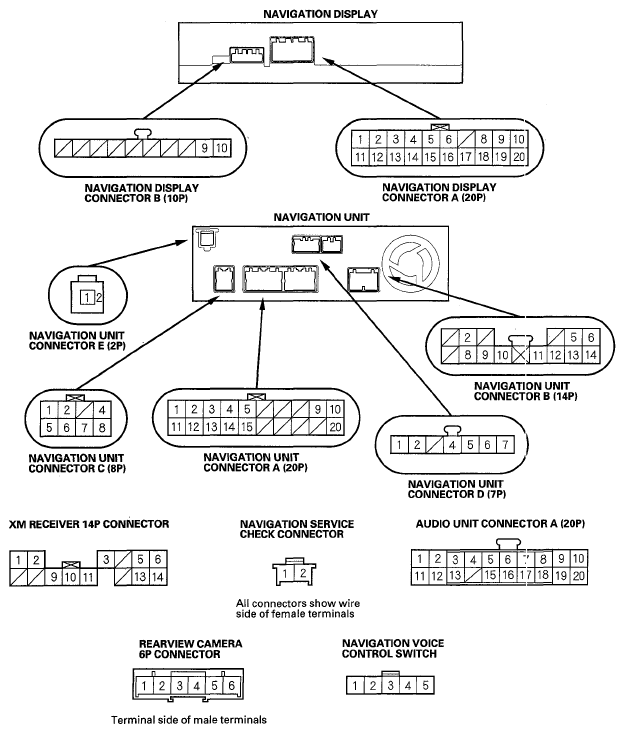

Fig 1: Identifying Navigation Unit Connector For Inputs And Outputs (07 Model)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
